CASE MODEL VAC-VAO-VAI
PARTS
Due to the Large number of available Case VAC/VAO/VAI
parts, the available parts are shown on the following pages:
Case VAC/VAO
Engine Parts
Case VAC/VAO Drivetrain
and Transmission Parts
Case VAC/VAO Wheels,
Axles, and Steering Parts
Case VAC/VAO Sheet Metal,
Air Cleaner, Radiator, Seat, and other external parts
Case VAC/VAO Hydraulic
System Parts
Case VAC/VAO Electrical
System Parts
This Page contains
CASE MODEL VAC/VAO/VAI
Transmission and Drivetrain Parts
VT41 cover that is used when there is no belt pulley
assembly, $20
=
Belt pulley assembly with no pulley, turns freely,
bevel gear is in good condition, VT63 casting number on housing,
$35
-
Complete pto assembly #2, works well, no broken teeth,
shifter works correctly, ready to bolt on and go to work, $100
-
Complete pto assembly #1, works well, no broken teeth,
shifter works correctly, ready to bolt on and go to work, $100
-
Complete pto assembly #3, works well, no broken teeth,
shifter works correctly, ready to bolt on and go to work, $100
PTO engaging lever and bracket, $15
-
-
Plate that bolts to pto assembly and shield, $8
Rear transmission cover when pto is not installed,
$20
Drive shaft, good splines, $30
Coupling for drive shaft, $5
VT154 Torque tube with pedals, no beaks or repairs,
$50 (170 lb)
Torque tube with pedals, good condition, $50 (170 lb)
Later style torque tube, no pedals, $40
VT620 Torque Tube, $50
Pressure plate, $30, clutch disk, may need relining,
$10
Throwout bearing, $22.50
Yoke for throwout bearing, $40
VAC Clutch rod, $10
VAO clutch rod with pivot, $15
--
VAO clutch link, $15, your choice
Clutch rod pivot for VAO, $7
Clutch rods with pivot for serial # 5570000 and up,
$20
VT-7, throwout bearing carrier, $10
VT208 main shaft cap, $10
Dipstick for transmission, $7
VAO transmission cover, very good fork and rails, some
free play in lever movement, $20
-
VAO transmission cover, very good fork and rails, $40
-
VAO transmission cover, very good fork and rails, $40
-
VAC transmission cover, good fork and rails, good lever,
$40
-
VAC transmission cover #5, good fork and rails, good
lever, $40
-
VAC transmission cover, good fork and rails, lever
is shortened, $20
VTA353 Reverse idler gear and haft,good condition,
$75
VT3410, Countershaft and drive pinion with bearing,
$25
VT2061 Adjusting nut, countershaft, $10
VT5155 gear, 17T/38T, for later VA tractors, $35
VT5314 18T gear used on tractors above serial # 557000,
$25
VT3418, Countershaft gear 35T, $25
VT3417, Countershaft gear 29T, $25
VT3416, Countershaft gear, 32T, $25
VT3413, Countershaft gear, 20T, $25
VT160 32T oil slinger gear, the best of the bunch,
$70
VT160, 32T oil slinger, this gear is usable but the
edges of the teeth are worn on one side, no broken teeth, $45
VT3407, Gear, mainshaft, first and third, 14T/20T,
$25
VT3405, Gear mainshaft, second and fourth, 17T/29T,
$35
VT3400/VT4664 Main drive shaft, $25
Differential assembly with shaft, used with disk brakes,
$35
Differential side gears used with disk brakes, both
left and right are available, $25 each
Left and right differential side gears used with drum
brakes, both sides available, includes carrier housings, $40 each,
excellent condition
Differential assembly with shaft, used with drum brakes,
$35
Differential from a VAI with drum brakes, $35
Disk Type Brakes:
Carrier housing for side gear, $10 each
Metal shim for carrier housing, $2 each
Shown above are trasmission parts. More parts are available, too
much to list individually, so email with your needs.
VT169, $15
Brake disk, used, will need new lining, $4 each
-
VT168 Brake housing with internal expanding parts,
$30 each complete, both LH and RH available (can ship flat rate
box)
Plate at brake lever, $5
Brake lever spring, $8
-
Branke return spring, $6
VAC brake rod, $10
Drum Type Brakes:
-
-
Brake shoes with brake cover and operating mechanism,
$75 each
-
VTA2805 brake drums, $30 each
-
VT5095 brake nut with washer, $10 each
Right hasnd or Left hand differential side gears used
with drum brake, $30
Carrier for differential side gears used with drum
brake, $10 each
Brake spring and anchor for drum type brakes, $8, two
available
Complete set of VA pedals for serial # 5570000 and
higher, $45

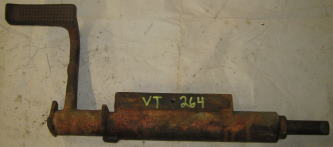

VT264 mounting bracket for VAO pedals, $10
VAO LH brake pedal, $10
39 1/2" VAC axle, $50, includes both bearings,
42lbs.
VAO, VAI axle, $50 (32 1/2" long, 32 lbs.),
Axle nut and washer, $6
66 tooth bull gear, casting # VT3422, $35 (four available)
Complete later ear axle housing with VAO axles, $60
Complete VAC rear axle housing, $60
Complete VAI rear axle housing, one is for later Eagle
hitch, the other is an earlier casting for no Eagle hitch, $60
VAC Transmission case, $40 (165 lb)
VAI Transmission case, $40
Back cover plate VAI, $10
