John Deere Model M Hydraulic and Implements
Implements:
M2 Plow, has been converted to
a single bottom plow by removal of one bottom, $150 (disregard
the black pipe holding it up)
Mounting parts for
implements:

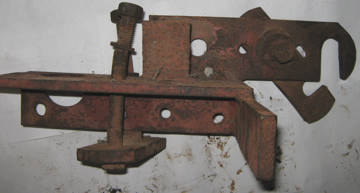

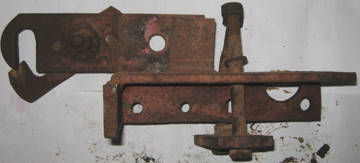

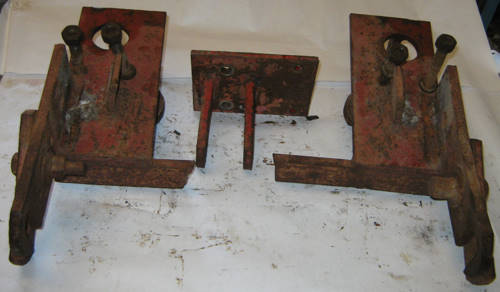

AM690T Left hand implement bracket, $17
AM691T RH implement attaching bracket, $10 each (sorry,
no left hand)
M1397T and M1398T implement attaching brackets, $25/pair
Special nut with handle, used on implement attaching
bracket.one available, $10
Three Point Assembly:
-
Aftermarket three point hitch attachment that bolts
onto existing drawbar and uses existing lift arms. Top link bracket
mounts over the belt pulley hole, Right hand photo shows setup
before it was removed. $125, can ship UPS
Top link bracket that attaches over the belt pulley
cover, $10
Hydraulic system
parts:
-
M1067T blank cover used when the hydraulic pump is
deleted, $20
Hydraulic pump coupler to camshaft gear, $20
-

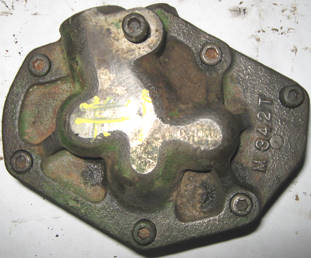

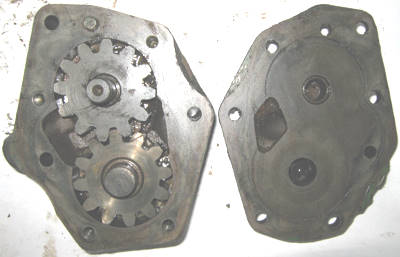

Front, rear and inside views of an early M hydraulic
pump #1with M342T cover and M 341T rear cover.Inside surfaces
show little wear, bearings are good, $125
-
Front, rear and inside views of an early M hydraulic
pump #2with M342T cover and M 341T rear cover.Inside surfaces
show little wear, but the oil seal and one needle bearing will
need to be replaced. Priced accordingly at $50
-
AM1317T Oil resevoir for MC, some dents, but no leaks,
$40
-
AM1315T (Body is casting # M1302T), plunder moves freely,
$60
-
AM1328T pipe with fitting, $25
M343T straight connection for AM1328T, $10
-
AM1329T pipe with fitting, $25
M344T elbow for AM1329T, $10
AM1319T, Breather with bayonet oil gauge, $15
-

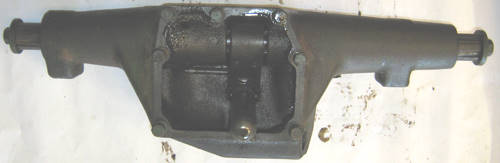

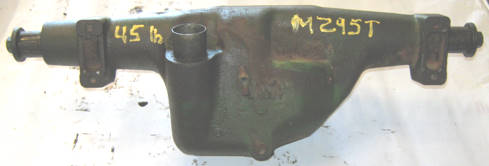

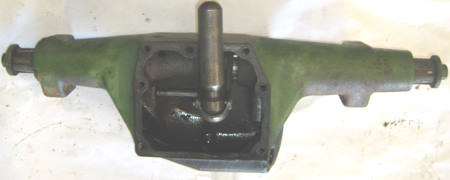

M295T rockshaft housing #2,complete with rockshafts
and operating parts, no breaks or repairs, in excellent condition,
$120
-
M295T rockshaft housing #1, complete with rockshafts
and operating parts, no breaks or repairs, in excellent condition,
$120
1 1/4 inch knob with 3/8-24 threads used on many levers,
like new, $10
-

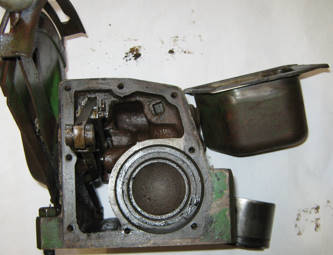

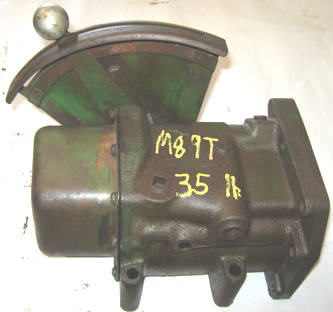

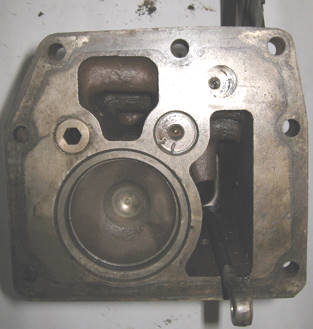

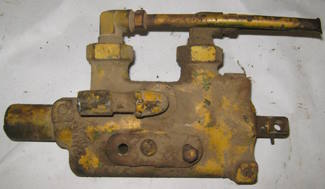

M valve control #1, complete with M289T housing, quadrant,
piston, and all operating parts, excellent condition, $120
-
M valve control #1, complete with M289T housing, quadrant,
piston, and all operating parts, excellent condition, $120

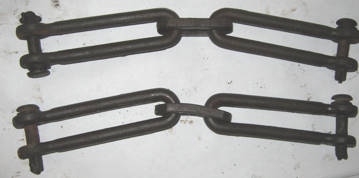

AM470T Lift chain for M, $20
M1500T lift arm, $20 each
M1500T Individual lift arm with lifting link, $22.50
each
M556T Individual lift arm, $15 each
M556T Individual lift arm with lifting link, $20 each
M557T washer, with lock washer and cap bolt to hold
arm onto rockshaft, $5
-
Oil filler cap for hydraulic system, no dents, $16
=
Oil filler cap for hydraulic system, slight dent, one
included free with any parts order
Linkage, $10
M554T, connecting rod, $10
AM485T crank arm, $10
M551T rockshaft, $10
Hydraulic piston for all M or MT, $20
Clamping set for hydraulic pipes, $9
Clamp set, $15
Hydraulic lines for M below serial # 32884
AM784T, $25
AM785T, $25
AM782T, $30
AM783T, $25
M1161T Nut (On AM783T line), $9
M568T and M566T hydraulic pipes with fittings and clips,
$10 each
Hydraulic lines for M above serial # 32884; also MT
and some MI
M1205T: $25
AM1450T: $25
AM1208T oil line: $25
M1153T: $25
AM1448T oil line, $25
AM1122T: $25
Smal and large clamps for lines inside dash, $4 each
AM1123T $25 each
M1160T $25
M1160T for MT, $25
Shortened low pressure pipe with fitting for hydraulic
hose, $5
AM1151T, $8 (Steel)(May not be an original)
AM1151T (brass), $8
AM1087T, $8
AM429T Elbow at AM782T, $16
M1370T, $8
M1350T Union, $8
AM1121T coupling, $10
-
-
AM1110T (Casting # M1097T). MT
Cylinderr housing and Valve, with M2041T pistons and all other
internal parts, $75
M1069T, M1070T, and M1071T lift arms for MT, $18 each
AM1077T, hollow rockshaft, $10
