Parts for John Deere Model H



John Deere Model H Clutch, Transmission, Rear axle and Drive train Parts

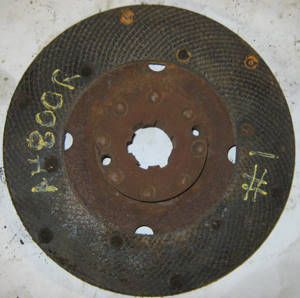

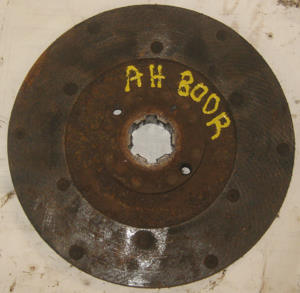

AH800R Clutch disk with good splines and good facings, $60
-

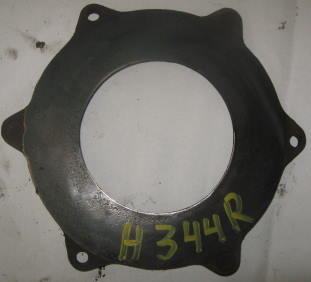

H344R clutch adjusting disk, good condition, $16

\

H344R clutch adjusting disk, will need cleaning and polishing, $9

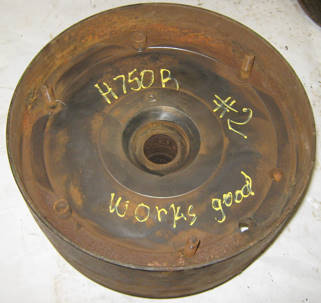

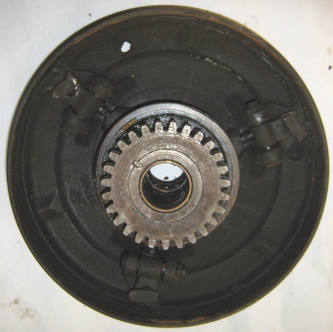

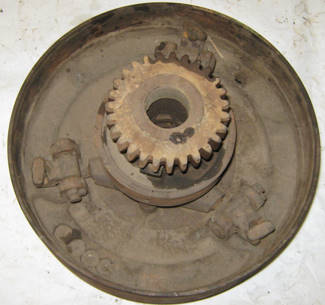

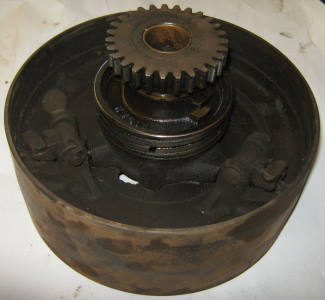

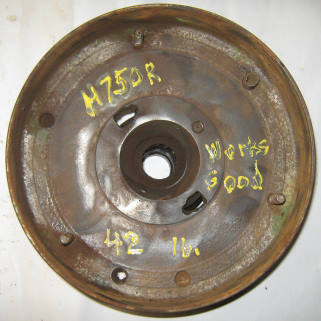

AH1104R Complete clutch (H750R casting number on pulley), excellent condition, $100
Individual parts available--email with your needs

- -

AH1104R Complete clutch (H750R casting number on pulley), excellent condition, includes operating bolts, $125

H334R pulley bushing, $5

B1363R 7/16" Adjusting nut on operating bolt, $4

B145R clutch dog, $20 each

B146R Clutch pin, $4 each
B144R Clutch toggle, $4 each

H358R Shaft lever, $8

H354R Shaft, $10

B169R Snap ring, $4
24H233R Washer, $1
5/8" Nut, $1

-

79R Spring for clutch shaft, $4

B180R Clutch lever pivot bolt and nut, $7

H364R Clutch rod with B175R yoke, $8


AH606R (H359R) Pulley brake, $15

H363R Pivot pin, $7

H361R Bearing, $8

H353R Fork, $14

AH607R Clutch lever, $15

AH605R Dust shield, $15


H346R First reduction gear cover, $25

H165R First reduction gear, $20

H253R Cover, $9

C1438R spring on throttle rod, new, $7

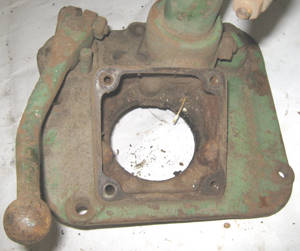

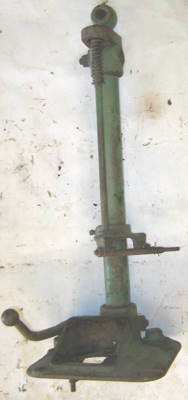

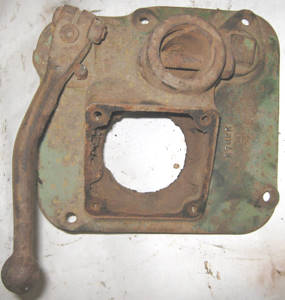

H721R Shift quadrant, $12, similar to above

Metal knob for shift lever, $8

Pto lever, $10

H612R Crank with spring, $7

AH1207R (H589R) PTO pinion gear, 12T, $20

JD7689R bearing, $10

PTO Assembly for H, no flipper guard, with AH711R power shaft, H598R pinion, housing, and associated parts,$50

PTO Assembly for H, with H753R flipper guard, with AH711R power shaft, H598R pinion, housing, and associated parts,$60

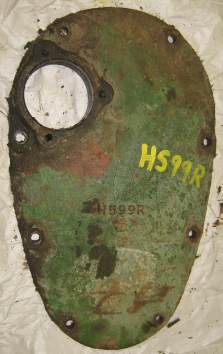

H599R rear cover, no breaks or repairs, $50

H327R Plain cover used without pto, $40

H705R Shaft bearing, $12

H703R shift fork, $20

H704R shift fork, $25


H819R spring $6
F3362R (B375R) Pawl $10

Shifter fork shaft, $10

H708R Power shaft shifter fork, $15

H708R Power shaft shifter fork with brazed repair, $5

-

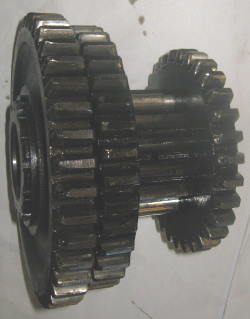

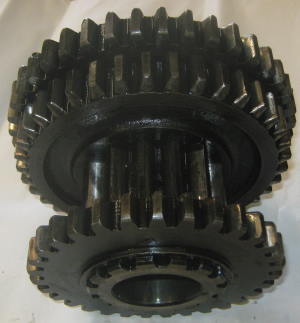

AH1189R Gear cluster, including H143R, H144R, H145R, and H146R gears / pinion, very good condition, bo breaks or repairs, $145, your choice

H150R Thrust washer, $7, two available

H151R Lock plate, $4


H148R countershaft, $15
JD79125R bearing, $10
Spacer, $1
Washer $1

AH877R, 16 spline sliding gear shaft, $20

10 spline sliding gear shaft, $30

H786R Pinion low and reverse, $15, has small chip on one tooth but should be usable

H787R Pinion, high and intermediate, $50

AH1201R reverse gear with bushings, $25
H122R Reverse shaft, $9



AH1196R pto gear and H789R collar, $55

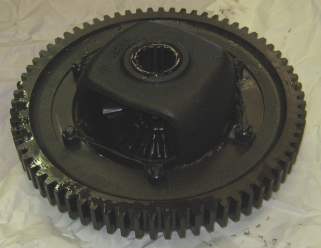

H differential assembly with H957R and H958R casting numbers, complete and good condition, $45 (62 lb)

H785R cover for sliding gear trans. shaft, $6

H163R Metal shim, $2 each

H784R cover for sliding gear trans. shaft, $20

-

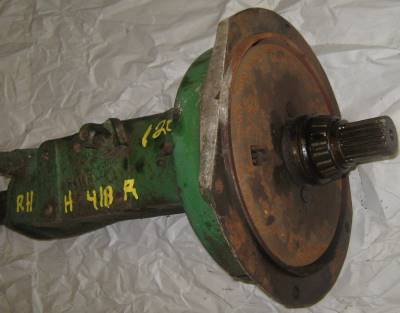

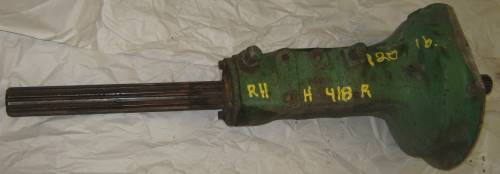

Complete Right hand rear axle assembly, H418R,$110 (can ship UPS, 120 lb.)

-

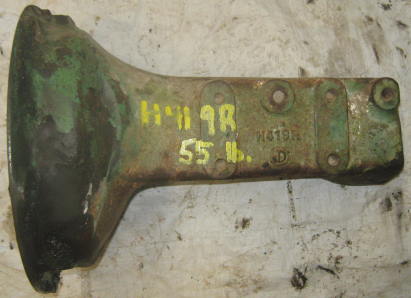

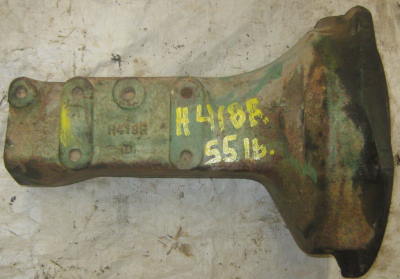

Rear axle housing, either side H418r or H419R, $40, can ship UPS

Good uncut H axles, $60 each, 42 lb each

H631R Felt retainer

H441R Snap ring, $7

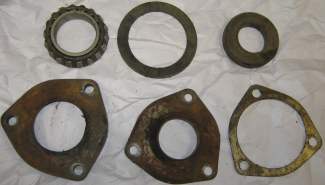

JD8102R or JD 7395R bearing, $8 each
H445R OIl seal retainer, $3
H425R bearing cover, $2
H424R dust excluder, $12.50
Steel shim, $1



Brake shoe, may need new ining $10
Brake spring, $4
Adjusting pin, $15
Cam, $6

A152R Brake pedal shaft, $12

A134R adjusting pin, $15 each

Brake adjuster, $14

Brake drum, $20

H435R Brake lock, no breaks or repairs, $24 each, several available

Brake pedal, $12 each, either side

H front frame, very good condition, $50 (can ship UPS, 108 lb)

H serial tag # 45176, $15
