John Deere Model D Parts

Both unstyled and styled D parts

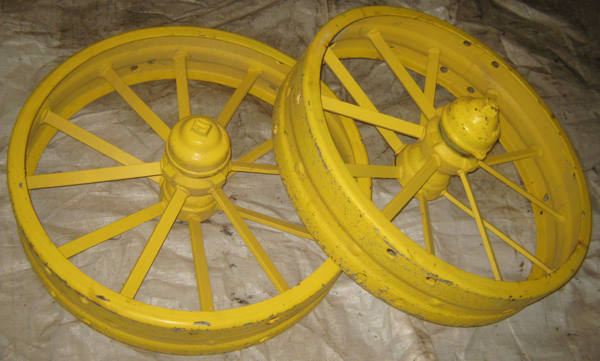

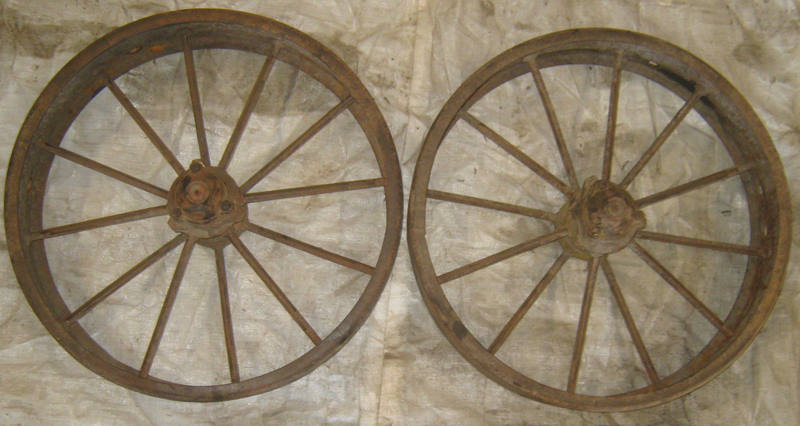

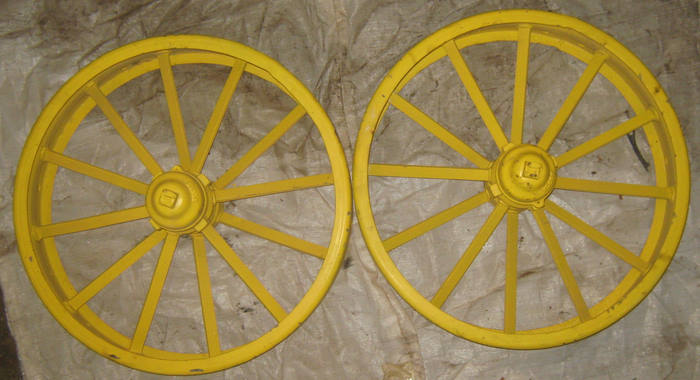

F&H HA510A casting number wheels used on D late 1928 and 1929, 6 x 28, excellent condition, with correct hub caps, $900 for the pair, can ship UPS

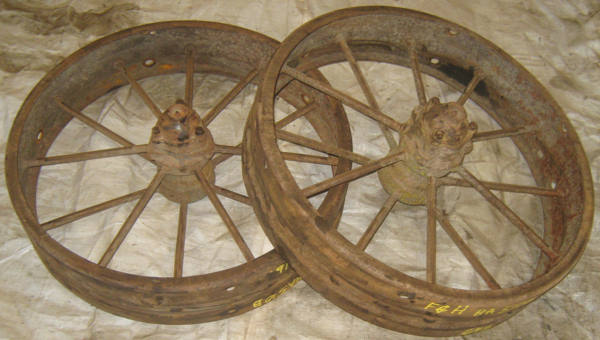

F & H HA510B wheels, 6 x 28, excellent condition, 5/8" diameter spokes, used 1930-1934, but will fit other years, includes bearings and hubcaps,$600 for the pair, can ship UPS

-

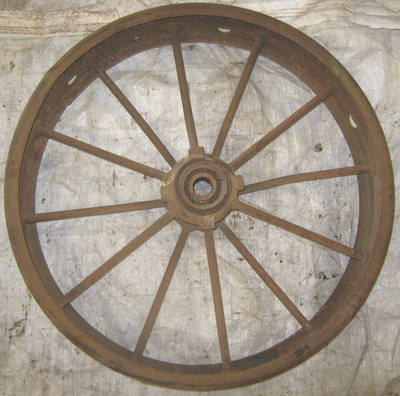

F & H HA510A wheel, 6 x 28, excellent condition, 5/8" diameter spokes, needs bearings and D327R hubcap (available and shown below), $235, can ship UPS

-

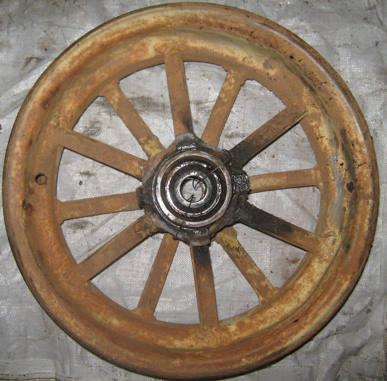

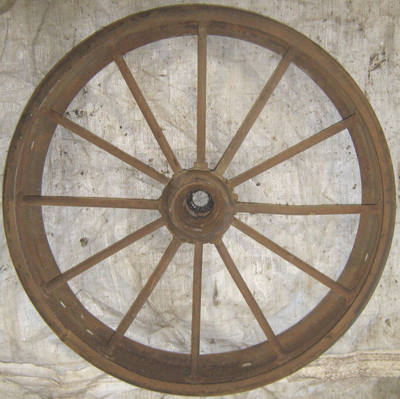

D, AR, AO wheel, 6 x 28, excellent condition, 5/8" diameter spokes and zig-zag pattern on hub, needs bearings and hubcap, $235, can ship UPS

28 inch diameter Guide band, set of four halves to fit two wheels, $125, can ship UPS

28 inch diameter Guide band, set of two halves to fit one wheel, band height is 1 1/2 inch but extension to make it 2 1/2 inch were welded on, $50, can ship UPS

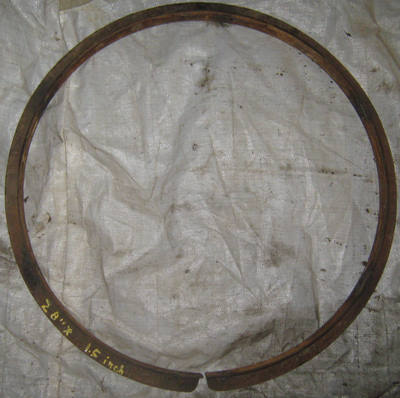

One piece guide band for 28 inch diameter wheels, 1 1/2 inch high, $45

-

=

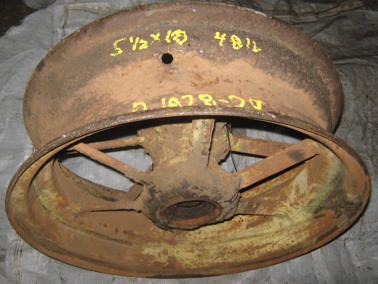

F&H HA510A casting number on cut off wheels used on D late 1928 and 1929, with 5 1/2 x 18 rims, rims usable as-is with some corrosion, includes bearings and felt retainer (one bearing may need replacement) $250 for the pair, can ship UPS

-

D327R Hub Cap, good threads, no breaks or repairs, $40, your choice

-

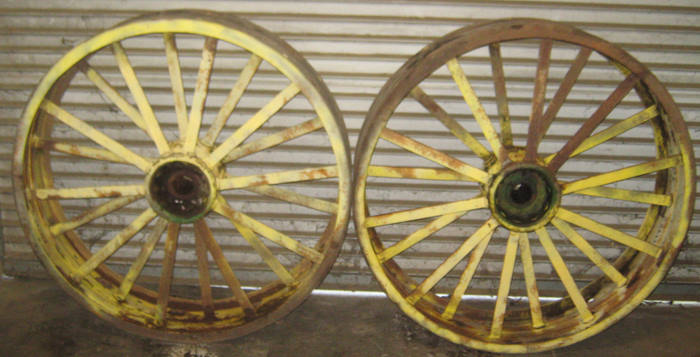

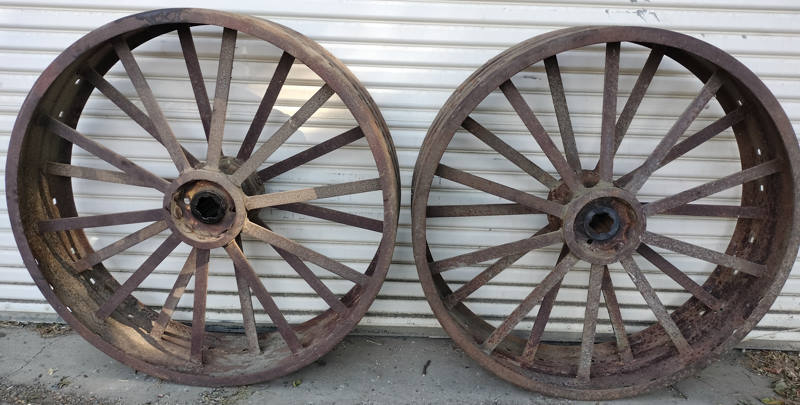

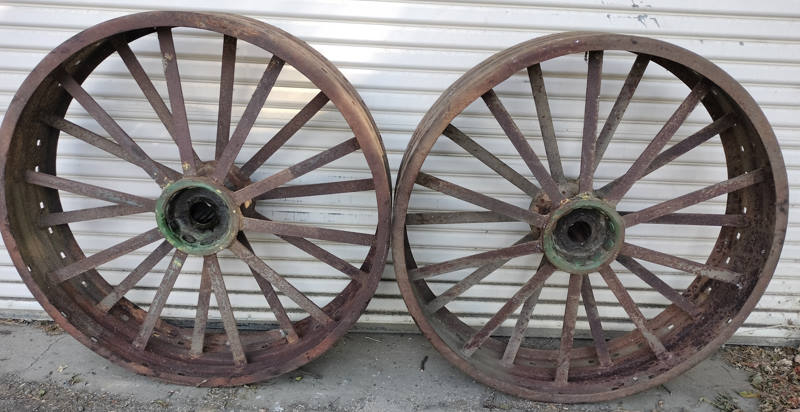

Front, rear, and spline views of 20 spoke D Wheels, 11 x 46, no breaks or repairs, Excellent splines, excellent condition, casting # F&H HA335A, 250 pounds each, can ship truck freight, $750 for the pair.

Front and rear views of 20 spoke D Wheels, 11 x 46, no breaks or repairs, Excellent splines, excellent condition, casting # F&H HA335A, 250 pounds each, can ship truck freight, $800 for the pair.sale pending

-

AD357R Rear wheel nut $25 each

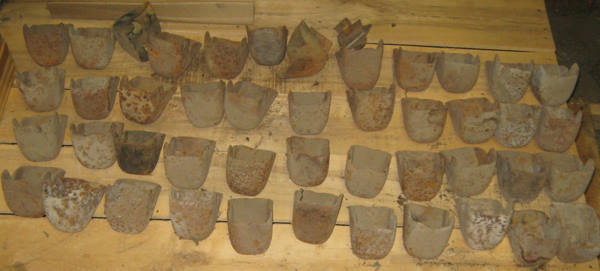

D1078R 5 inch Spade lug (AD2482R, Sub. AD2854R), Full set of 48 lugs (Representative 8 are shown in the photo), includes all backing plates, bolts, and nuts, used on all D's 30451 and up, $395

-

-

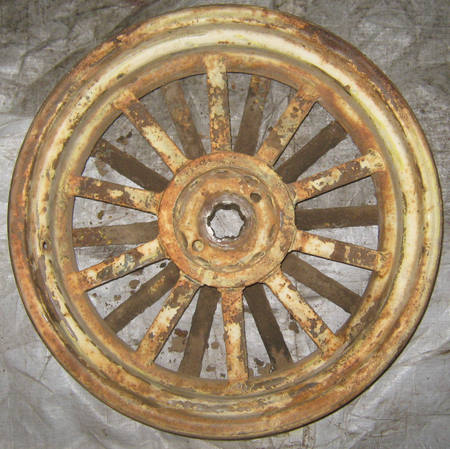

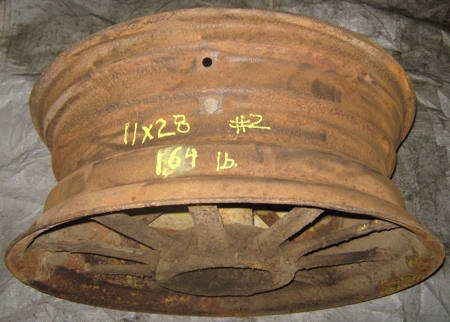

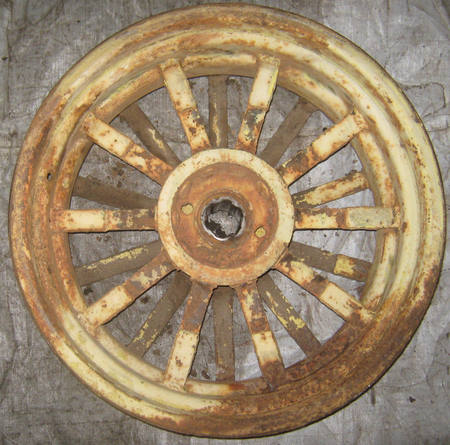

20 spoke D Cut off Wheels, 11 x 28 rims, Excellent splines, slight rim corrosion, no deep rust, casting # F&H HA335A, 164 pounds each, can ship truck freight, $250 for the pair.

-

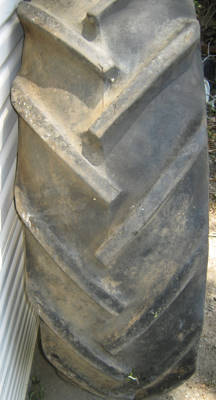

Nearly new Firestone 14.9-30 tractor tire, barn stored inside, dusty but no weatherchecks, $350 (around half the price of a new one!) 160 lbs

9/16-18 lug nut for rear wheels, $1.50 each or set of six for $7.50

9/16-18 lug nut for some front hubs used on AO, AR, and D hubs,stamped with R-(star), $1.50 each or set of six for $7.50

1/2-20 lug nuts for front wheels, $1.50 each or set of six for $7.50

D1032R spindle nut, good condition, $19

-

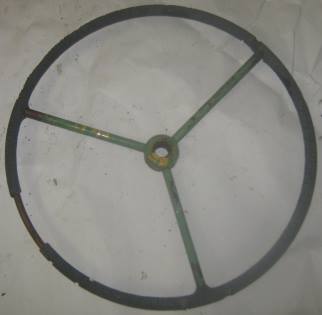

D61R Steering wheel, no breaks or repairs, $90, two available, your choice

764R Steering Wheel Handle with D557R Steering handle bolt (bolt is complete, but in worn condition), $60

D663R Steering shaft upper bearing, used on D 31280-109943, $30

D2410R steering shaft support $25

D1877R Upper steering shaft bearing, $10

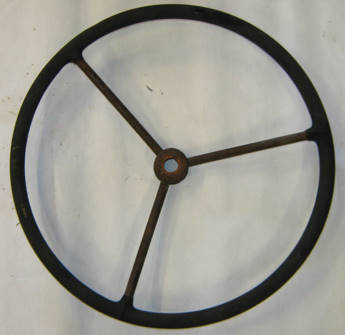

This steering wheel free with any order

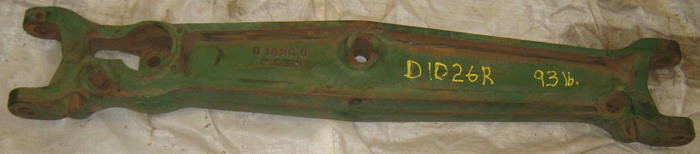

D1026R axle, views from both sides, a small piece around the pivot hole is broken off on both sides, axle is still usable and in great condition otherwise. $75, can ship UPS

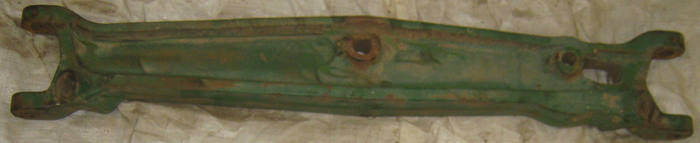

D1026R axle, nob breaks or repairs and in great condition $85, can ship UPS

-

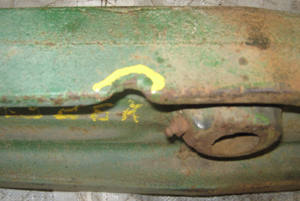

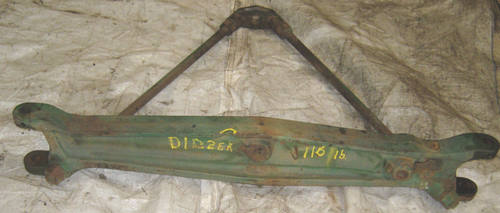

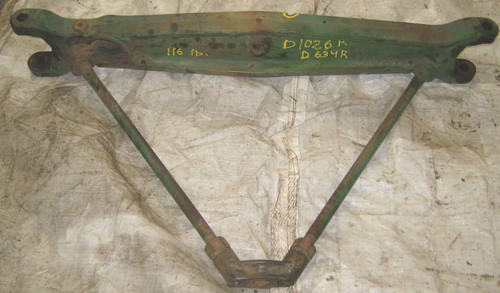

D1026R axle, a small wear spot as shown in yellow, in great condition otherwise. includes D1391R pivot and radius rods, $120, can ship UPS

D196R Front axle pivot pin, shows some wear, $10

D1701R Pivot pin, shows some wear, $10

D777R Spindle pin, $10

D1391R Radius rod pivot, no breaks or repairs, used on D 68880-109943, $35

D1391R Radius rod pivot, no breaks or repairs, used on D 31280-68879, $35

D632R 1" Radius rod, used on D 31280-109943, $25 each

D632R 1" Radius rod, used on D 31280-109943, $20 each

D1536R (AD2787R) Steering worm #1, used D 95900-109943, $70

-

D1536R (AD2787R) Steering worm #2, used D 95900-109943, $60

D191R Steering worm shaft, $25. your choice includes long key, used on D 30400-109943

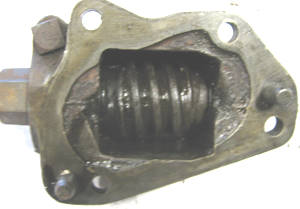

D485R, Steering worm cover, $75

D768R Steering gear cover, no breaks or repairs, $90

D768R Steering gear cover, broken as shown, $20

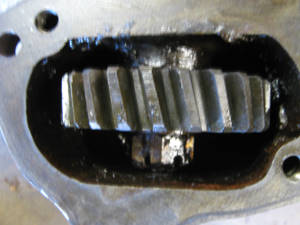

D1535R Steering Segment, used D 95900-109943, Excellent condition, good teeth, no breaks or repairs, $90, your choice

D524R Universal joint side bar, used D 30451-109943, Two bars with bolts, $25

D265T Universal joint block, no breaks or repairs, very good condition, $20

D1392R Front steering shaft. 38 inch long, used D 68880-109943, $20 usable with some rubbing wear at one spot, $15

D666R Rear Steering shaft, used D 31280-109943, $20

-

-

D631R spindle and arm, no breaks or repairs, $80, your choice



- -

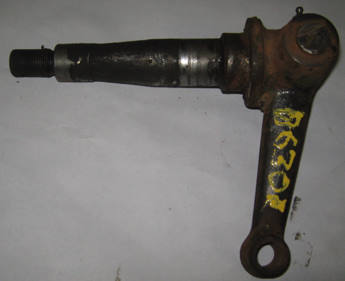

D630R Spindle and arm,no breaks or repairs, $75, your choice

-

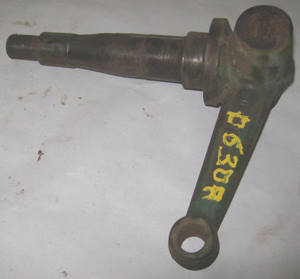

D630R Spindle and arm, has a break with a well done repair next to the pivot hole, $25

D777R Steering spindle pivot pin, $10, two available

D136R Steering spindle washer, $1 each, used on D 30400-109943

D156R taper bolt with nut, $6

D922R tie rod, good condition, $45, your choice

- -

D923R Tie rod adjusting pin, Good threads, good condition, $50, your choice

-

Two views of AD282R pivot plate, used 30400-68879

-

-

AD477R (AD477) Front end support (used on D 68880 and up), $90, no breaks or repairs, your choice, can ship UPS

D1702R axle with AD1415R Radius rod assembly, $160 (140 lb 45-30-9), can ship UPS

D196R Front axle pivot pin, shows some wear, but it is usable, $9

-

AD753R Drag link with all internal parts on both ends, $45

AD753R Drag link with all internal parts on both ends, $45

D1674R steering arm, $40

D1673R steering arm, $60

-

A1557R front wheel hub, used on AR, AO, and D tractors, note the well done brazed repair, $30, includes hub cap and bearings

AD1318R steering spindle, casting # D2637R, 2 available, $40 each

D156R taper bolt with nut, $6, two availble

D1701R Spindle pin, $15

A5325R Spindle thrust washer, $5 each

D1881R Spindle cap, $5 each

D1703R Tie rod with jam nuts, $25

D2526R rim clamp, $10 each; eight available

Special nut for D2562R rim clamp, $2 each

-

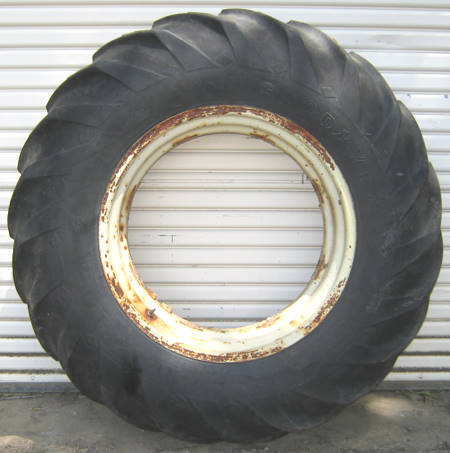

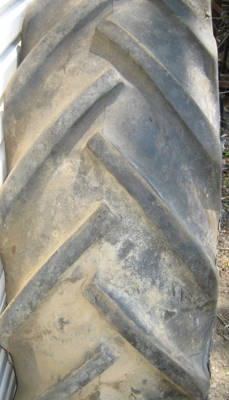

Usable but worn 14.9-30 tire with tube, $35

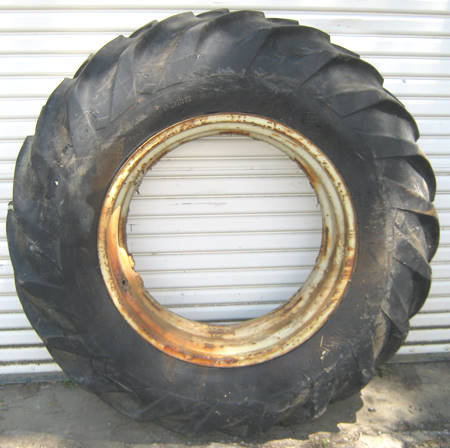

13-30 tire with good tube, $35

-

-

7.50-18 tire and tube, some weatherchecking, three available, Free if you pick it up here or if you pay for the UPS shipping cost
