John Deere Model D
Parts
Both unstyled and styled D parts
--
-
=

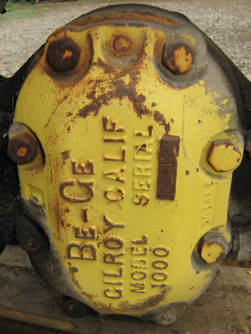

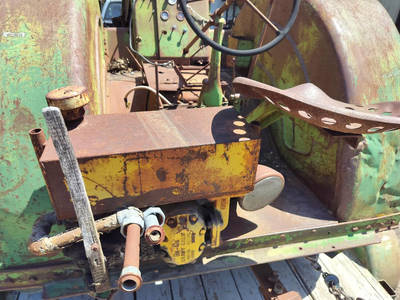

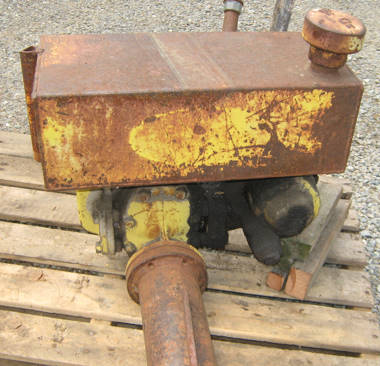

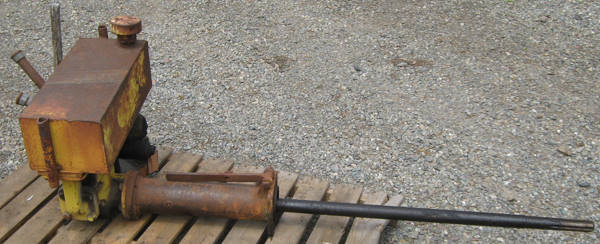

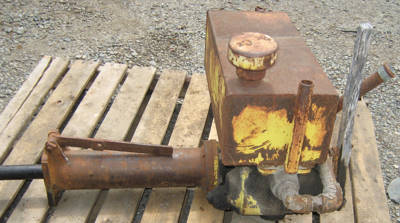

BeGe Hydraulic unit for Model D tractors. Mounts in
place of the tractor's pto shaft. It is attached to the pto flange
at the rear of the tractor and is controlled by the front lever
on the unit. Turns freely but not tested on a running tractor.
BeGe was a company based in Gilroy California that made hydraulic
systems for all makes of tractors (mostly Caterpillar) before
the time that hydraulics were included from the factory. Very
few units were made specifically for the Model D. The company
was successful and built well engineered components. They were
bought out by the Oliver corporation and were active up to the
1970's when the the demand for this type of product was waning.
This unit weighs 180 pounds and can be picked up here or shipped
truck freight. Make your D into a unique display for only $400.
-

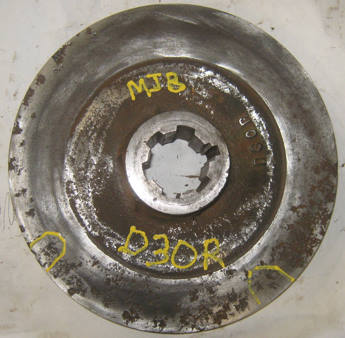

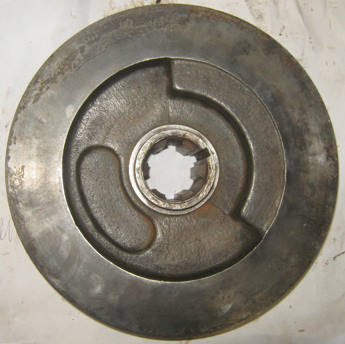

D30R Driving disk, very good splines, one side has
two very small cracks circled in yellow and some pitting on one
side, $75, used on early D
-

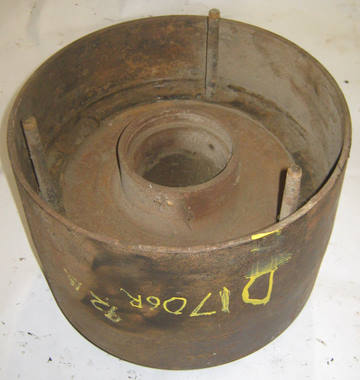

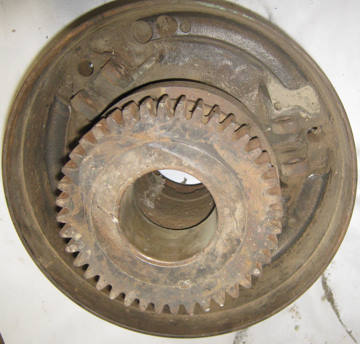

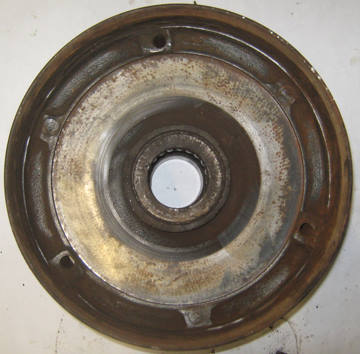

D1706R Clutch pulley with D1707R gear, good bronze
collar, but no roller bearing, Used on D 109944 and up, $100
-
-

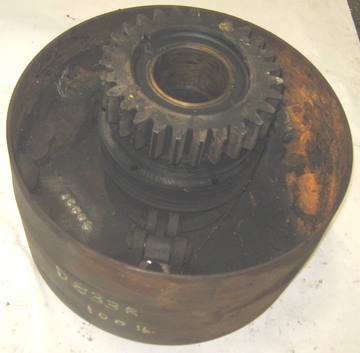

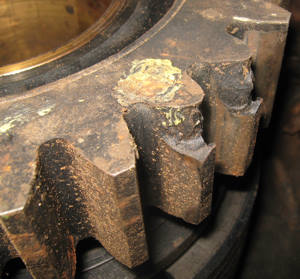

D833R Clutch pulley with D661R gear (note two chipped
teeth), good bronze collar and roller bearing, Operating sleeve,
clutch dogs, and toggle move freely as they should, Used on D
31280-109943, $100
C74R Clutch dog, $16
C434R Toggle. $5
Pin, $3
D377R Clutch release spring, $5
D203R Clutch operating bolt
-
-

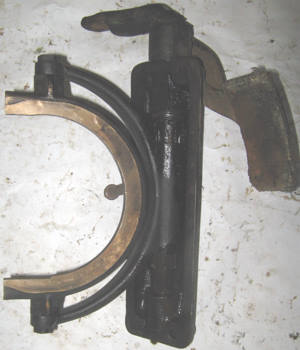

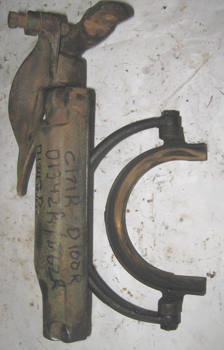

D1342R Clutch fork bearing, D1343R Clutch Fork Shaft,
D62R Pulley Brake, C171R Clutch fork with D100R Clutch collar,
all parts in very good condition with minimal play pulley brake
to fork and fork to bearing and minimal wear on bronze collar,
$180
D1342R Clutch fork bearing, $20, similar to above

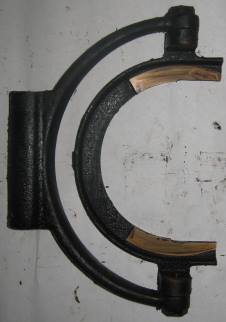

C171R Clutch Fork with D100R Clutch Collar, Collar
does show some wear, but it came from a running tractor and is
usable, $90
D2112 R clutch lever and D266R control quadrant, $25
D211R Clutch lever, $20
Controls, with D226R control Quadrant, $40
Control, with D2027R control Quadrant, $30
D216R Clutch operating rod with yoke, used D 30400-114691.
$25
D2029R Clutch operating rod, used D 114692 and up,
$20
AA1595R, Clutch lever, $10
D2031R Clutch Lever Pivot, $8

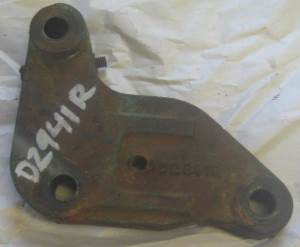

D2941R Control Quadrant, $15
D2941R Control Quadrant with AA1595R Clutch lever,
$25
-
-

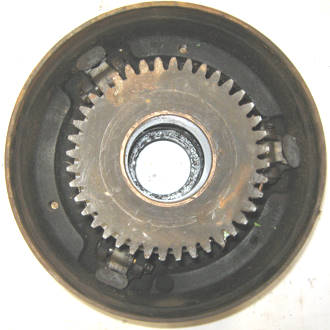

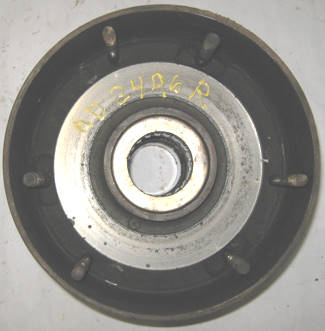

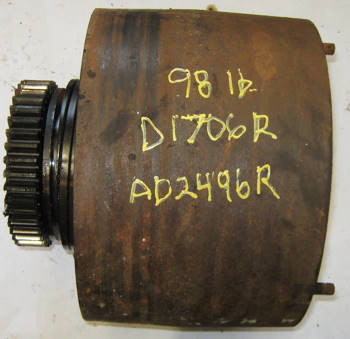

AD2496R, D1706R pulley with all dogs, toggle, and operating
bolts, everything in good condition and works as it should, gear
teeth, bearings, and bushings are good, $200, can shisp UPS
- -

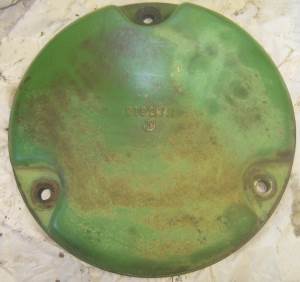

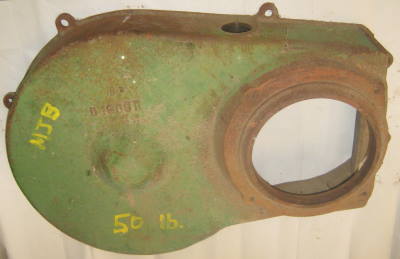

D1927R Clutch cover, $35, your choice
AD752R Clutch facing disk, with linings that may need
replacement, $16
AD752R Clutch facing disk, with usable linings, $30

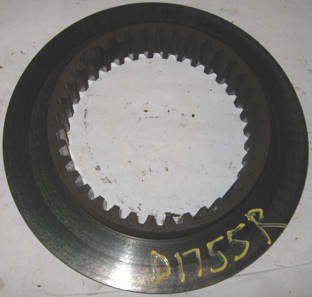

D1755R Sliding Drive Disk, all surfaces and teeth
in good condition, $25

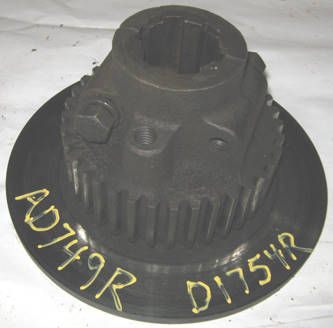

AD749R, D1754R Driive Disk with cap screws, all surfaces
and teeth in good condition, $100

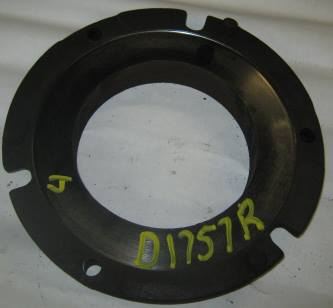

AD2843R (D1757R) Adjusting disk, $20

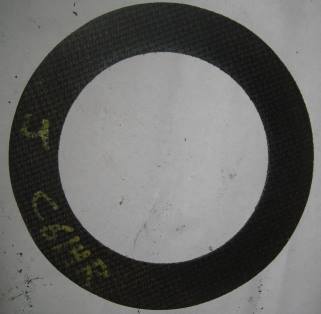

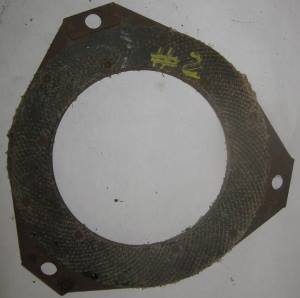

C614R Facing, $5 each
C434R Clutch toggle, $4 each
C760R Adjusting nut, $5 each
D355R clutch dog pin, $3 each
C74R clutch dog, $16
-

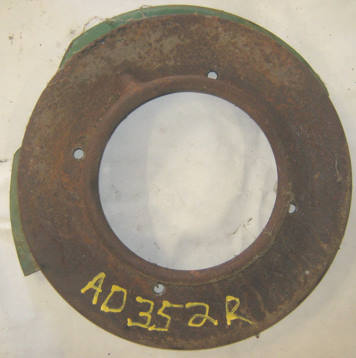

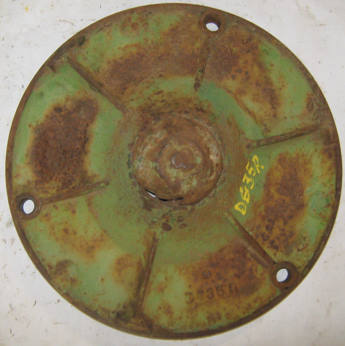

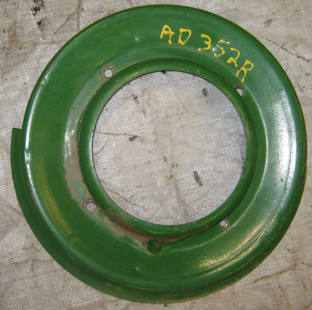

AD352R Dust shield, used on D 31280-109943, $28, your
choice

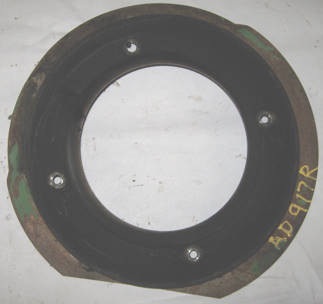

AD917R Dust shield, used on D 109944 and up, $28
-
-

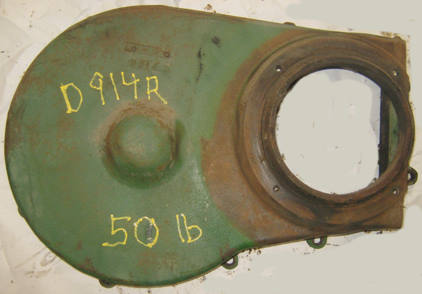

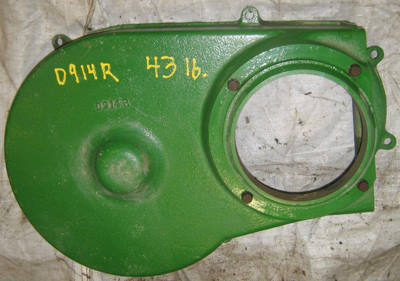

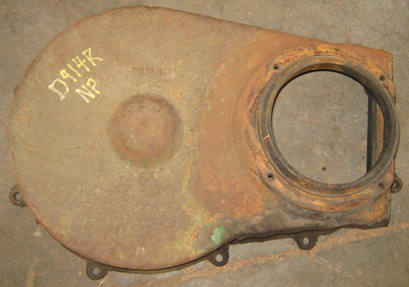

D914R Belt pulley and spline gear cover, used on D
42566-109943, no breaks or repairs, $45, your choice
-

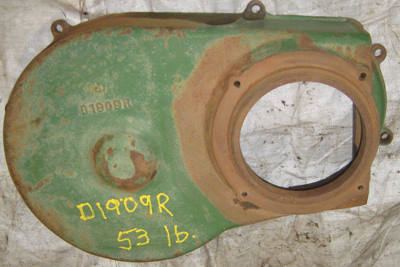

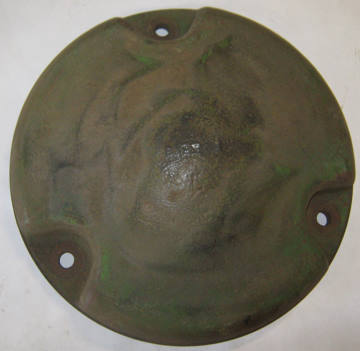

D1909R Spline gear cover, no breaks or repairs, $45,
your choice

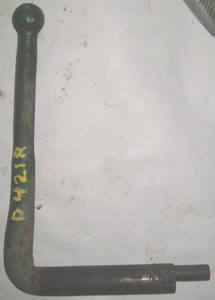

D421R Brake lever, used on D 30400-109943, $25

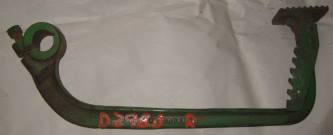

D2986R brake pedal, no breaks or repairs, $35
D2986R brake pedal with A985R Brake latch,no breaks
or repairs, $50
D2987R Brake Cross Shaft, $20
D2612R Brake Shaft Lever, $15
D2858R Brake bracket, $15

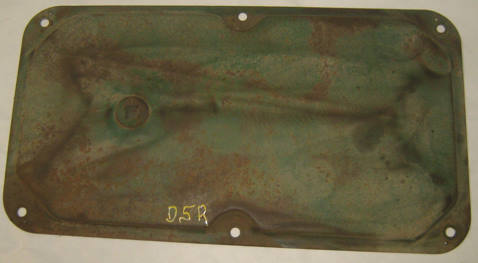

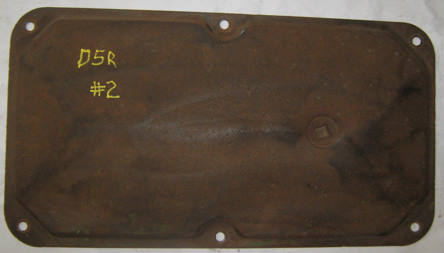

D5R, pressed steel transmission cover, no dents, no
cuts, no repairs, $40
D208R Shift Quadrant, used on D 30400-109943, no breaks
or repairs, $25
D2453R shift lever, $25
79R Shift lever spring, $7
D1229R shift lever arm, $25
D2413R Shifter shaft, $9
D2416R Shift Quadrant, $25

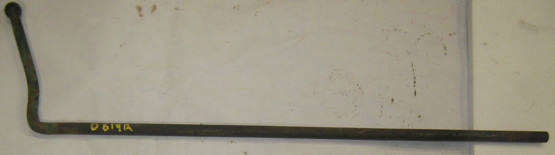

D619R Shift lever, used on D 31280-109943, $30
79R Shift lever spring, $7
D620R Gear shift lever arm, used on F 31280-119099,
$30
D620R Gear shift lever arm, used on F 31280-119099,
$30
D671R Shifting fork shaft, with connecting parts, $15

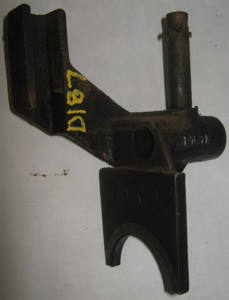

D187R (AD92R) Shifting fork, low and reverse, complete
with stop pin assembly, $25

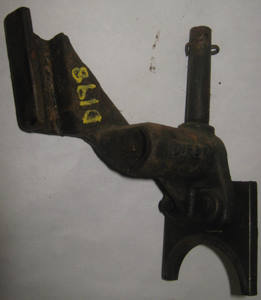

D198R (AD93R) Shifting fork, high, complete with stop
pin assembly, $25
D951R, LH Spline shaft cover (Sub. D674R), Used on
D 31280-109943) $10

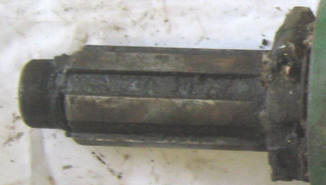

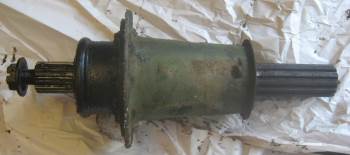

D950R Spline shaft, used on D 46905-109943, excellent
splines, $125
Snap ring used on D950R Spline shaft, $15
D675R Spline shaft nut, used on D 31280- 130699, $30
JD7680R (New Departure Endee 1309), Bearing on spline
shaft, $25

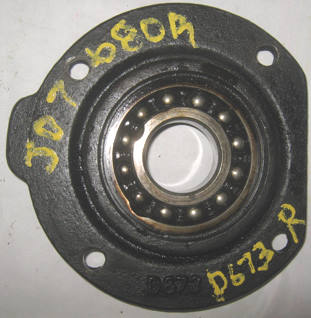

JD7680R Bearing in D673R (AD2818R) Housing used on
D 31280 and up, $40
D111R Low Speed Sliding pinion, used on D 30400 to
119099, $35
-

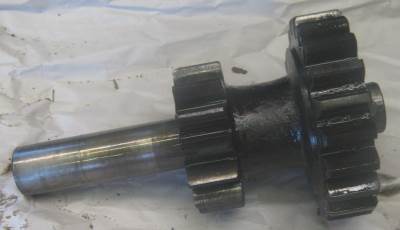

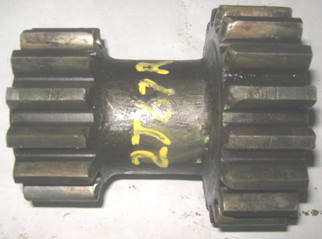

D2818R High and Intermediate Gear, 18T and 22T, $45
-
D2805R Low and Reverse sliding gear, 14T, $30
D621R Reverse Shaft, Used on D 31280-109943, shaft
has deep score marks, use as pattern or fill and machine, free
with any order
Bolt and jam nut to hold reverse shaft in place, $10
D22R Reverse Shaft collar. with bolt and jam nut, used
on D 30400-109943, $10, two available
AD2767R (Sub AD774R), Reverse gear with bushings (one
bushing is worn and should be replaced), $35

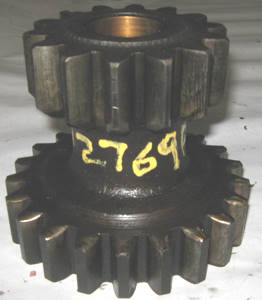

AD2769R (Sub. AD1605R), Reverse gear and AD1248R shaft,
used on styled D, $35
D49R Differential shaft quill, no beaks or repairs,
good bearing surface, $25

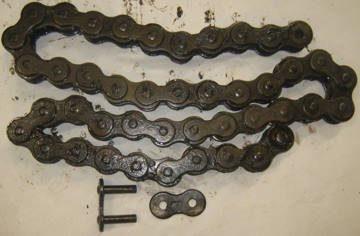

AD2624R (Sub AD31R), Drive chain 44 links used with
D74R sprocket,includes master link, good condition, $45

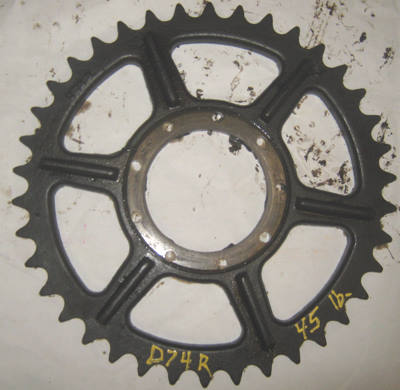

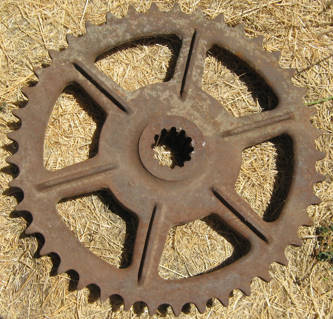

D74R Final drive sprocket 38 tooth, used on D 30400-109943,
$35
D331R Rear Axle Sprocket bolt, with washer and nut,
$5 each
D629R Clamp, Rear axle Quill to Case, with bolt and
nut, $5 each

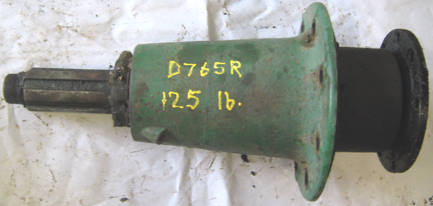

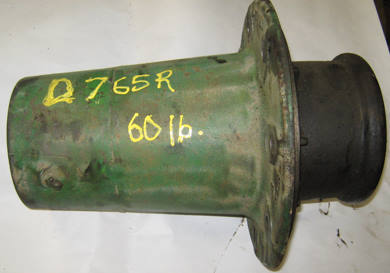

D765R Rear Axle housing, no breaks or repairs, both
bearing cones are good, $45
AD401R, Rear Axle Lock Nut, used D 30400-123099, 123201-124193,
$25
D144R Rear Axle Lock Nut Washer, $10
D89R Rear Axle Nut, used D 30400-123099, 123201-123283,
$25
JD7008A Grease cup used on rear axle, $10 each, two
available

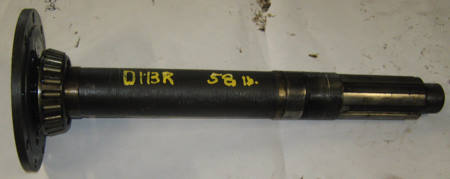

D113R Axle shaft, used D 30400-123099, 123201-124193,
excellent condition, $75
-
Unstyled D rear axle assembly with D765R housing, very
good condition, $150, can ship UPS
Styled D Rear axle housing D2459R with axle, both sides
available, $80 each
