John Deere Model D Parts

Both unstyled and styled D parts

AD1606R 5 hole seat , $30, needs center repair

19 hole seat, needs center repair, $20

JOhn Deee Implement Seat with "JD" center plate, $35

18 hole seat, not Deere, $20

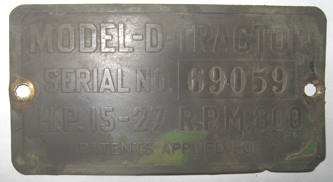

D tag, 69059, $40

D tag, 56045, $40

D tag 166264, $40

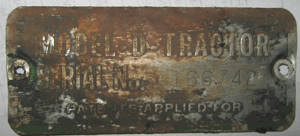

D tag 166742, $40

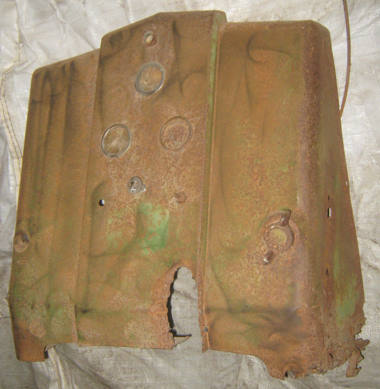

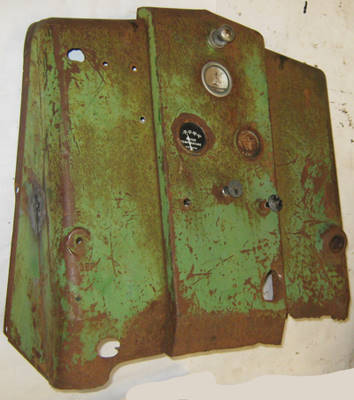

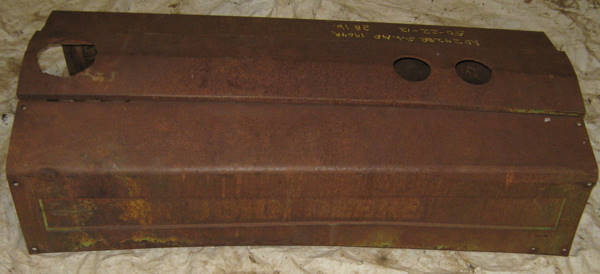

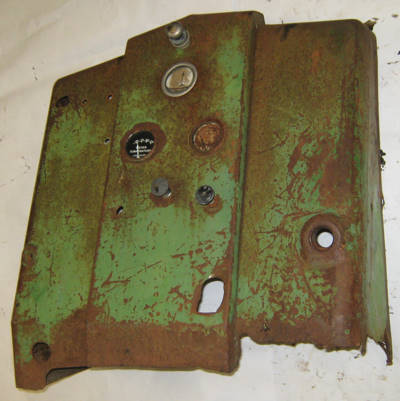

AD1963R Dash #1, needs work, as-is, $25

AD1963R Dash #2, needs work, as-is, $25

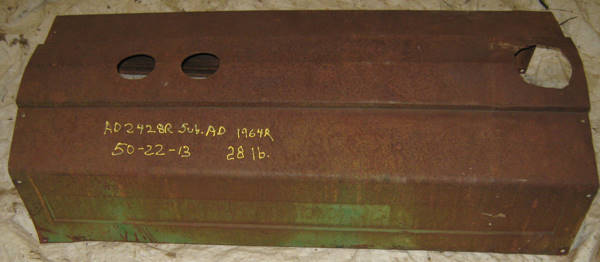

AD2428R (Sub. AD1964R) Hood, Stright, but has cut at radiator fille hold and some corrosion at parts of the bottom edge, $75

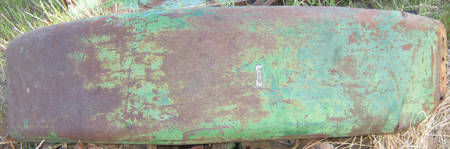

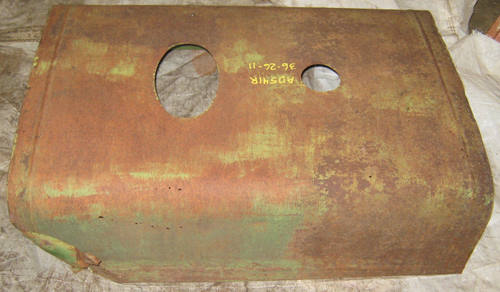

AD541R Hood, used on D 68880-109943, some pinholes, on corner needs straightening, but there are no cuts or missing pieces, $50

AD543R Front tank bracket, used on D 68880-109943, $15, your choice

AD544R Rear tank bracket, used on D 68880-109943, $15

AD544R Rear tank bracket with D1873R Bracket, used on D 68880-109943, $25

AD289R (AD44R) Gasoline line to three way valve, used on D 30400-109943, $20

New AD709R Filler cap, $20

AD1959R Rear fuel tank support, $15, your choice

AD1961R, Rear tank strap, $15

AD1958R front tank bracket support. $15, our choice

AD1960R Front tank support, $15

AB2805R Three way fuel valve, rotates freely, may need new gasket, $50

AD1957R Line from gasolint tank to three way valve, $15

AD1962R Line from three way valve, to carburetor, $20

A2956R Elbow at Gasoline tank, $15

AB2805R Three way valve with B901R Indexing stop, valve turns freely and stop is not broken or repaired, $100

B1594R Fuel control rod, $20

A2587R Fuel control rod extension with A2230R Coupling, $20

D3019R Connector at three way valve, $10

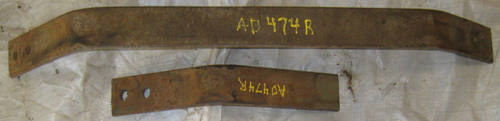

AD474R Seat Leaf and Seat Spring, $25 each piece

D898R Seat bracket clamp, $9

Stud and bolt for seat clamp; $5 each

Seat clamp, $20, your choice

D2624R Sear Bracket, $25

D2623R Seat Channel, $25

D2265R Seat Support, no breaks or repairs, $254

C1982R Cast spring holder, $7

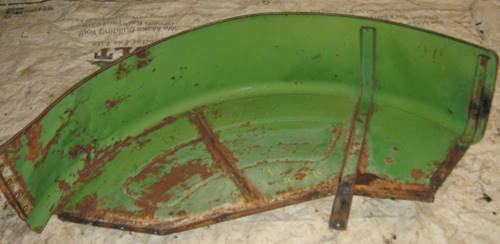

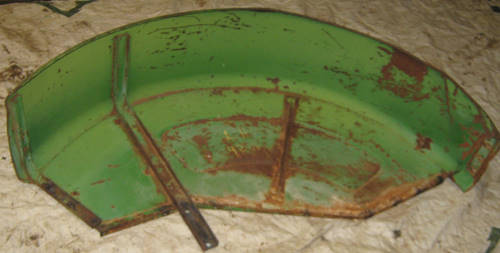

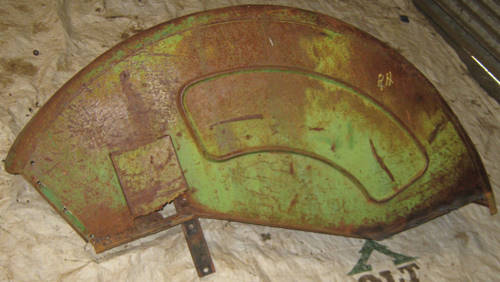

AD1930R Styled D Right side fender with D3110R Front brace and D3112R Center brace and D2971R RH angle, tool box sides are there, but bottom is rusted our as well as some corroision on bottom of fender, $90

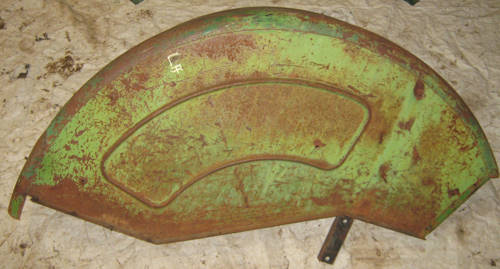

AD1931R Styled D Left side fender with D3111R Front brace and D3113R Center brace and D2972R LH angle, some corroision on bottom of fender, $90

D1237R Fender Bracket, case to fender, no breaks or repairs, used on D 109944-143799, $40 each, two available

D2967R fender bracket support good condition. 20 each, two for $35

D648R RH Platform support bracket, used on D 31280-109943, $15

D649R LH Platform support bracket, used on D 31280-109943, $15

D648R/D649R Platform support bracket, Both brackets $25

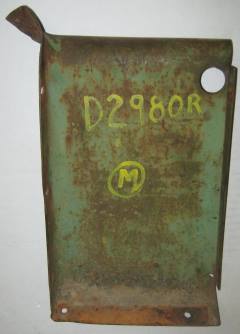

D2980R LH Front dust shield, $25 your choice

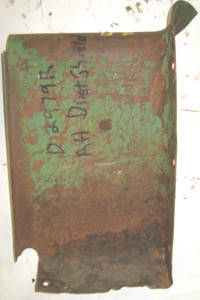

D2979R RH Front dust shield, some corrosion,$10

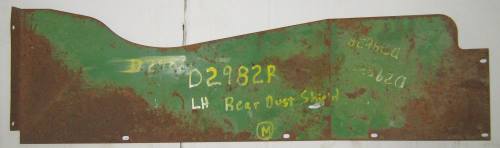

D2982R LH Rear dust shield, $35, your choice

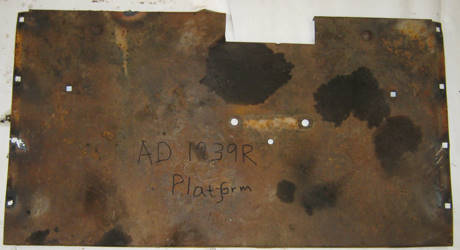

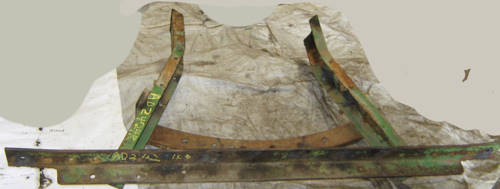

AD1939R Platform, $35

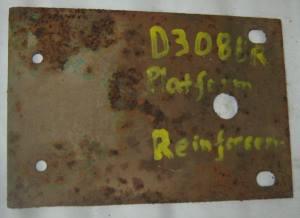

D3088R Platform Reinforcement, $18, your choice

D2985R Platform support, $8

D2410R steering shaft support $25

D1877R Upper steering shaft bearing, $10

D1033R Air cleaner to Carburetor pipe, has added pipe that was used to make a crankcase breather, pipe can be removed and a plug screwed into the tapped hole, no breaks or repairs, used on D 49774-109943, $25

D959R 64" Cross Angle, needs some straightening, used D 49737-143799, $10

D649R LH Platform Support, used D 31280-109943, $15

D648R RH Platform Support, used D 31280-109943, $15

D1289R Platform spacer, used D 68880-130699, two available, $8 each

D1290R Platform End Reinforcing Strap, used D 68880-163799, $5 each

Non original air stack for a D or GP, $20

AD825R Auxiliary Air Cleaner with AD2497R Cleanout Cap

D2375R air cleaner support bracket, $50

D2376R Bracket

D2380R Ventilator pipe, $20

AD2816R Air cleaner body, $25, three available, your choice

`AD1895R oil cup, no dents, no holes, $40

AD1896R Clamp, $10

AD918R Breather body, $20, similar to above

AC762R shorter Breather cap, $15

AA359R crankcase breather cap, $18

Clamp for breather cap, $6 each

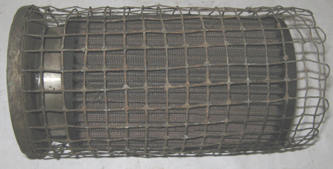

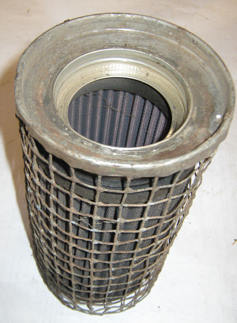

Core for crankcase breather, $12, your choice

Dent free gas cap, either plain or with "Buy clean fuel, keep it clean" $9

D319R Radiator cap, $25

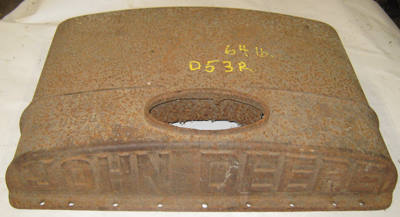

D53R Radiator top tank #1 for unstyled D, no breaks or repairs, can ship UPS, $100

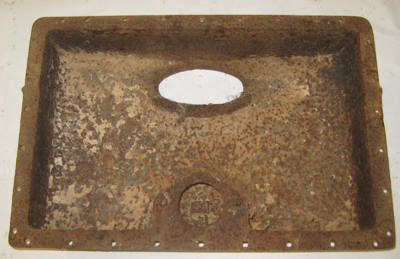

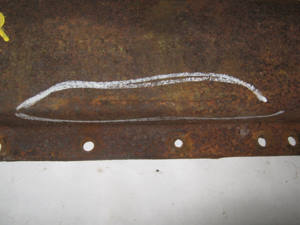

D54R Radiator bottom tank, no repairs but two slits that will need repair, $15, as-is

Unstyled D Radiator Straps, Used D 30400-143799, $4 each, give length needed

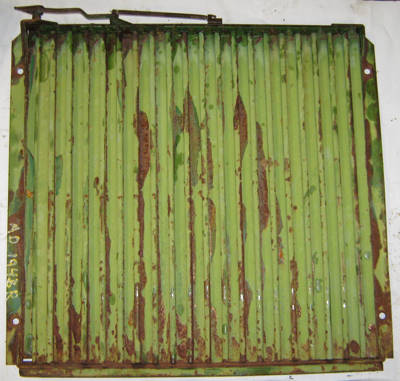

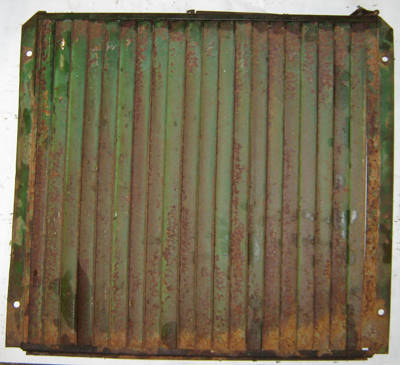

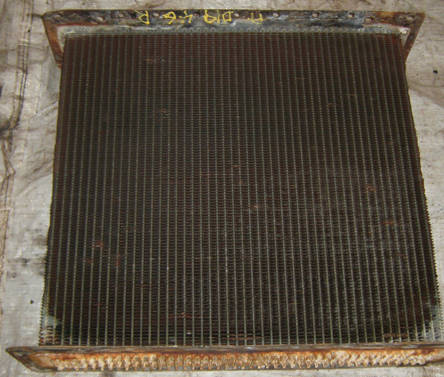

Front and Rear views of AD1948R Shutter, Opens and closes easily as it should, no rusted out pieces, one side of frame may need a little straightening, $125

D998R Bracket with B1520R Control Lever, $15

D3000R Shutter Control Link, $15

AB1621R Radiator Filler Cap, $18

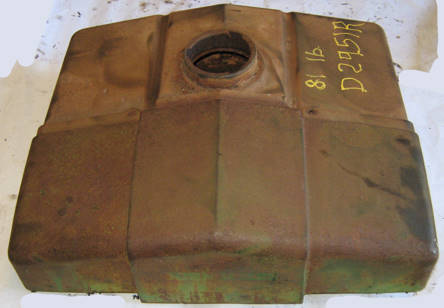

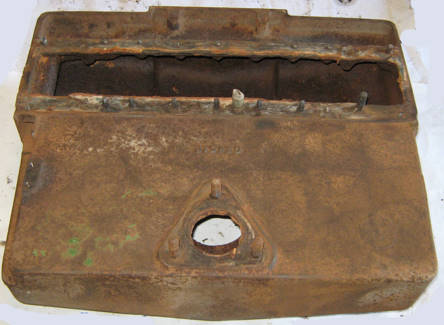

D2951R Radiator Top Tank, No breaks or Repairs, but will need some broken off studs and bolts removed, $100

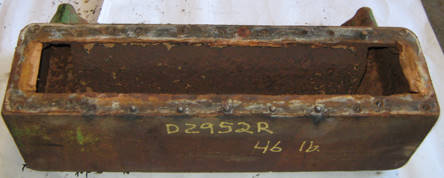

D2952R Radiator Bottom Tank, Good condition, but has a welded repair at one of the water outlets and will need some broken off studs and bolts removed , $40
