Wheels, Front Ends, and Steering parts for John Deere Model B

Parts for both early styled (s.n. 60,000-201,000) and late styled B (s.n.>201,000). Click here for other JD styled B parts.

9/16-18 lug nut for rear wheels, $1.50 each or set of six for $7.50

1/2-20 lug nuts for front wheels, $1.50 each or set of six for $7.50

-

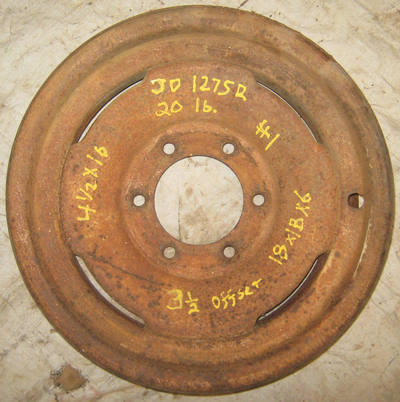

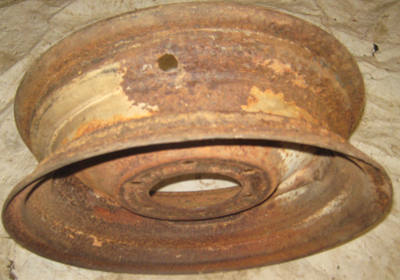

JD1274R Heavier Duty Wheel, 4 x 16, excellent condition, $120

-

JD1268R stamped Wheel, 4 x 16, minimal rust, but needs some rim repair, $50

Behlen power steering unit, complete in good condition, with A steering shaft (you can cut you B steering shaft to use it on your B), hoses for measurement only, will need new hoses, $150



-

-

Live Hydraulic pump, John Deere, good condition, with A4761R cover and A4770R Pump drive key, $200

- -

B1395R Steering sector gear, $40, your choice, used on B serial # 60000-238315

B2766R Steering sector gear, used on B serial # 238316 and up, $50

-

B2191R steering eccentric, $25



Parts for Unstyled and Styled Wide front ends with either A1100R center section or B1207R center section

-

B829R Center steering arm, one ball shows some wear, but no breaks or repairs, $100

Tie rod with H982R end (complete with all internal parts), overall length 21 1/2 inch, $35

H982R tie rod end with all internal parts, $20 each

A893R upper clamp, B1233R lower clamp, with bolt, $15 each

Various tie rods of different lengths (18 1/2, 17 1/2, 14 1/2 inches long) (A892R, B1221R, B1205R, B1206R), $20 each

C1401R Dust cover, inner $9
C1400R Dust cover, outer, $10

Complete tie rod set as shown, all internal parts included, $100

Top and bottom views of A1100R center housing, no breaks or repairs, $200 can ship UPS

A833R ( AA730R) Knee, no breaks or repairs, good bushings, two available, $90 each

A887R U-bolt, two available, $20 each or both $32

A891R steering arm, $160

A1101R Lock bolt, $10

A1101R lcok bolt with wahser and nut, $15

A890R thrust washer, $10 each

D467R Shim washer, $3



Front end assembly with B1207R center housing, B1210R (AB1352R) Short extension, and two B1208R (AB1355R knees), there are three small places on the center housing where small parts of the castings are chipped away (see the yellow arrows), $375, Pick up here or I can arrange truck freight shipment

-

AB1354R (B1207R) Center section for BWH and AWH tractors, no breaks or repairs, $200, can ship UPS

B1236R (AB4685R) Ball down steering arm, no breaks or repairs, $160

B3264R Ball up steering arm, no breaks or repairs, $180

AB1396R, Knuckle with 19 3/4 inch spindle, excellent condition, two available, $90 each

-

B1492R Anteater style pedestal with AB1618R vertical shaft, not that one part of the pedestal casting is broken and that the shaft needs to be freed up, as-is, $50, can ship UPS

ROUND TUBE WIDE FRONT END:

-

Complete Round Wide front end #1 to fit late A and B with the split pedestal, Complete including the hubs, steering arms, tie rods, mounting plates, and all mounting bolts. Nothing is either broken or repaired-everything is in very good condition. Ready to go to work on your tractor.
$850 plus truck freight shipping or it can be picked up here.

If you need the split pedestal, I also have them available for both Models A or B.

-

-

Complete Round Wide front end #2 to fit late A and B with the split pedestal, Complete including the hubs, steering arms, tie rods, mounting plates, and all mounting bolts. Nothing is either broken or repaired-everything is in very good condition. Ready to go to work on your tractor.
$850 plus truck freight shipping or it can be picked up here.

If you need the split pedestal, I also have them available for both Models A or B.



B2694R Lock bolt with 1" nut, $15

FOR BNH:



-

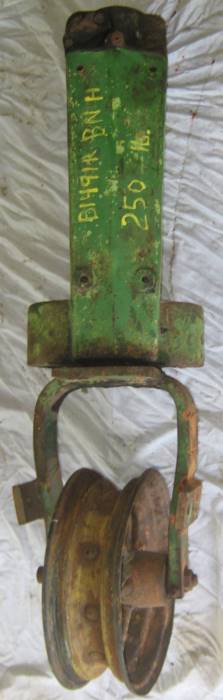

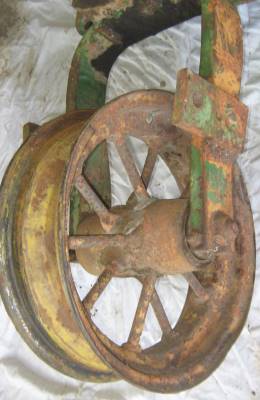

Complete front end for styled BNH with B1491R pdestal and correct AB1336R spoked 16 inch wheel, excellent condition. Includes steering gear, covers, and all mounting bolts. Can ship truck freight, $750

AB1336R spoked 16 inch wheel, with axle parts, as-is, $25

-

Complete front end for styled BNH with B1491R pdestal and correct AB1336R spoked 16 inch wheel (wheel has some welds where spokes intersect with rims). Includes steering gear, covers, and all mounting bolts. Can ship truck freight, $400

FOR B Two wheel tricycle:

-

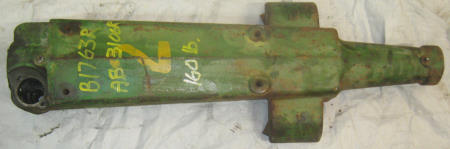

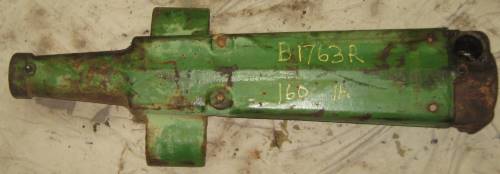

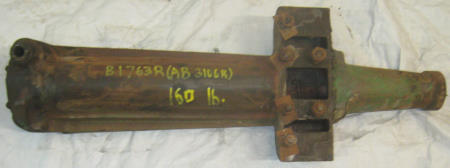

AB3106R, B1763R Pedestal, Very good condition, $50, your choice

-

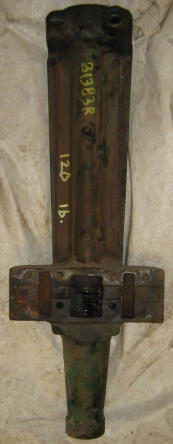

AB3106R, B1383R pedestal, Very good condition, $50

B105R washer (between bottom of pedestal and spindle), $16

-

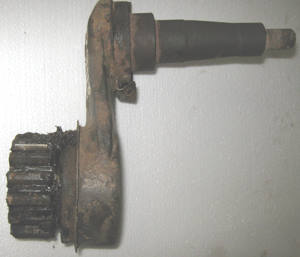

AB3133R spindle, very good condition, good dust guards, $60

-

AB3133R Spindle, very good condition except for dust guards, $45



B918R hub, used on tricycle B with the 15 inch wheel, includes both bearings and felt retainer, no breaks or repairs, $40 each

AB1032R Spindle nut, $8 each

B105R thrust washer, $9

B104R pivot plate, $12



B1766R Center plate, $15

Split pedestal:

-

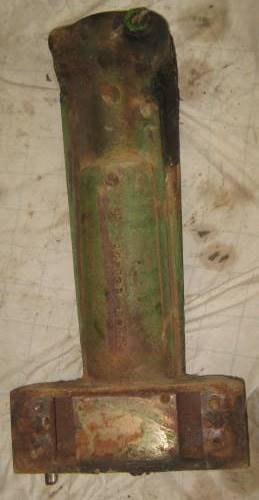

Lighter style,similar to above (160 pounds total)

- -

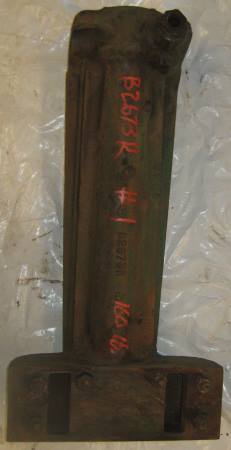

#1,Lighter style,this is the best of the bunch (160 pounds total)

-

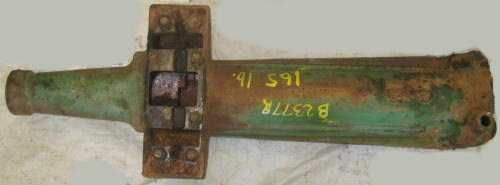

Heavier style

B2673R split pedestal, $160 without sector gear and eccentric bushing, $220 with sector gear and eccentric bushing
There are two types of B2673R, I have both types available. The lighter one can ship UPS, the heavier one by truck freight or you pick up only



AB3681R Steering shaft with nut, $80

Fork to fit split pedestal and the 16 inch wheels shown below, $60

B2681R wheel with tire, with good axle and bearings, $95 (160 lb with tire, 135 lb without)

B2681R wheel with good axle and bearings, $95 (160 lb with tire, 135 lb without)

B2681R wheel with good axle and bearings, $90 (135 lb)



Wheel cover for B2681R wheel - free with wheel

Steering wheel and horizontal shaft parts:

AB218R (AA380R) Steering wheel, nice condition, 16 inch diameter, $25

17 1/2 inch steering wheel, with excellent rubber, no repairs needed, $50

17 1/2 inch diameter steering wheel with spinner knob, $25

AB3909R, AB3910R, or AB3911R Steering shaft, $30

Steering shaft stub, good worm gear, $12

JD7396R steering shaft beaing, $10 each

-

B1637R, Cap for steering shaft, $12, your choice

-

B1393R, Top steering cover, $14



B2379R hub, 2 available, includes inner and outer bearings, $45 each

B2719R hub, 1 available, includes inner and outer bearings, The hubs are used with the rollomatic front end. $35
B920R hub cap, $15

B2015R hub for 15 inch wheels, 2 available, includes inner and outer bearings, $30 each

B920R hub cap, $15, several available

-

B2711R and B2712R Knuckle with dust excluder, very good condition, $60 each

B2716R washer, $9

B2727R cap $7

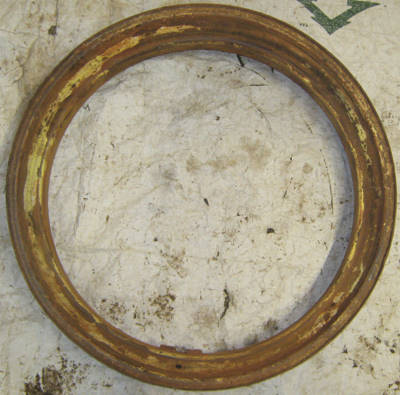

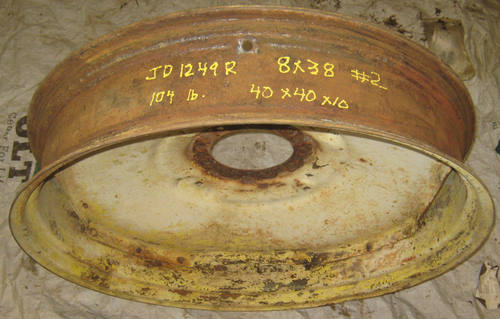

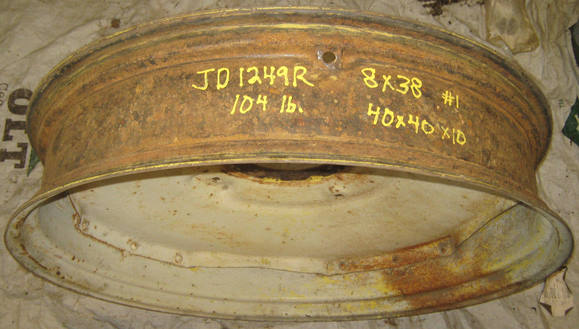

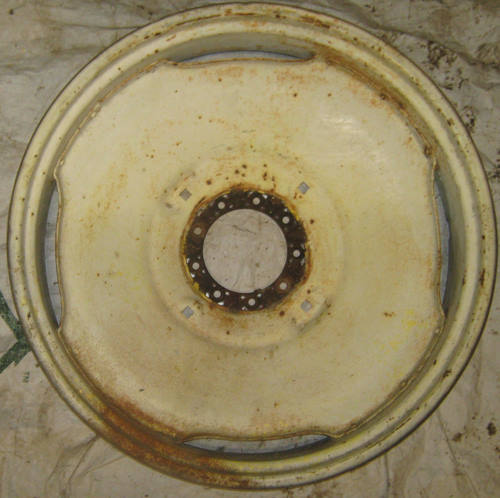

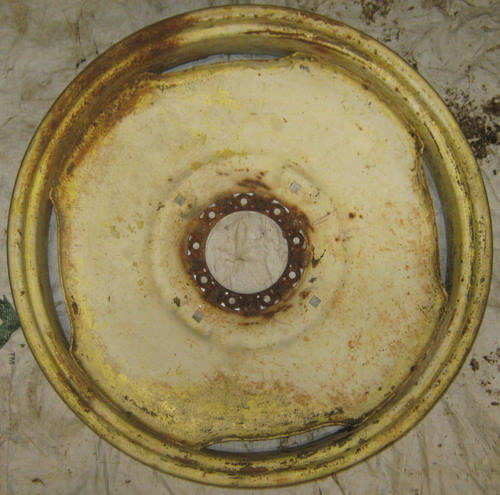

Rim #1

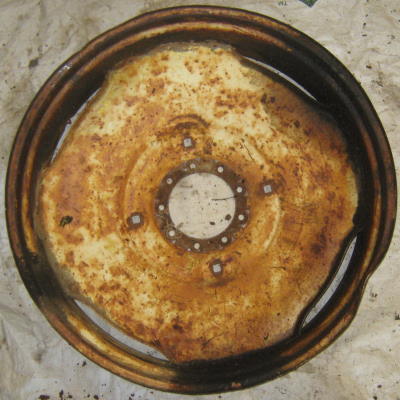

Rim #2,

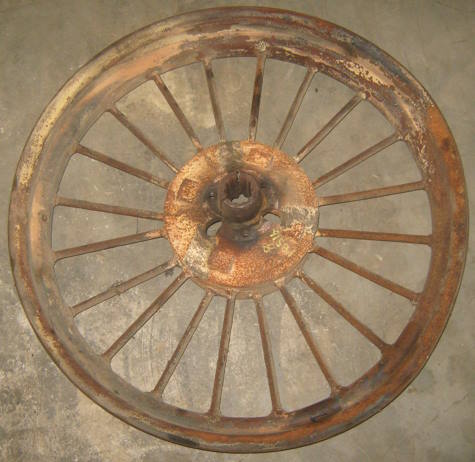

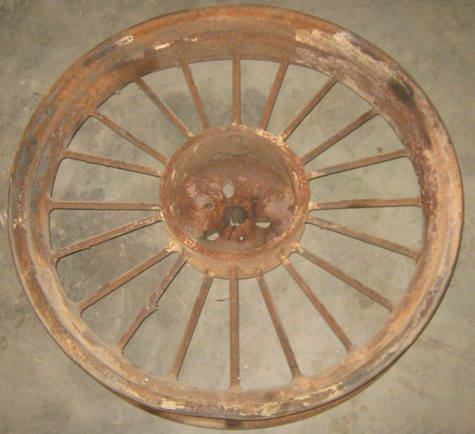

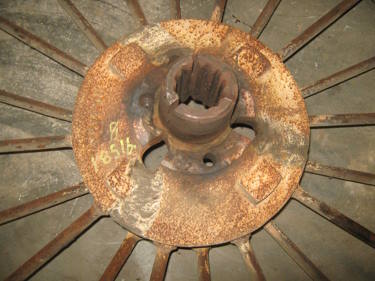

This is a pair of very rare wheels. The rear wheels have F & H casting # HC419C in the hubs. These are similar to F & H HC419A hubs used on the 40 inch round spoked wheels for BWH and BNH tractors and also the 36" round spoke wheels used on a few BN's. However, these wheels have flat spokes (not round spokes) riveted into the hubs. The flat spokes are welded to the 38" rims. I believe they are cut downs from steel wheels, since they would have been riveted to the rim if they were factory wheels for rubber tires. The tractor that these wheels came from is a wartime styled B with a tricycle front end. Thes erial tag was missing, but the B2013R cast iron frame indicates a 1943 or 1944 wartime tractor, serial #136662-166999. This is confirmed by the cut down fronts with the wartime hubs also on the tractor. I have never seen or heard of a set of these hubs with flat spokes, but the fact that the serial tag was missing makes it difficult to do further research on them. They would look great on a tractor with steel rims put back on them. Unfortunately, as is more often than the case than not with these B hubs, the ears have broken off over the years. They are all there and fit the hubs and would work fine for a show tractor. The rims weigh 200 pounds each and can ship truck freight. I have more photos when they were on the tractor if you would like to see them. They are priced at $900 for the pair due to their rarity.

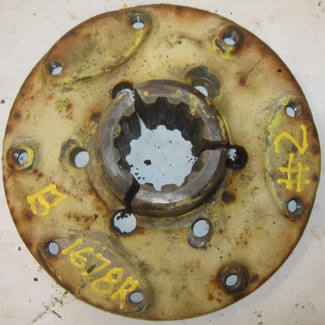

B1189R hub clamp to fit the B2277R and B1678R hub, $25

Wheel center, outer diameter 34 1/8 inch. Use this center and your wide rim to make a light weight wheel for your pulling tractor, the 9 hole bolt pattern fits A3248R, B1678R, and B2277R hubs, $80

A3149R cast center for 38 inch rims, $50, one available, 4 mounting studs per center

-

B2188R Rear wheel hub, 12 spline axle, fits either A3149R or A3402R Cast centers, $60, three available

A2961R Special hardened bolt to attach hub to cast center, with nut, $2.50 each set

-
B2189R hub clamp, $45

Special 3/4 x 4 bolt to fit the B1961R and B2189R clamp, $6 each

B634R rim clamp, $3 each



B1189R hub clamp, $25



B1961R hub clamp $40

Special 3/4 x 4 bolt to fit the B1961R and B2189R clamp, $6 each

A3402R Rear wheel center for 42 inch rims, $40 each

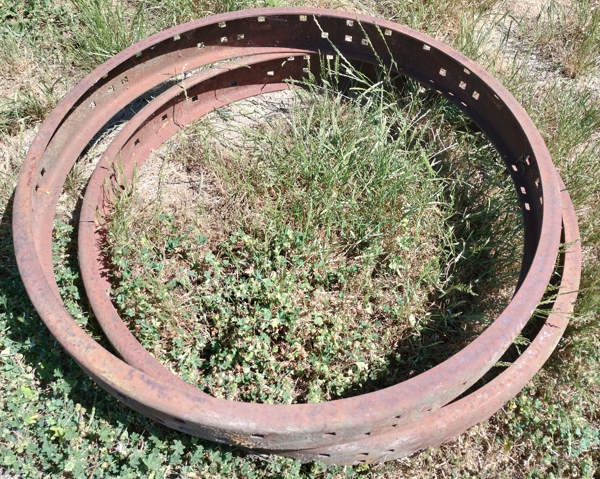

8 x 42 rim #2 to fit A3402R center, very good condition, $100



8 x 42 rim #1 to fit A3402R center, has some pitting and one pinhole (shown), $20 as-is but should be usable



-

AA4025R 10 x 42 rim #4,One pinhole rust through, pitting inside rim, some straightening needed at bead, $35



B634R rim clamp, $3 each
