Engine Parts for John Deere Model B

Parts for both early styled (s.n. 60,000-201,000) and late styled B (s.n.>201,000). Click here for other JD styled B parts. If you don't see what you need, e-mail and ask!!



AB1898R Used compression release valve, $20, two for $35

-

7/16-14 thread acorn nut for JD B valve covers, identical to correct original equipment, $1.50 each, both new and used available

-

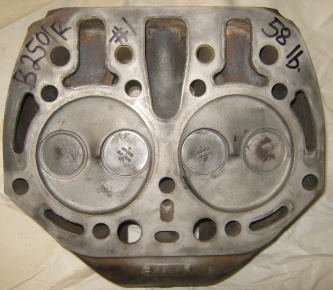

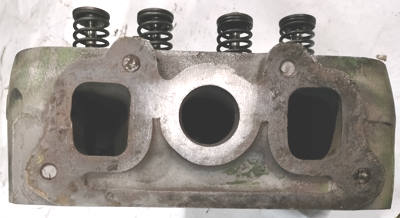

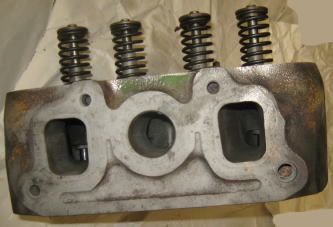

B1784R head, This head came back from my machinist withthe valves and seats reground and a good magnaflux test certifying it to be crack free, all manifold holes are clean and open, ready for your green paint and installation on your tractor, $375

-

-

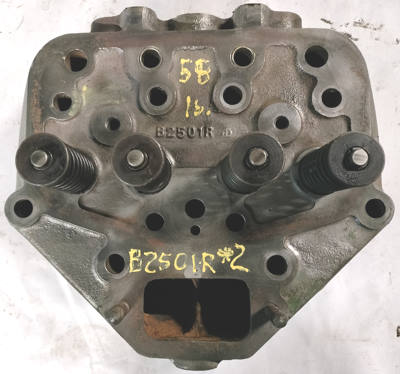

B2501R Head #2, Magnaflux shows one tiney crack in the valve seat area. It should be usable but is sold as is for $125

-

B2461R flywheel #2 in good condition, includes good ring gear and mounting bolts, $150

-

B2461R flywheel #2 in good condition, includes good ring gear and mounting bolts, $160, matched to B2460R #3 crankshaft

B2464R Flywheel lock nut, $20

- -

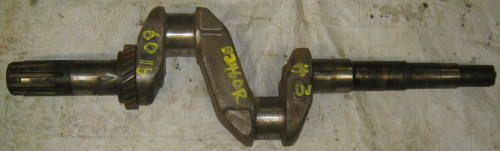

B2460R crankshaft #1 in good condition, with good splines and bearing surfaces, $150 (matches #2 flywheel and #1 driving disk)

B2460R crankshaft #2 in good condition, with good splines and bearing surfaces, $135

B2460R crankshaft #3 in good condition, with good splines and bearing surfaces, $135, matched to B2461R #3 flywheel

B2360R bolt and R20135R Washer for B2460R crankshaft, $15





-=

B1952R casting #, this is the hard to find flywheel used on electric start B's in 1941 and part of 1942. It is heavier and sometimes called the "double lip" flywheel, $120

B1606R casting # , $90 , good ring gear and splines, no breaks or repairs

B1608R Starter ratchet, no breaks or repairs, $50

B1608R Starter ratchet, no breaks or repairs, $50, this one is the thinner version

B1608R Starter ratchet, no breaks or repairs but the teeth show some wear, $25



-

B1847R crankshaft #4, good splines both ends, $125

B1303R crankshaft #2, Journals good, all splines are very good, $200 (50 lb.)

B1303R crankshaft #1, Journals good, but driving disk splines show some wear and may need to be built up, as-is, $45 (50 lb.)

Above 201000, RH main bearing shell and bearing, $35


Above 201000 LH bearing shell and bearing, $35
To save on shipping, I can remove the main bearings and ship them without the bearing shell, cap, bolts and shims for $35

Cover for flywheel spacer, $5

Flywheel spacer, $10

For B 96000-201000, L. H. bearing shell and bearings or R.H. bearing shell and bearings, $40 each assembly, your choice
To save on shipping, I can remove the main bearings and ship them without the bearing shell, cap, bolts and shims for $35

Main bearing shim pack, enough for one bearing: $7

-

B1770R #4 connecting rod with no voids in the babbitt, $100, includes conn. rod bolts and shims

-

B1770R #5 connecting rod with no voids in the babbitt, $100, includes conn. rod bolts and shims

B1770R #6 connecting rod with no voids in the babbitt, $100, includes conn. rod bolts and shims

-

B1770R #2 connecting rod with no voids in the babbitt, $100, includes conn. rod bolts and shims

-

B1770R #1 connecting rod with small voids in the babbitt, $40

-

B1770R #3 connecting rod with small voids in the babbitt, $45

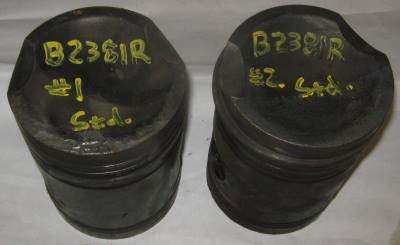

B2381R Standard bore pistons for B over 201000, $40 each,, both for $75

-

-

-

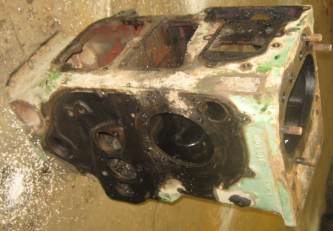

B2500R block, Magnaflux by my local machine shop shows no cracks, Standard bore with good, smooth bores, $375. can ship UPS

B2381R Standard bore pistons for B over 201000, matched to Block #1 shown above, $70 when purchased with the block

B2383R >045 over piston, one lonly, sold only with the above block, $40

Very nice B1772R standard bore piston, for B 96000-200999, $35



B355R Head stud 9/16 x 5 1/4, $10 each
Also available B1788R Head stud, 9/16 x 5 7/8. $10 each

-

-

B1783R block #2, standard bore that has been lightly honed, magnaflux reveals the three 1 inch cracks shown in the last photo, may be usable, includes the internal oil pipe and fitting, and head studs, two of the water pipe studs need to be removed, as-is, $50 and can ship UPS

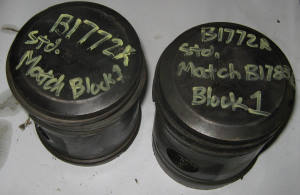

Matched pair of B1772R standard bore pistons that came from B1783R block #2 shown above (ignore the match #1 block notation, it is incorrect), $35 each

-

-

B1783R block #1, bored oversizeand measures 4.538" , bith bores are pitted, as-is, may be able to rebore larger or sleeve, no cracks or repairs noted by visual inspection, as-is, free

Set of pistons from the B1783R block shown above, measure 4.532", $40 for the pair

-

-

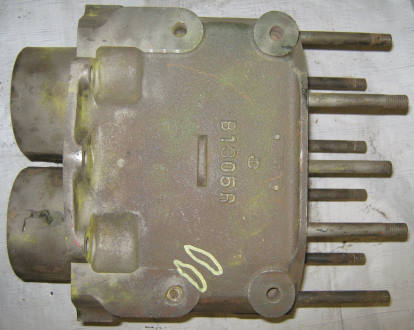

B1305R block, bored .045 over. It has been magnafuxed to show two small cracks on the bottom side that should be repairable, but is sold as-is. $80





Set of pistons from the B1305R block shown below, measure 4.535", $45 for the pair

-

-

B1305R block, bored oversize to 4.545, one bore is pitted, as-is, $40

-

-

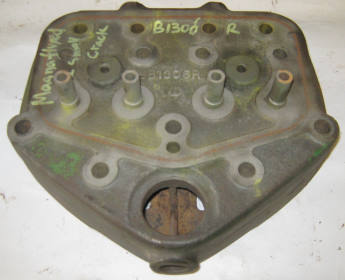

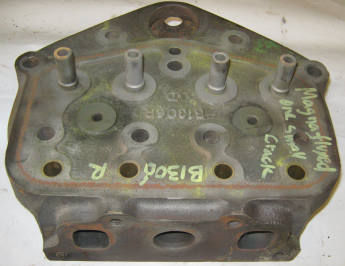

B1306R #2 Head, fits B 60000-95999 and BO/BI 329000 and up, Magnaflux revelead one crack in the face as shown by the yellow circle, valve seats and guides are good, as-is $75

AB2700R Muffler for all styled B, used, good condition, $15

AB3536R exhaust pipe for B over 201000, new, never used, $45

AB3536R exhaust pipe for B over 201000, $20

-

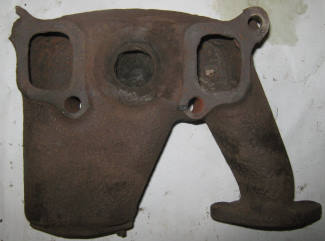

Hard to find B2803R gasoline manifold for B 96000-200999, very good condition, $100

-

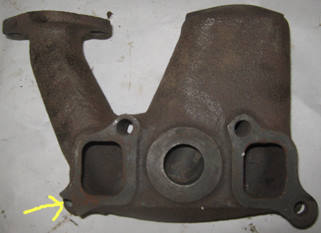

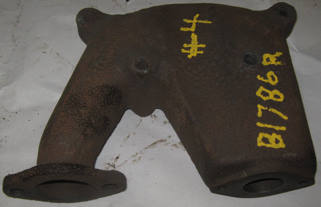

B1786R manifold #2, the bottom ear is partly broken as shown, no other breaks or repairs and in very good condition, $60

-

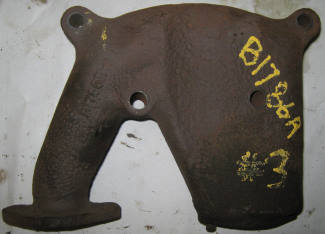

B1786R manifold #3, the bottom ear is partly broken as shown, no other breaks or repairs and in very good condition, $60

-

Two views of a usable B1786R manifold #1, note that one ear at exhaust pipe flange and one ear near head is broken, $20

-

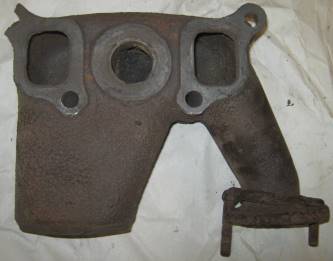

B2472R manifold #2, cleaned, checked, and in good condition, bottom gasket surface will need to be smoothed, $50

-

B2472R manifold #3, cleaned, checked, and in good condition, $60

-

B2472R manifold #4, cleaned, checked, and in good condition, $70

-

B2472R manifold #1, cleaned, checked, and in good condition, exhaust pipe surface need some smoothing, $50

Used head gasket, free with any head



B1797R Valve stem lock: $2 each



Intake and exhaust valves, B 96000 and Up: No intake valves, Exhaust valves: $12

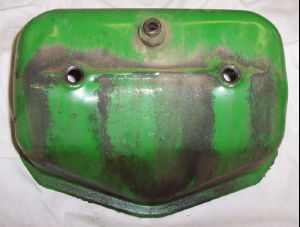

Valve cover, above 201,000, $10 similar to above



-

AB3694R, Ventilator pipe outlet, $16


Below 201,000, valve cover, $10 similar to above

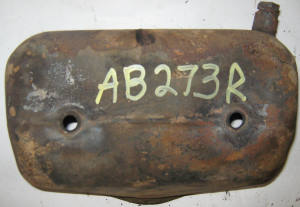

AB273R vqalve cover, B60000-95999, $10

B pushrods, $4 each

Complete rocker arm assembly with oil line, one rocker arm post has a brazed repair, good condition, $110

Early style rocker assembly without oiler: $90

B1711R rocker arm post: $39

Oil line for rocker assembly, $15

AB2567R Tappet Lever with adjusting screw, $18

AB2567R Tappet Lever without adjusting screw, $12

B1859R Adjusting screw with jam nut, $13

B207R spring, $5

B206R Tappet lever shaft, $5

B217R or B2284R Camshaft: $25
B195R Cam gear: $35

B2284R Camshaft: $25

B195R cam gear, very good condition, $35

B195R cam gear, pitted- for ornamental purposes for those who use these for "steampunk" sculptures, $15. Ask I have more items available

B198R camshaft rh bearing, $10

B199R camshaft lh bearing, $10

Cam follower holder and oil pump drive, $20


Cam followers, $5 each

A2354R Oil Outlet washer, $12.50

A4227R Oil Outlet washer, $12.50

B2518R Oil line to gauge for B over 201000, $8

Oil regulator assembly, excellent condition, B over 201000, $15

B over 201000 oil pump, complete, tested and pumps very well, $40

B 96000-201000 oil pump, complete,tested and pumps very well, $40

Oil pump drive coupling, $12

-

AF2725R Oil pressue gauge with brass elbow, one stud is broken off, $20

B below serial 201000 Individual oil lines:

AB2705R, Oil Pipe to governor, $25

AB3325R (AB3335R), Oil pipe Pump discharge, $15

AB290R Oil pipe camshaft, $20

AB289R Oil pipe to camshaft and indicator, $15

AB2703R Oil pipe tappet, $30

AB288R Oil pipe LH main bearing, $15

AB515RR Oil pipe RH main bearing, $15

B1095R Connector, Oil pipe governor, $6



B1097R, Elbow, side outlet, on camshaft and governor oil pipe, $15

B above serial 201000 Individual oil lines:

AB3549R Oil pipe to tappets, $25

AB3461R Oil Pipe to Oil Pressure relief, $15

B2449R (AR20707R) Tee atPressure relief valve, $10

AB3460R Oil pipe, pump discharge, $15

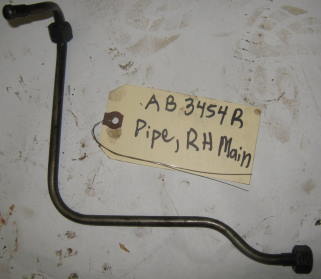

AB3454R Oil Pipe, RH main, $20

AB3457R Oil Pipe to oil pressure gauge, $20

AB3456R Oil Pipe to Camshaft bearing, $20

AB3455R Oil pipe LH main, $20

AB3458R Oil pipe to governor, $25



Brass elbow for oil pressure gauge, $5

-

Two views of B2340R filter head, excellent condition, no cracks or repairs, studs threads are good, $120 (stud is also available)

Oil filter head for B under 201000, $40, your choice

R20248R (A1152R) Oil filter housing, $25

AA2096R Oil filter outlet, $15

A522R Oil filter bottom with nut, spring, and plate (missing snap ring), $35

A522R Oil filter bottom with nut, spring, plate, and snap ring), $40

A522R Oil filter bottom cover, $7

Oil filter bottom nut, $6

D793R and D794R Oil level test cock, $10

B2371R carb to air cleaner pipe, for B >201,000, $15

B2371R carb to air cleaner pipe, for B >201,000, beadblasted and primed, $20


B2833R carb t air cleaner pipe for very late B with ventilator pump, $25

B1408R Carb to air cleaner pipe, $20

2 3/8 inch inner diameter Gates Green Stripe Radiator Hose, cut to length, $2 per inch



B2115R, Above sn 201000 Lower water pipe, $15, your choice

Water pipe for B with water pump, $9

B1315R upper pipe, top end has been cut shorter, which will require a longer hose, $25

-

B1814R water pipe, good casting, but needs a new pipe (available new, ask for details), $12, your choice


B1814R pipe, some corrosion at end, usable, $20

-

B1814R pipe, some corrosion at end, usable, $25

-

B2608R pipe with some corrosion at the upper end, $25

B2608R pipe, $10

-

B1798R lower water pipe, $25, your choice

B2889R lower water pipe, $15

-

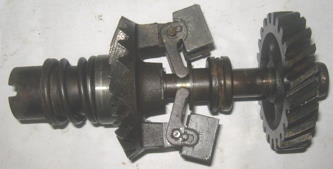

B under 201000 governor, The drive gear beverl gear are both very good, minimal play in both of the governor weight pins, B289R bevel gear, $110



-

B over 201000 governor, The drive gear and the B2637R bevel gear are both very good, minimal play in both of the governor weight pins, $120

-

B over 201000 governor, The drive gear is very good, there is a small amount of pitting on the bevel gear, minimal play in both of the governor weight pins, B2637R bevel gear, $50

Governor sleeve and bearings for B over 201000, $25

B2632R drve gear, $17.50

New old stock bevel gear on governor shaft, B2637R, No longer available from Deere, $60, fits B over sn 201000

Bevel gear on governor shaft, B2637R, very good condition, $25, , fits B over sn 201000

B1693R Special governor case bolt with shoulder, $5 , one available

B1767R governor case, $25


B2630R governor case, $20

End cap for above case, $15

Wire shield for above governor case, $10

JD7657R for end of governor shaft, $20

Lever and shaft for B above 201000, $20

Lever and shaft for B below 201000, $20

Speed control spring, $15 - for tractors above 201000 serial number only

A80R throttle lever, $20

B2836R throttle rod, $15

B2544R 18 inch governor to carb rod, B>201000, $15
B2543R 16 inch throttle lever to governor rod, B>201000, $15

B2836R throttle lever to governor rod, B>201000, $15

-
B1940R Speed control rod, B 96000-201000 $15

B1455R Throttle rod, $15, B60000-201000

C1438R spring on throttle lever shaft, new, $7




Choke rods with metal knob, $20 - Give overall length and I will match it

B1950R Choke rod for B 60000-201000, $20

-

-

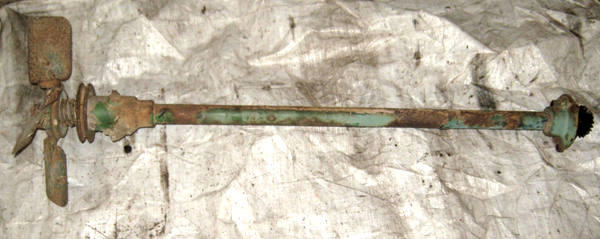

B fanshaft assembly in good condition with very good bevel gear, for B 258520- 300866, $200

-

B fanshaft assembly in good condition with very good bevel gear, for B 201000-258519, $200

-

B289R fan bevel gear #1, very good teeth, $125

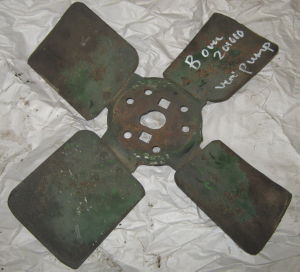

AB3320R fan used on B under 201000

-
AB3315R fan, $20 your choice

A4059R Fan Drive Cup, $9

B2123R fan disk, $24

D399R Friction washer, $7

A4059R Fan Drive Cup, $9

B295R spring, $7
B2121R reatiner, $7
D1736R washer, $3

B298R retainer and 24H847R washer, $10

A369R Snap ring on fanshaft, $7

-

B1141R fan gear housing, good bearing race, $14, your choice

AB1519R fan tube: $25

Fan tube for B 60000-201000, with B1141R housing, $25

Fan tube for B 60000-201000, $20

AB1518R Fan shaft for B 60000-171991, $25

AB3612R fanshaftt for B 201000- 246911, $25



B2563R fanshaft tube, $25

-

Ventilator pump assembly, B2652R and B2644R casting numbers, $35

Ventilator pump assembly, A4188R and A4189R casting numbers, $35

B2874R pulley, good splines, $30

-

Two views of B2124R fan pulley, no breaks or repairs, excellent splines, $50

B2122R keeper $10
D1720R retainer lock, $5 each half

-

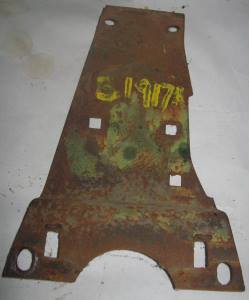

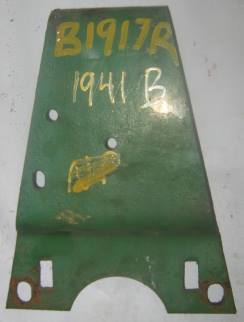

B1917R fan support, $10


B2114R fan shaft support, $10

Fan support, B > 201000, $10


Above 201000, Crankcase cover, $15

B55R Breather cover and stack, $20

B55R Breather cover and shorter stack, $20

B1841R crankcase cover, $20

B1598R cover,, $12

B1596R Breather body, $25

B1596R breather body, has added pipe elbows, $10

-

B1938R crankcase cover with starter bracket, your choice, $35



AB233R Breather core, $25


This AB233R breather core is $5

Oil filler cap, $9

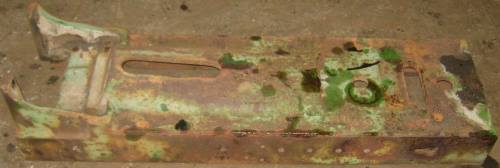

Front end support for wartime B, cast irn, used on #136662-166999, casting # B2013R (parts catalog says B2012R), this was from a BW, $100

Tag and case from a BNH, #112073, $100
