VINTAGETRACTORS.COM
AND
RUSTY ACRES RANCH
Parts for John
Deere Unstyled Model A, AR, and AO
-
-
Edison Splitdorf Type CD Spec 0010 long lug Magneto
used on some earlier unstyled JD tractors, good impulse and good
spark, ready to go to work, $250
-
Fairbanks Morse FMJ long lug magneto used on some earlier
unstyled JD tractors, good impulse and good spark, plastic cover
has some cracks but still usable, ready to go to work, $125
-

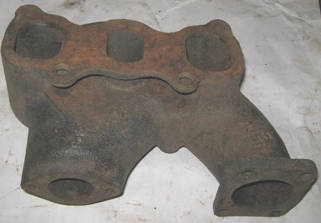

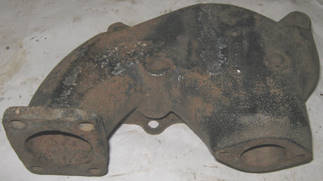

A36R Manifold for all unstyled A, very good condition
with no breaks or repairs, $100
A4164R Conduit, A4165R Bracket, A4166R U-bolt for late
Model AR
A577R Flywheel nut and Spade lug socket wrench, $80,
fits A, D, and G tractors, $80
A61R standard bore pistons with pins, $50 each or $75
for the pair
A61R earlier style (Jam nut, rather than clips, to
hold piston pin in place) Standard bore pistons, 5 1/2",
$60, includes piston pin, one available
Piston pin, $5
A107R connecting rod with somevoids in the babbit.
may be usable but sold as-is $35
Connecting rod cap with good babbitt, $12
A61R 5 1/2" Standard bore piston in good condition
with piston pin and connecting rod (babbitt in poor condition),
$50
A36R manifold #2, good but note the broken holes at
the the exhaust pipe mount, $30
A 1386R elbow for exhaust on AR/AO, Two mounting holes
partly broken, the others are good, $10
A28R flywheel, $70 (110 lb), your choice
A102R crankshaft, very good splines at both ends, $100
(84 lb)
A28R Main bearing cover, $9
Oil slinger on crankshaft, $9
A22R RH main bearing shell with good used bearings
for unst A, AR, AO - $40
If you don't need the housing,I can ship just the bearing to save
on shipping cost
A302R Shim packs for main bearings
A1143R Cam follower with oil pump drive, $20
Cam follower, $4 each
A105R tappet lever with A131R Tappet lever adjusting
screw, $28 each (one available)
F2559R Adjusting screw, $19
Early pushrod (A129R with A139R end piece) for A up
to 435282 or AR/AO 252684, $15 only one available and it needs
to be straightened
A1290R Push rods, $7 each, set of 4 for $25
A176R Valve cover and tappett lever bracket stud, $12
Retainer clips for valves, $8/pair
Valve spring: $2
Cap, $2
Exhaust valves, $10 each. Intake valves, $10 each

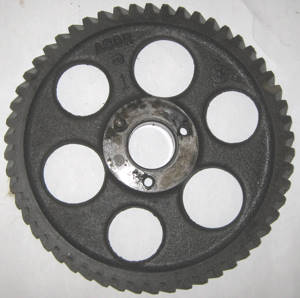

A30R cam gear, all teeth is very good condition, no
chips or repairs, one only, $60
A1142R camshaft, $25
A31R bearing housing for camshaft, $5
A355R spring at the send of the camshaft, $10
A522R Oil filter cover with nut, spring, and plate
(missing snap ring), $40
=
Oil filter bottom that is used with the metal oil filter,
$10
AA280R, Oil line RH main bearing, $20
AA802R, Oil line Oil pump to filter head, $20
AA819R, Oil pipe to governor and oil gauge, $20
AA281R, Oil line to LH main bearing, $20
Oil filter head with A1277R casting number on top piece,
$60
AA2096R Oil filter outlet, $15
D793R and D794R Oil level test
cock, $10
-
B273R Governor speed control spring, $10
D399R Friction washer, $4 (not used on all unstyled
A)
-
A1177R fan gear, some pitting but very usable, $50
Row crop A fan support, $9
A845R (AA525R) upper water pipe, $30
A524R Crankcase cover with breather cup, $25, no breaks
or repairs
A524R Crankcase cover without breather cup, $20, no
breaks or repairs
A902R crankcase cover, $20
Breather core, $12
AA359R Breather stack, $20
B55R Breather cover and shorter stack, $20
D2120R breather clamp with spring, $5 each

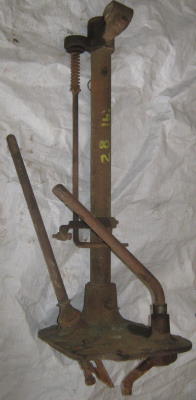

A824R transmission cover, complete with shift levers,
steering pedestal and some throttle parts, $50
C1438R spring on throttle lever shaft, new, $7 or good
used, $4
A80R throttle lever, $20
A948R carburetor throttle rod for AR/AO, $15
A1184R Throttle rod for row crop A, $15
A1185R Throttle rods, $12 your choice
A1170R governor case in good condition, $25, similar
to above
