CASE MODEL VAC-VAO-VAI
PARTS
This Page contains
VAC/VAO/VAI
Engine Parts
25 plus pounds of bolts, nuts, washers, and other hardware
from tractor disassembly. It includes many of the old style heavy
headed nuts and bolts. All hardware is from Case VA series tractors.
$25 for all and I can ship in a flat rate box for an additional
$17.
VT4589 (and other part numbers) Governor to carburetor
control rod, $15
Later VA throttle rod, $15
-
-
Complete set of standard sleeves and aluminum pistons
with used rings. One sleeve has a slight blemish below where the
piston skirt reaches as shown at the yeloow arrow. $120 for the
set of four sleeves and four pistons.
-
3 1/4 inch standard bore sleeves in good condition,
two available, $48 each
Also available, the pistons that match these sleeves
VT331 3 1/4" standard cast iron pistons, $20 each
or set of four matching, similar to above $70
Connecting rods, casting # VT4538, good bearings, $35
each
Connecting rods, casting VT3200, very good condition,
with good used bearing inserts, $35 each
Matching set of pistons (3 1/4inch standard) and connecting
rods available as shown, $180
VT148 Head #1, no cracks or repairs from visible inspection,
all valves are free, valves and seats have been ground by my local
machine shop, $250
VT148 Head #2, no cracks or repairs from visible inspection,
all valves are free, valves and seats look good, but you may want
to grind the valves and seats, $200
Good used head gasket, $10 or free if you buy the head
One piece VT128 manifold, good condition, no cracks,
no repairs, no rust through, the two bolts at the exhaust elbow
will need to be removed, $100
-
Two piece manifold with VT-330 casting, good condition,
no cracks, no repairs, no rust through, a small piece of the carburetor
mounting ear is broken, $100
Exhaust pipe with broken ear (broken part is included),
$10
Head nut and washer, $1 per set
Individual rocker parts, Rocker arms $8each, springs,
$3 each, Shaft, $5 each, Posts, $5 each
Entire assembly, $70
Pushrods, $5 each, $20 for set of eight
Cam followers, $5 each, $30 for set of eight
VT540 camshaft gear with governor parts, no broken
teeth, $60
Camshaft thrust plate, $8
VTA855 governor shaft for VT540 cam gear, $20
VT127 camshaft gear for use with ball type governor,
$50
Ball bearing type governor, $30
VT140 Governor cover, $30
VT3201 Crankshaft #1 with good used main bearings,
includes crankshaft gear, very good condition, $125
VT3201 Crankshaft #2 with good used main bearings,
includes crankshaft gear, very good condition, $125
VT5200 Crankshaft with good used main bearings, includes
crankshaft gear, very good condition, $125
-
-
Crankshaft pulley with MO1505A casting number, includes
crankshaft nut. This may be a special pulley to drive a hydraulic
pump, but it will fit all VA series engines, $50
Crank jaw for crankshaft pulley, $9
Brass thrust washer on crankshaft, $5 each
VT3230 Crankshaft thrust plate, $5
VT3377 Crankshaft thrust spacer, $3
VT3225 Crankshaft gear, very good condition with nice
teeth, $30
VT141 flywheel with good ring gear, $100
VTA331 flywheel, with good ring gear, $100
-
-
VT328 Block #1 with sleeves, No breaks, repairs, orcracks
noted in block, not even any cracks between the sleeves, Nice
smooth bores. Have matching pistons and connecting rods available
as shown.
Block and sleeves without pistons and connecting rods: $300
Block and sleeves with pistons and connecting rods: $440
-
-
-
-
VT149 Block #1 with sleeves, No breaks, repairs, orcracks
noted in block, not even any cracks between the sleeves, Nice
smooth bores. Have matching pistons and connecting rods available
as shown.
Block and sleeves without pistons and connecting rods: $300
Block and sleeves with pistons and connecting rods: $440
-
-

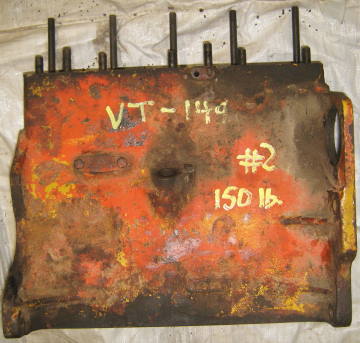

VT149 #2 block without sleeves, nobreaks or repairs,
but there is one small crack at the c yeloow circle between two
of the sleeve holes, Includes main bearing caps, $75.
This photo shows the partially broken mounting hole
for the front end support
-
No cracks between the sleeve holes!
-
VA cylinder block (VT 149 casting number). If
you need a block without sleeves, this is it! Good condition-
there are no cracks between the sleeve holes on the top. There
is a small piece broken at the front end support mounting hole,
as shown in the second photo. Includes main bearing caps, $100.
160 lb so must pick up here or I can ship it truck freight.
5 3/4 inch stud, 1/2" dia, fine thread/coarse
thread. For block to head, $15 each
Main bearing caps, $8 each all three for $20
Oil pump shim, $5
-
Oil pump with VT142 casting, tested and it pumps very
well, with pipe, $125
Oil pump with VT142 casting, tested and it pumps very
well, no pipe, $100
Oil strainer with pipe to pump, $15
Oil strainer, $10

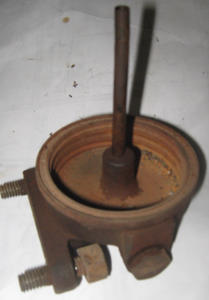

Base #2 for oil filter, $35
Base #3 for oil filter, $40
Plug for oil pan, $7
Oil pan, $15, no dents, no repairs
Oil dipstick, $10
Flywheel Guard, $15
Original oil gauge, $12
Brass elbow for oil gauge, $6
Rear engine seal housing and used seal, $7
-
VT122 front cover, no breaks or repairs, $45
-
VT334 front cover, no breaks or repairs, $45, your
choice
Drain plug in block, $5
3 1/8" opening, starter hole cover, $9
Pressure plate, $30, clutch disk, $25
-
Fan hub, $25, your choice
6 5/8" outer diameter fan hub, $20
Water pump, VT327 casting turns freely, looks good,
$20
-
Water pump, VT341 casting turns freely, looks good,
$20, your choice
Water pumps, your choice $15
Fan, similar to above, $10
Engine oil line to oil gauge, $10
Elbow on oil line: elbow at gauge, $6
Elbow on oil line: elbow at engine, $6
Rear engine seal, $10
Carb to governor throttle rod, $15
VT3709, hand control rod, 14", $5
Throttle rod coupler, $20, your choice
Throttle rod coupler, $9
Throttle lever, $10
Throttle rod for foot throttle, 19 inches, $9
Throttle part, $9
From a VAO, $16
VT269, Accelerator pedal, $15
Throttle rods at pedal, $9 each
Your choice: Throttle rod, bracket and spring, $15
Valve cover, $10
Nice breather cap for valve cover, no dents, $15
Dented breather caps, usable, similar to above, $8
each

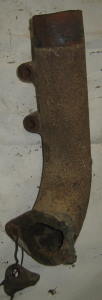

Lower water pipe, $12
Lower water pipe with brass drain valve, $16
Upper water pipe, $8
