Grille

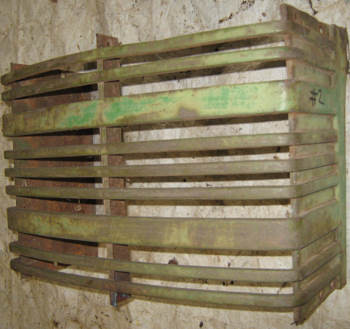

Three views of a nice AL2268T Grille assembly #1, $300

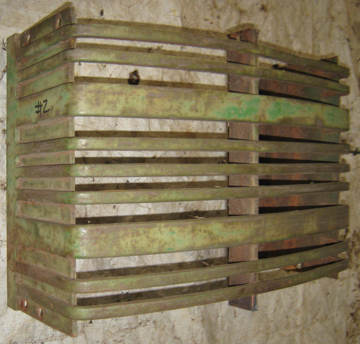

Three views of a nice AL2268T Grille assembly #2, there is one small cut as shown at the yellow arrow, $300

Base and Shield

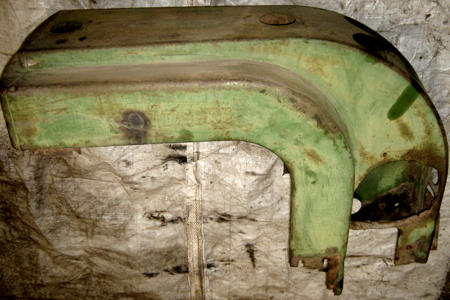

AL2267T Base and Shield #1, crank guide has no broken arms where it mounts to the base, but the arm that attaches to the grille is broken off, but is included, one or two spot welds may be needed between the base and the shield, $425

AL2267T Base and Shield #2, crank guide has a previopus repair, part of the shield has been cut away and the piece is missing, $200

Base only, no cuts or repairs, nice and straight, $80

Base only, no cuts or repairs, needs some straightening, has crank guide with no breaks or repairs, $125

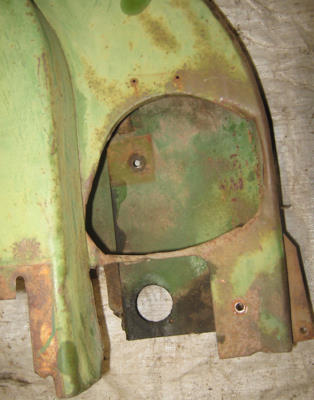

Base sheet metal for Hercules engine L- has the governor cutout, needs straightening , crank guide is preety good, with one small chip missing (yellow area), $50

Two views of an AL2421T crank guide, as shown in the first photo, two of the ears have been reattached, the second photo shows the mounting tab for the grille is gone. $45

Propeller Shaft Cover

Back end of a narrow propeller shaft cover #1, very good condition, with no cuts or repairs. Just add your own tunnel!, $75

Back end of a narrow propeller shaft cover #2, very good condition, with no cuts or repairs. Just add your own tunnel!, $75

Wide propeller shaft cover, nice and straight, two small holes drilled into it, no cuts or repairs, $275

Support bracket, $9

Serial Number tags and frames

LA tag and frame, tag # 1208, $400, can separate tag from frame, but tag only is still $400. The frame is the heavy hollow wall tube (Schedule 80) that the earliest LA's had.

LA tag and frame, tag # 5868, $400, can separate tag from frame, but tag only is still $400

LA tag and frame, tag # 10549, the steel tag is correct for late LA, $375, can separate tag from frame, but tag only is still $375

LA frame, nice condition, no serial tag, $60 coming soon

Air Cleaner

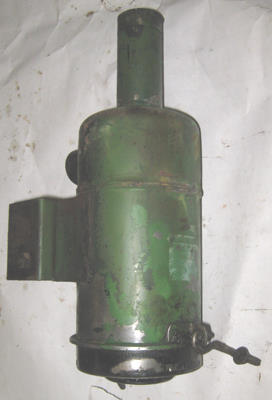

AL2090T Complete air cleaner assembly, no dents, no cuts, includes air cleaner body, backing plate, clamp, cap, and oil cup with no rust through, $200

AL2090T Complete air cleaner assembly, no dents, no cuts, includes air cleaner body, clamp, cap, and bail type oil cup with no rust through, $150

AL2090T Complete air cleaner assembly, no dents, no cuts, includes air cleaner body, clamp, cap, and eyebolt type oil cup with no rust through, $150

Air cleaner body with bail clamp, no dents, good condition, $75

Air cleaner body, bail clamp type, a few small dents, mounting bracket needs straightening, good condition, $40

L4316T Backing plate, $25 if purchased separately, but will be included at no charge with one of the two air cleaners above that do not have a backing plate

"S" tube, L4192T Air cleaner to carburetor tube, excellent original condition, $95, three available, your choice

AL2443T Bail with roller, $15

AL2443T Bail with roller, one side needs to be re bent, $5

AL2444T Baffle plate, $15

L995T Clip to hold baffle in place, $7

AL20306T Air cleaner oil cup, for use with eyebolt assemblies, no holes, no dents, $35

Air cleaner oil cup, for use with bail assemblies, includes snap ring and baffle plate, no holes, no dents, $40, your choice

AL2442T Weather Cap for air cleaner, correct, original, no dents, $35

AL2442T Weather Cap for air cleaner, correct, original, no dents, $35

AL2442T Weather Cap for air cleaner, correct, original, no dents, $35

AL2442T Weather Cap for air cleaner, correct, original, small dents, $25

AL2442T Weather Cap for air cleaner, correct, original, small dent, $20

AL20305T Clamps for air cleaner cap, $7 each

Correct and original hose clamps for air tube, $6 each

AL20133T Air cleaner oil cup hook, $3 each

DRAWBAR PARTS

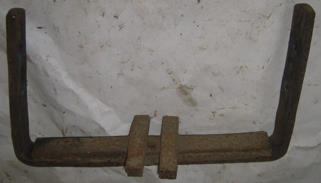

L4313T U shaped support, $45, your choice

L4313T U shaped support, the best of the bunch, $45

L4313T U shaped support with two good L609T Drawbar support to frame Brackets, $45

AL2805T Swinging drawbar, complete, no added bracing, needs straightening, $95

AL2805T Swinging drawbar, complete, but has added reinforcing piece that can be removed to make it like original, includes pin and roller, $70

AL2805T Swinging drawbar, complete, added reinforcement, $60

L609T Drawbar support to frame Bracket, $20 each

Shop built drawbar spacers, not original, $10 for the pair

Unstyled L Drawbar support bracket, (casting # L281D ?) $25 one only

L282T Swivel eye, drawbar to front crosspiece, $8

L288T, Pin for swivel link to front crosspiece, $8

L282T Swivel eye, drawbar to front crosspiece, with L286T pin, $10

L282T Swivel eye, drawbar to front crospiece, $8

AL2066T Nice front crosspieces, $40, your choice

Seat and Seat parts

Front and rear views of a good original condition AD1606R 5 hole seat, $50, usable but may want to do a little straightening.

AD1606R 7 hole seat, $25, needs center repair and some straightening

AD1606R 9 hole seat, $50, has a well done center repair

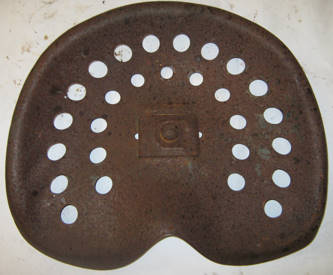

24 hole implement seat with center plate stamped JD in raised letters, $25

AL2458T Seat bracket, no spring, excellent condition, no cuts or repairs, $75, your choice

New L547T Seat spring, identical in every way to the originals, $29

Original L547T Seat spring, very good condition, $35

Original L547T Seat spring, permanently partially compressed, $15

Seat spring, not an original, $15

Original nut (L1121T) and bolt for seat bracket with two L552T Seat spring holder brackets, $25

L552T Seat spring holder bracket, $7 each

Original nut (L1121T) and bolt for seat bracket, $14

Seat spring and bolt, works, not original, $10

Original stud and nut to attach seat bracket to rear axle housing, $5

Hoods and Gas Tanks for John Deere L and LA tractors

All hoods can be shipped UPS.

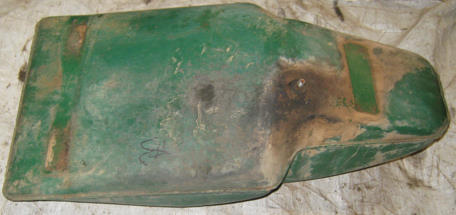

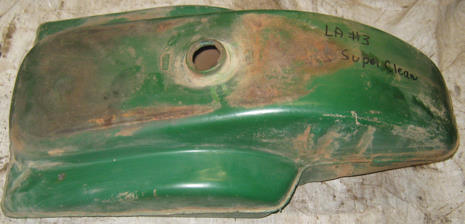

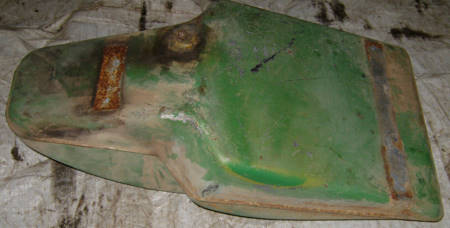

AL2764T LA tank #3, sound condition, no repairs, very clean, ready to go to work-no dents, no repairs needed, $200

AL2764T LA tank #5, sound condition, no repairs, may need a little cleaning, no repairs needed, $125

AL2764T LA tank #7, sound condition, no repairs, very clean, ready to go to work-no dents, no repairs needed, $200

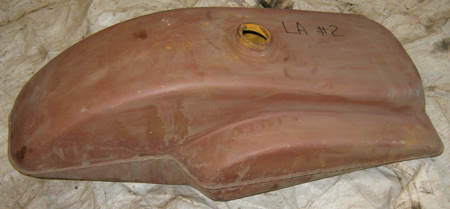

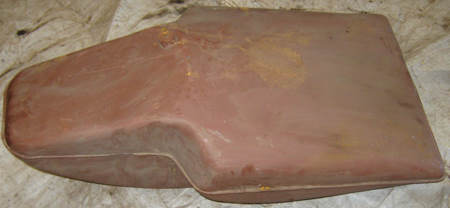

AL2764T LA tank #2, sound condition, no repairs, very clean, ready to go to work, no dents, no repairs-the best of the bunch!, $240

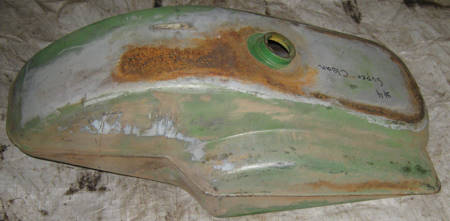

AL2764T LA tank #4, sound condition, no repairs,super clean, ready to go to work, no dents, no repairs-$200

AL2764T LA tank #6, sound condition, no repairs, will need cleaning, $75

AL2764T LA tank #1, sound condition, there is a weell done repair on the bottom (see yellow arrows), will need cleaning, as-is, $25

AL2270T Hercules L gasoline tank, no repairs an minmal cleaning needed, this tank is in excellent condition, $250

Larger diameter caps used as original equipment on radiator and gas tank, good condition, $16 each

Gas cap #1, no dnets, $9. the nicest one

Nice gas caps, no dents, $6 each

Dented gas cap, similar to above $4

Usable sediment bowl, $12, similar to above

AL2768T Tank strap with good cushioned lining,painted green, $14

AL2772T Tank strap with good cushioned ling, painted green, $14

AL2768T and AL2772T Fuel tank mounting brackets (LA shown), $8 each, will need new cushioned lining

L fuel tank straps, $8 each

Homemade fuel line, $6

Gasoline line, sediment bowl to carburetor, $8

AL2270T Hercules L tank- the bottom has rusted out and was repaired with fiberglass- it will need further repair- as-is, $20

Engine house

AL2070T Engine house rear plate assembly for Unstyled L only, note weel done weld on one side (shown in second photo), $100

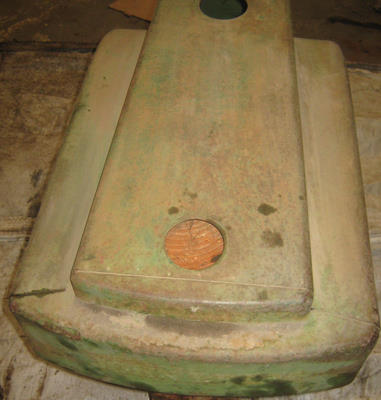

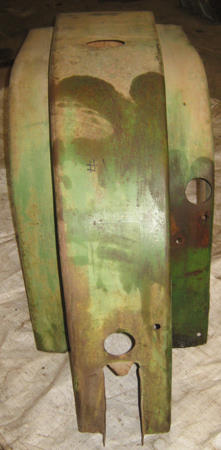

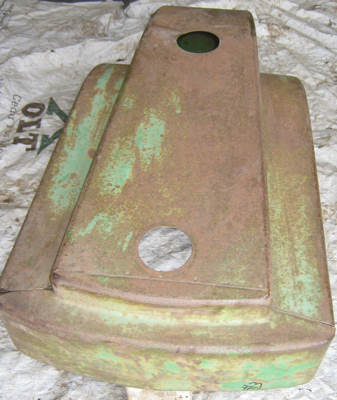

LA/L HOODS

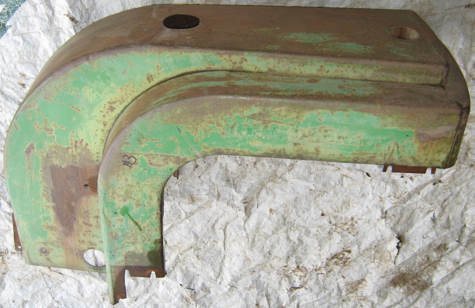

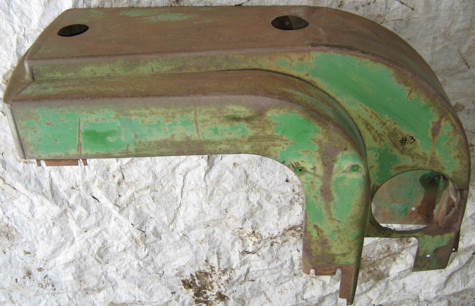

AL2763T Engine House rear support bracket, no cuts, no repairs, $24

AL2774T Engine House Hood #2, nice condition, a few minor dents, $250

AL2774T Enigne House Late LA hood, with ammeter, a few cuts, but fairly straight, $90, can ship UPS

AL2774T Engine House Hood #3, nice condition, a few minor dents, $125

AL2774T Engine House Hood #4, nice condition, a few minor dents, $150

AL2774T Engine House Hood #5, decent condition, some minor dentsmainly on the front and a piece on the left side that has been cut out, inclludes tank brackets, $100

Hercules L Hood
