John Deere Model D
Parts: Engine Parts
Both unstyled and styled D parts
-
-
DLTX3 brass carburetor, used on D 49974-109943, this
carburetor has just had all passges cleaned and reassembled with
a new nozzle, float, gaskets and other parts as needed.It is ready
to install and go to work, $475
-
-
-

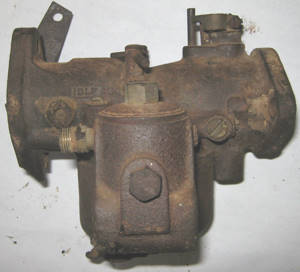

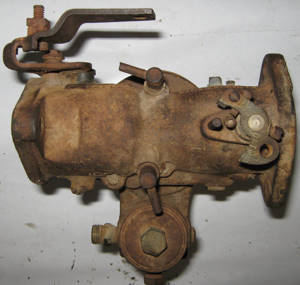

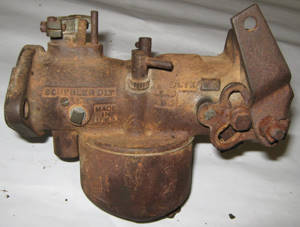

DLTX63 Carburetor used on D 161644 and up, sold as-is
as a core for parts or to rebuild, needles, choke, and throttle
open and close, bowl nut threads are good, has brazed repairs
to mounting flanges, $100

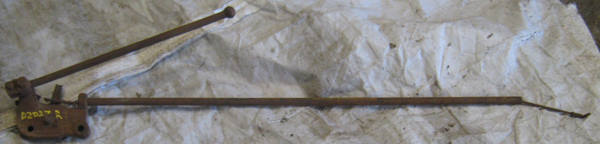

D1772R Water Feed lever (Full length, has been cut
in the middle to make for easier removal and reinstillation, you
will need to thread the two middle parts and connect them back
together), $40
-

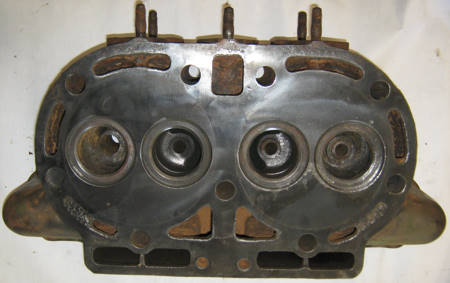

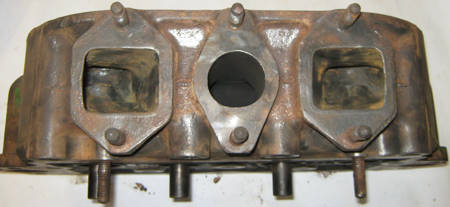

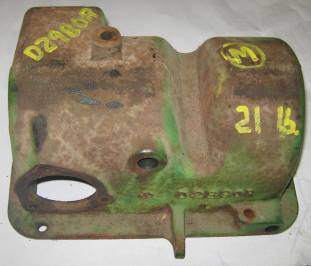

D280R (AD34R) head, used D 30451-109943, no visibole
cracks or repairs, will need new seats and other machine work,
as-is, $150
294R Manifold stud, 1/2" x 1 11/16". both
for $8
264R Lead Washers for use under head nuts, new, $2.50
each

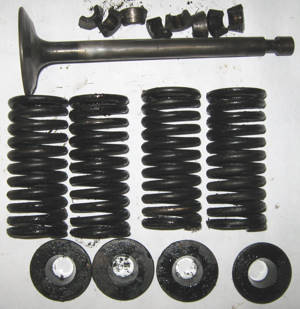

D896R Lock for valve stem, $5 each, several available
485R Vaqlve Spring, $5 each
D895R Valve Spring Cap. $4 each
Two original D489R striaght compression releif valves.
The one on the left has part of the shaft broken off. Both need
to be loosened up, $100 for the pair
-
-
-
-
-

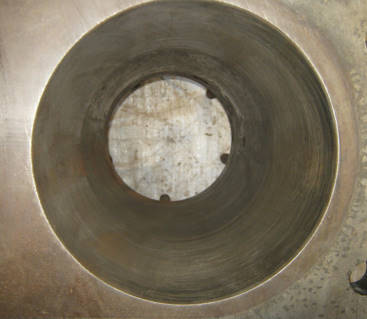

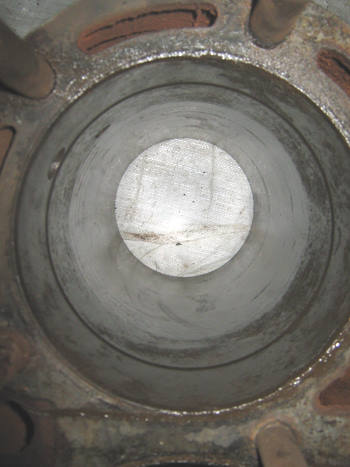

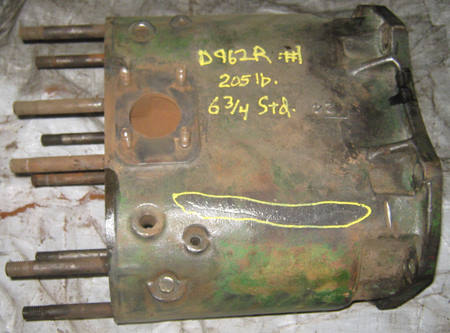

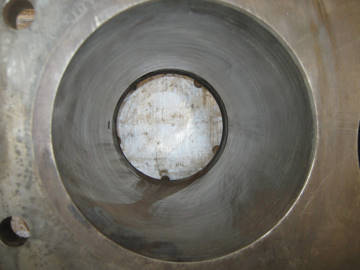

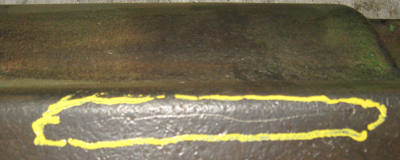

D962R (AD391R) Block #1 , used D 53388- 109943, 6 3/4
inch standard bore, one bore has a slight amount of pitting at
the top end, which should not affect performance, other bore is
smooth, no repairs, but there is what appears to be an unrepaired
freeze crack on the top of the block (outlined in yellow), no
other cracks noted by visual inspection, as-is, $300, pick up
here or can ship truck freight
-
=
-
-

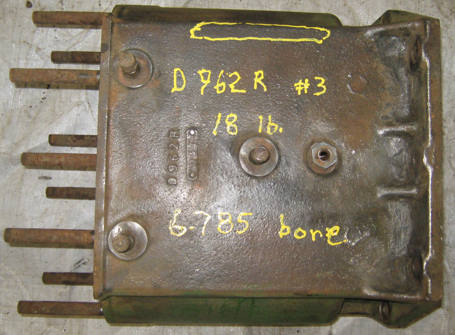

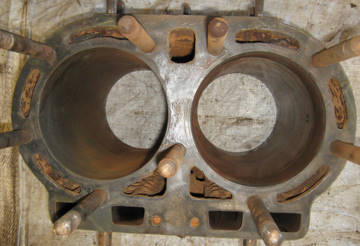

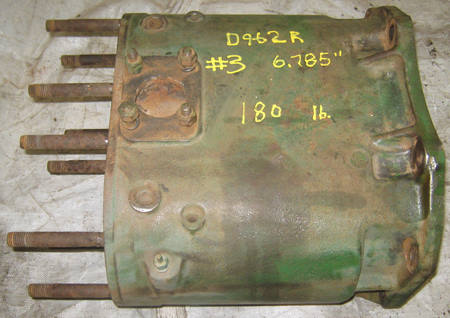

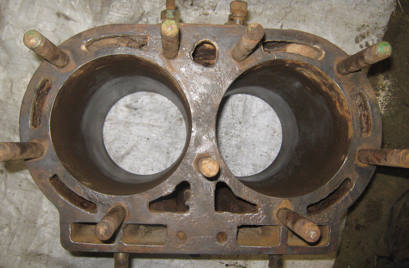

D962R (AD391R) Block #3 , used D 53388- 109943, 6 3/4
inch bore, bores measure 6.785 which indicates .030 over, both
bore have good deal of pitting at the top end so you would want

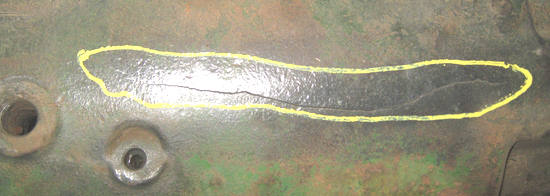

to either bore larger or sleeve the bores, no repairs, but there
is what appears to be an unrepaired freeze crack on the bottom
of the block (outlined in yellow), no other cracks noted by visual
inspection, as-is, $200, pick up here or can ship truck freight
-
-
-
-

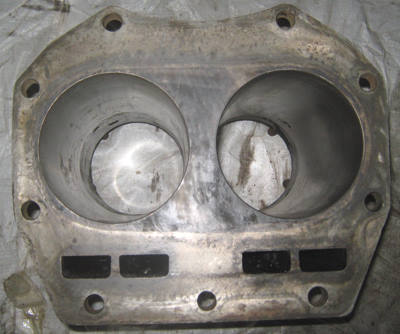

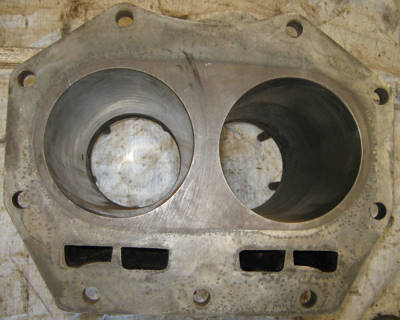

D962R (AD391R) Block #2, used D 53388- 109943, 6 3/4
inch standard bore, one bore has a slight amount of pitting at
the top end, which should not affect performance, other bore is
smooth, may want to rebore and mating surface for head will need
to be surfaced, no repairs, and no cracks noted by visual inspection,
as-is, $400, pick up here or can ship truck freight
-
-
-
-
D2R (AD64R) Block, used D 30400- 53387, 6 1/2 inch
standard bore, bores are pitted and should be rebored or sleeved,
mating surface for head has two cracks and thin spot at one bore
as noted, top of block has welded repair, and no other cracks
noted by visual inspection, as-is, $300, pick up here or can ship
truck freight
-

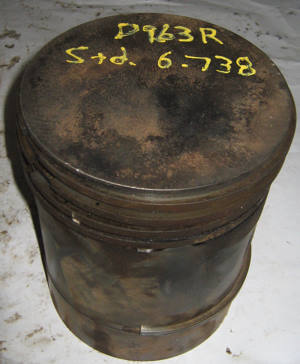

D963R (AD2690R) standard 6 3/4" bore pistons,
includes piston pins and used rings, $95 each used on D 533388
and up
-
-
D963R (AD2690R) standard 6 3/4" bore pistons,
includes piston pins and used rings, $95 each used on D 533388
and up

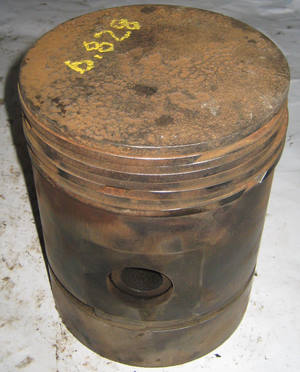

6 3/4 inch plus .090 Oversize piston, skirt diameter,
6.828, one only, $75
6 1/2 inch standard pistonring grooves worn, probably
not usable, but would make a good display with your tractor, $20
-
(AD2498R) D3190R connecting rod #1 with shims, end
cap, and bolts/nuts, bearing surfaces in good condition, $95
-
(AD2498R) D3190R connecting rod #2 with shims, end
cap, and bolts/nuts, bearing surfaces in good condition, $95
-
(AD2498R) D3190R connecting rod #3, no shims, end cap,
missing 1 bolt/nuts bolts/nut, bearing surfaces in good condition,
$60
-
(AD644R) D1601R connecting rod #1, no shims, 3 bolts/nuts
bolts/nuts missing, bearing surfaces in good condition, $75
-
(AD644R) D1601R connecting rod #2, bearing surfaces
in good condition, $90
-
(AD644R) D1601R connecting rod #3, no shims, end cap,
missing no bolts/nuts bolts/nuts, bearing surfaces is missing
piece, $20
-
D103R (AD101R) Connecting rod #1, good bearing and
bushing, includes end cap, all bolts, nuts, and shims, used on
D 30400-94800, 94901-103107, $120
-
D103R (AD101R) Connecting rod #2, good bearing and
bushing, includes end cap, all bolts, nuts, and shims, used on
D 30400-94800, 94901-103107, $120
-
D103R (AD101R) Connecting rod #3, good bearing and
bushing, includes end cap, all bolts, nuts, and shims, used on
D 30400-94800, 94901-103107, $120
-
D103R (AD101R) Connecting rod #4, good bearing and
bushing, includes end cap, all bolts, and nuts, no shims, used
on D 30400-94800, 94901-103107, $110
D2049R Shim pack to fitthe D103R connecting rod, $10
each pack (Two packs needed per connecting rod)
Good Connecting rod end cap to fit the D103R Connecting
rod, $20
D223R Pistin pin, setscrew type.nice and smooth, $15
D553R Piston pin bushing, still in end of a connecting
rod, $10
-
-
-

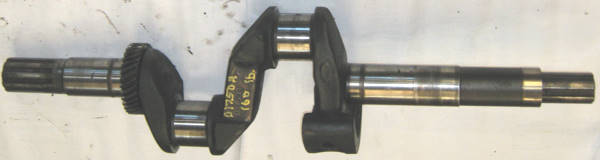

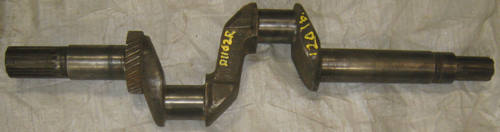

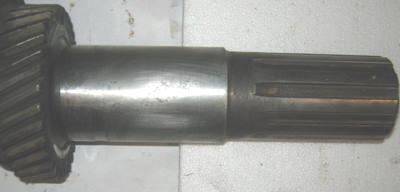

D1162R crankshaft #1, used on D53388-94800 and 94901-103707,
splines and bearings surfaces in very good condition, $200
=
-

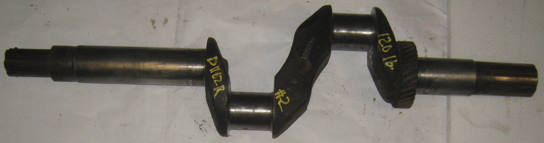

D1162R crankshaft #2, used on D53388-94800 and 94901-103707,
splines and bearings surfaces in very good condition, $200

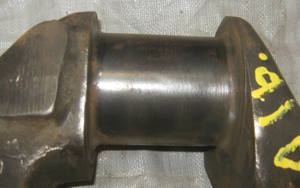

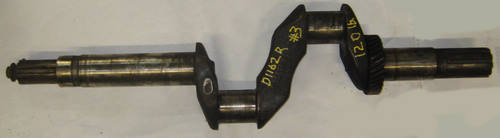

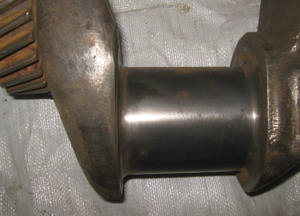

D1162R crankshaft #3, used on D53388-94800 and 94901-103707,
splines and maning bearings surfaces in very good condition, connecting
rod surfaces show light scoring and should be re ground, $100
Crankshaft bolt and washers, clutch end, $10
D738R, Clutch druiving disk shim washer (slides on
clutch end of crankshaft), $12
-

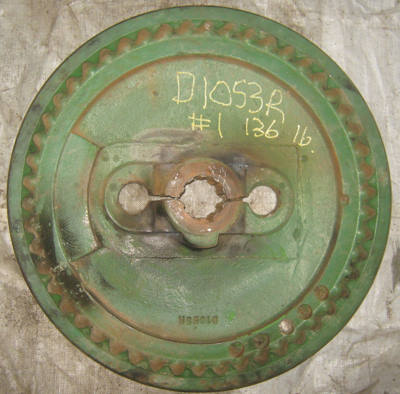

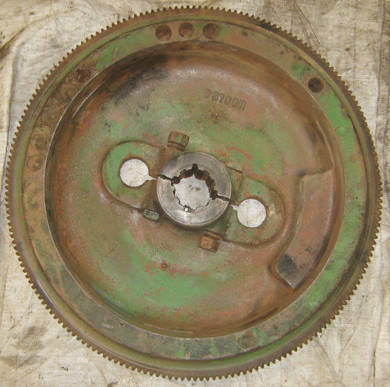

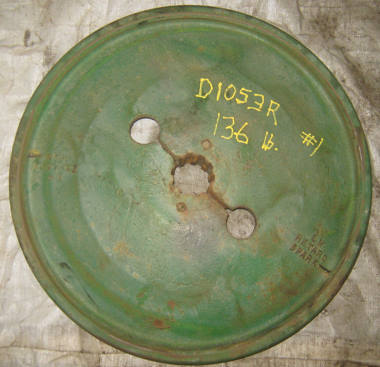

D1053R Flywheel #1, good splines, no cracks or repairs,
used on D53388-94800 and 94901-103707, $160
-
D1053R Flywheel #2, good splines, no cracks or repairs,
used on D53388-94800 and 94901-103707, $160
-

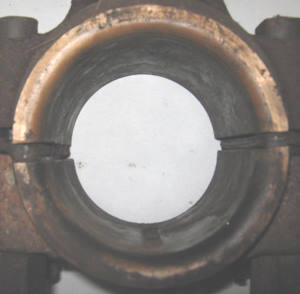

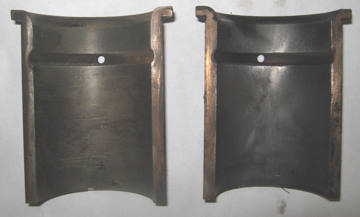

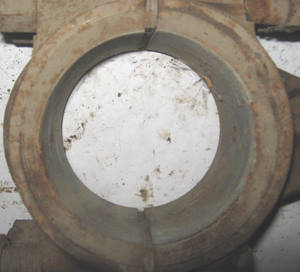

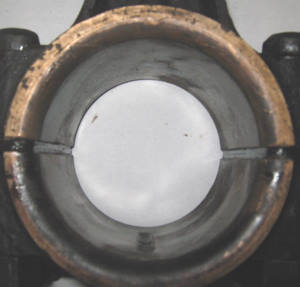

Front and rear views of AD635R Main bearings used on
all unstyled D in the D639R and D8R housings, good and usable
bearings, each half shell is $40
D2048R Shims Used D 30400-109943, enough shims for
two bearing halves, $20

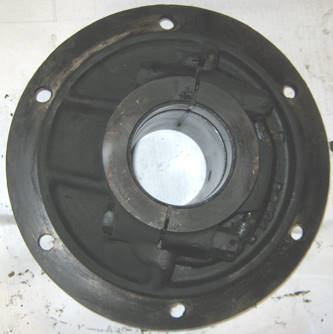

D639R (AD32R), RH Main bearing housing with D662R cap,
no breaks or repairs, used on D 30400-109943, $40
D174R RH Main bearing adjusting screw
D8R (AD33R), LH Main bearing housing with D662R cap,
no breaks or repairs, used on D 30400-109943, $40
D175R LH main bearing adjusting screw
D1054R Spacer cover, $20
D2123R spacer (AD2743R), used on D 53388 and up, $20
-
D3195R LH Main bearing housing $20
D3194R RH Main bearing Housing with bearing caps, shims
and bolts, $30 each
14H404R Head nuts, 3/4 inch thread, $1 each
Main bearing bolt and nut, $2 each set
Main bearing shim pack, $2 each
-
-

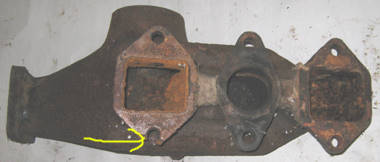

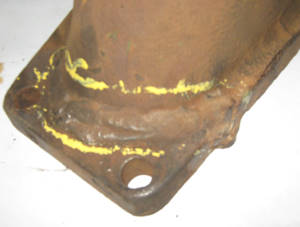

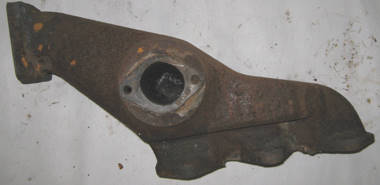

D42R Manifold, used on D 30400-109943, complete, but
two flange pieces are broken off but included, no other breaks
or repairs, as-is, $35
-
-
D42R Manifold, used on D 30400-109943, complete, but
some flange pieces are broken off but included, no other breaks
or repairs, as-is, $35
294R Manifold stud, 1/2" x 1 11/16". both
for $8
A577R Flywheel nut and Spade lug socket wrench, $80,
fits A, D, and G tractors, $80

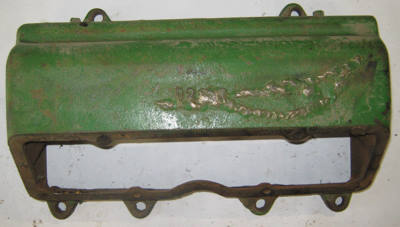

D837R Crankcase cover with AD840R toolbox (missing
lid), used on D 30400-130699, $40
D837R Crankcase cover with AD840R toolbox (lid is detached,
but included), used on D 30400-130699, $40
D67R cam follower, no breaks or repairs, $30
D67R cam follower, has a well done welded repair, $10
D795R Cam follower shaft spring, New , $6 each
D190R Cam follower Shaft, $15
Bolt and Jam nut to hold cam follower shaft in place,
$6
-

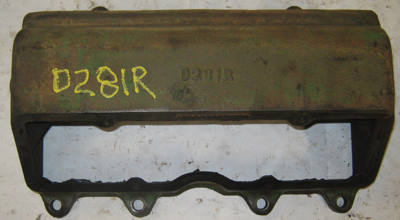

D281R (AD466R) Tappet Case, no breaks or repairs, $45

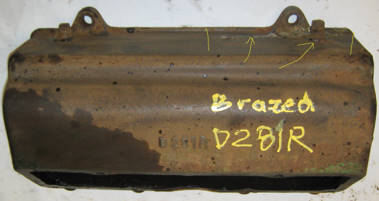

D281R (AD466R) Tappet Case, brazed repair as shown,
$15
Nice originla patina, D281R (AD466R) Tappet Case, no
breaks or repairs and D24R (AD639R) Tappet case cover, $75
D285R Tappet Case gasket, good used condition, $10
D24R (AD639R) Tappet case cover, ued on D 30400-100515,
your choice, $40
D346R Oil pipe, Governer to Tappet case, Used on D
30400-109943, $30, your choice
D179R Oil pipe Packing Nut, $10 each
AD84R Tappet Olier pipe, $30, your choice
-
D31R, Tappet Case End Elbow, no breaks or repairs,
$30, your choice
D6R Camshaft bearing, every good condition, $30 each
D103R Camshaft #1, all suraces in good and usable condition,
Used on D 30400 and up, $145
D103R Camshaft #2, suraces in good and usable condition,
some small voids, Used on D 30400 and up, $120

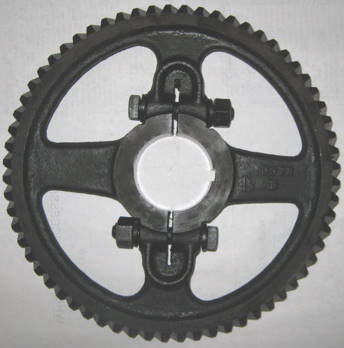

D37R (AD98R) Cam gear with bolts, very good condtion,
$100
D88R (AD179R) Tappet Lever, complete, good condition,
$35 each
Tappet Lever spacer, $2 each
D376R Tappet Lever Spacer Spring, $10
D193R Tappet lever shaft, $10
Bolt and jam nut to hold D193R shaft in place, $5 each
Welch plug, ends of Tappet lever shaft, $3 each
D214R Tappet Rod, used on D 30400-109943, $15 each
#1 -
#3
-
#2

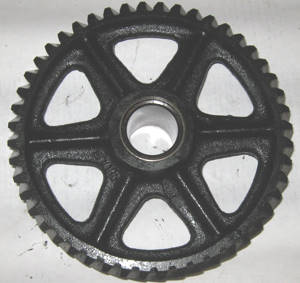

D71R (AD99R) idler gear, good bushing and teeth, no
chips or breaks, $50, your choice
F1743R Dowel pin, AD174R Spindle with dowel pin, and
D1662R nut, $40
-
AD700R Oil strainer assembly #1, used on all D's, D1670R
casting has no breaks or repairs, strainer body has some repairs,
$25
-
AD700R Oil strainer assembly #2, used on all D's, D1670R
casting has no breaks or repairs, strainer body has some repairs,
$25
-

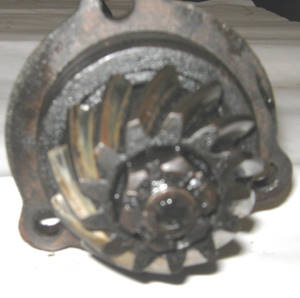

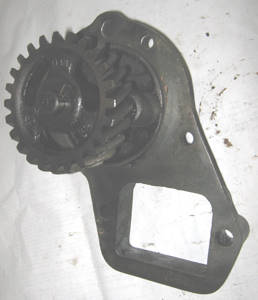

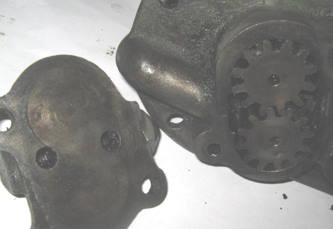

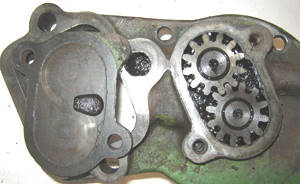

Oil pump, complete, D14R pump body, D29R cover, D38R
drive gear, with good gears, no scoring on plate, and good drive
gear, $120
-

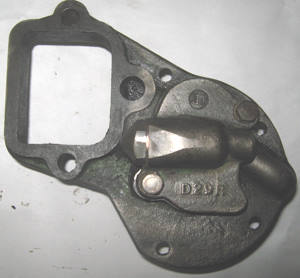

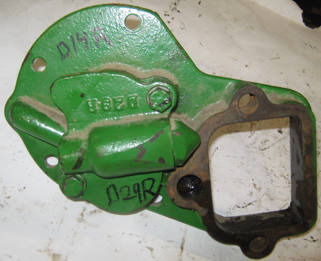

Oil pump, complete, D14R pump body, D29R cover, no
drive gear, with fair pump gears, $80
-
-
Oil pump, D14R pump body, drive gear has some pitting
but may be usable, good pump gears, $70

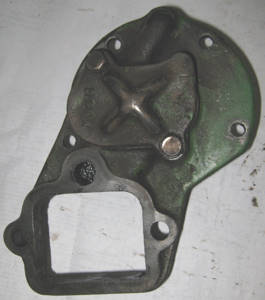

S29R cover with regulator parts, $35
A522R Oil filter cover with nut, spring, and plate
(missing snap ring), $40
=
Oil filter bottom that is used with the metal oil filter,
$15
D793R and D794R Oil level test
cock, $10
Oil filter head, $45
AA2096R Oil filter outlet, $15
-
D1916R Ventilator Pipe Elbow, $35, your choice
-
D3041R tee in oil filter head, $10
C572R oil jet to governor, $18
D815R Oil Indicator Body, complete with all internal
parts, no breaks or epairs, but all three need disassembly and
cleaning up, sold as-is, $35, your choice
Internal parts for the D815R oil indicator, $16
D456R elbow, $10
AD41R RH main oil line, used on D 30400-109943, $25
AD44R LH main oil line, used on D 30400-109943, $25
D274R Oil line Discharge Pump to Indicator with two
fittings, used D 30400-109943, $25
AD1967R Oil pipe for LH Main bearing, $20
AD1966R Oil pipe to oil indicator from filter to case,
$20
AD1965R oil pipe to oil gauge with fittings, $15
D1785R Oil line to tappets, Used on D 109944 and up,
$25
-
-
-

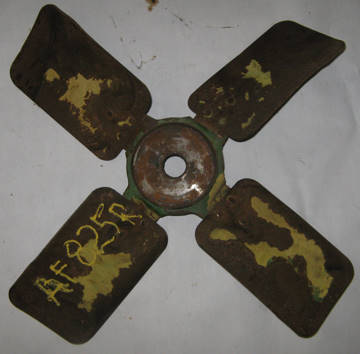

AF825R Fan with cups, very good condition, $45, your
choice
C1530R, Front Fan Bearing Dust Shield, Used on D 109944
and up, $10
D396R Fan disks in great condition, $50 each
D399R Friction washer, $7
A4059R Fan Drive Cup, $9
D400R Drive Disk Key, $10
-
D378R Fan Friction Spring, $10

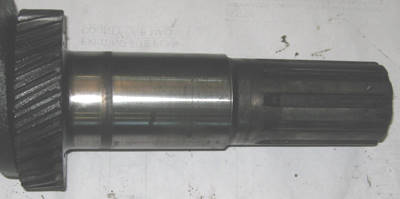

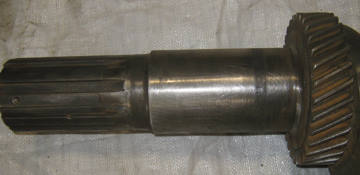

D168R (AD1740R) Fanshaft, Used on D 30400-109943, Good
Keyway and Good bearing surfaces, $25
-

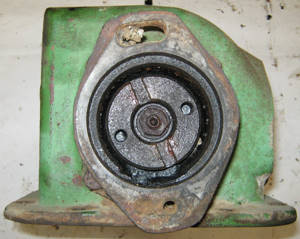

D168R (AD1740R) Fanshaft with D654R housing with bearing,
and good fan bevel gear, Used on D 30400-109943, $120
New JD7654R three piece fan bearing set used on many
different Deere 2 cylinder models, $36
-

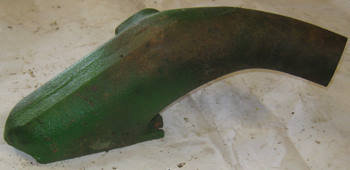

D1218R (AD545R) Water pipe from Cylinder to Radiator,
Used on D 68880-109943, No Breaks or Repairs, $75, your choice
-
D965R AD393R) Water pipe with D653R (AD331R) cover
used on D 53388-68879, $100
D215R Speed control crank, used onD 30400-109943, $10
D618R Carburetor Control Rod Spring, 12 inches long,
new, $15
-
-

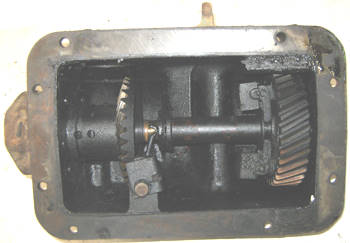

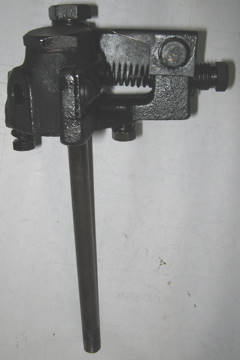

D21R Governer Case complete with all internal parts
in good condition, everything moves freely as it should, gears
are in very good condition without excessive wear. Note that there
is a small chip in the sliding sleeve that should not affect performance.
$200
-
D21R (AD300R) Governor case, used on D 30400-109943,
no breaks or repairs, $40
D401R Governor Case End Elbow, has good brazed repair,
$20
-
-
Governor assembly, complete withgood drive gear and
bevel gear, everything rotates or moves freely as it should, some
cleanup is needed, used on unstyled D 130700 and up and all styled
D, $100
D500R (D500) Governor bevel gear with straight teeth,
good condition with no breaks or repairs, $40
C902R, F3326R Governor weight pin, new, $5 each
D69R Gobernor gear with two D60R weights, the casting
is broken at the pin that holds one of the governor weights, sold
-as-is, $25
-
D831R cover, $15, your choice
D34R Governor fork in good condition with no breaks
or repairs,the pin will need to be removed from the fork, $30
AD2810R (D823R) Magneto drive flange, $15
D824R RH Governor shaft bearing housing, $15
AD2822R (D830R) LH Governor shaft bearing housing,
$15
D505R Magneto Drive Collar, $10, shows some wear
2152R Magneto timing plate, $15
132R clamp timing plate, $5
D1367R (AD2823R), Bearing race for governor, $10
JD7657R Governor bearings, $10 each, 2 available
D2891R bearing housing, $20
A43R drive flange, $20
Inside lever, shaft , and D1696R arm, $20
D1696R governor arm, $15
D1962R Support, $5
D2980R Governor case, no breaks or repairs, $40
-
-
D2890R Governor case. Note that part of the casting
for one of the oil pipes is broken off, but the missing piece
is included, Free with any order
D1959R lever, $20
D2942R Control rod bracket, $8
D1961R Contol crank, $8
Controls, D221R clutch operating lever, D266R Control
Quadrant (small piece broken at tube), D87R Speed control lever,
D247R Tube, D412R Speed Control rod, $40
More controls, with D226R control Quadrant, $35, your
choice
Control, with D2027R control Quadrant, $30
