John Deere Model M Wheels, Steering, Front axle
-

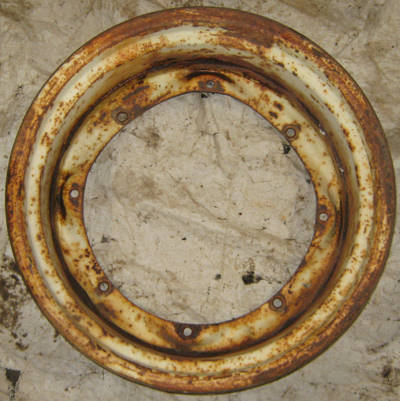

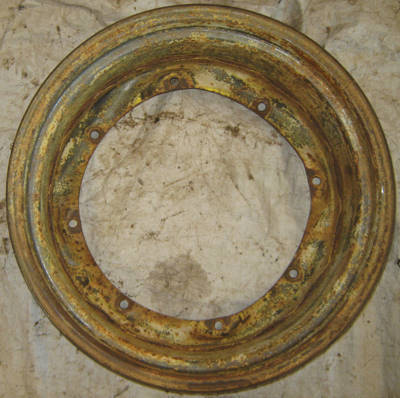

AM3478T 8 x 24 rear rimn #2 excellent condition, this
is a Californina rim that has never had calcium chloride in it,four
mounting holes are enlarged, $375
-

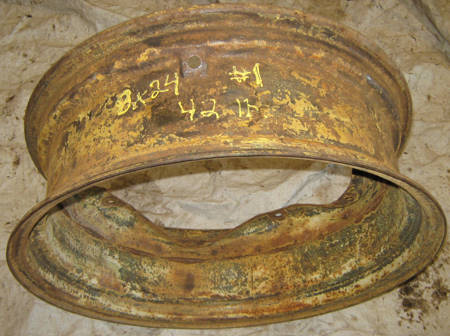

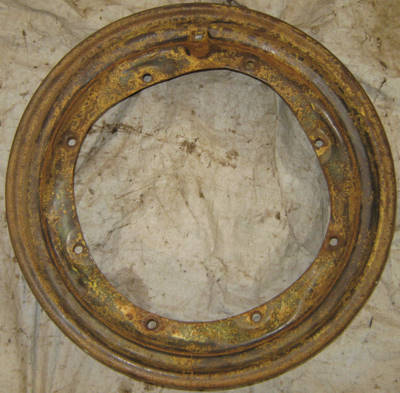

AM3478T 8 x 24 rear rim #1. very good condition, will
clean up nmiucely, all 8 mounting holes are good, $325
-
AM3478T 8 x 24 rear rim #3. rim is in poor condition
with severe rust through at valve stem area and one other area,
wavy ring is good, all 8 mounting holes are good, if you are a
good welder, you could bring this rim back to life or just use
the wavy ring on a new rim, lots of work, but priced accordingly
at $50
=
-
M3801T Special rim bolt, 9/16 x 2 1/4", $4 each,
limited amount available
M374T Nut lock. Out of stock
M375T, Special rim nut, $2 each
3800T Special rim bolt, 9/16 x 3 1/4", $4 each,
limited amount available
(T10171T) M2648T (Sub for M1793T) Rear hub for MT,
40T, 420T,W, 430T,W, some 1010 rear axles, $50 each, two available
This washer and spindle nut will fit all M, MI, and
MT front wheels/hubs:
-
M824T Special Tabbed Washer, $3
14H534A Castellated Spindle Nut, $3
-
-
AL2180T Steering wheel #4 or #5, $40, your choice
AL2180T Steering wheel #2, good rubber, but slightly
bent at rim, $25
AL2180T Steering wheel #3, $40
Special Nut to hold steering wheel on shaft, $10

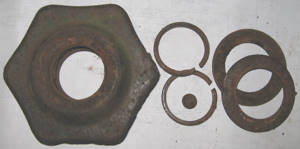

AM439T Lock knob, two M593T Snap rings, two M592T Spring
washers, and 405R Ball. complete set, $45
AM438T Steering tube #1, $35
AM438T Steering tube #2, $35
AM438T Steering tube #3, $35
M589T steering shaft #1, good condition, $30
M589T steering shaft #2, good condition, $30
M589T steering shaft #3, good condition, $30
-
AM438T Steering tube with M589T steering shaft, shaft
had been welded to the tube and is usable as it is, good threads
on steering shaft, $25
AM508T Housxing for steering gear, has a welded repair
on one mounting tab, otherwise in very good condition, $20
Tie rod with M649T tube, for fixed front end, needs
to be straightened, $35
Tie rod #5 with M649T tube, for fixed front end, slight
bend, $35
Tie rod #6 with M649T tube, for fixed front end, straight,
$40
AM496T Tied rod end, $10

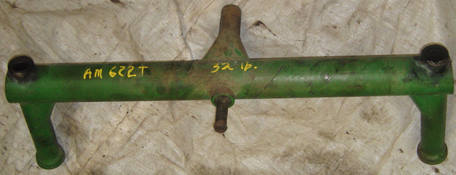

AM622T Fixed front axle for earlier M, no added bracing
and itncludes a good and original pivot pin, some bearings may
need replacement, $60 and can ship UPS
AM622T Fixed front axle for earlier M, has added bracing
and itncludes a good but not original pivot pin, two bearings
are intact, two bearings need replacement, $25 and can ship UPS

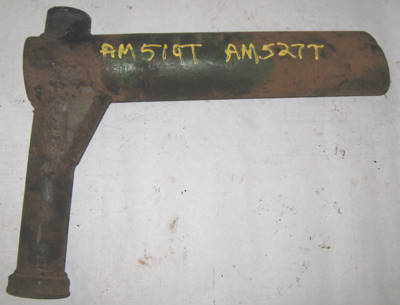

AM519T (Sub. AM527T) Earlier style knee, one good needle
bearing, one needle bearing should be replaced), $25
Early style clamp for adjustable front axle, AM521T
(Sub. AM528T), $15
AM387T spindles for earlier M front ends that use the
M433T or AL4617T steering arm, $45 each, two available
M435T Center steering arm, $20
AL4617T steering arm, $15
-
M433T steering arm, $20
L4624T Spindle Loick Pin for steering arm , $12
-

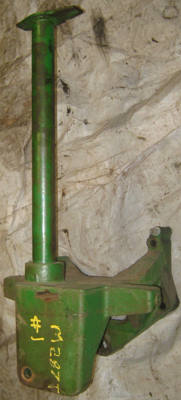

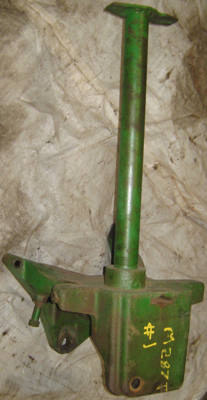

M287T pedestal #1, excellent condition with no breaks
or repairs, $135, can ship UPS
-
M287T pedestal #2, excellent condition with no breaks
or repairs, $135, can ship UPS
-
-
M287T pedestal #3, good condition with two well done
repairs as shown in the last two photos, $40, can ship UPS
M434T special bolt, set of four, used to attach front
end support to block, $10
M1593T pivot pin, show some wear, as-is, $10
AM819T (Sub AM2574T), vertical steering shaft #1, good
splines and threads, needs new steering pin (still availalble),
$25
-
AM819T (Sub AM2574T), vertical steering shaft #2, good
splines and threads, needs new steering pin (still availalble),
$25
-
Two views of AM508T (AM794T) Steering gear housing,
no breaks or repairs, $35
M736T (Sub. AM820T) Steering gear worm with M795T cover,
all ball bearings, races and snap rings, worm and bearings are
in good usable condition, $50
M736T (Sub. AM820T) Steering gear worm with M795T cover,
ball bearings, races and snap rings at one end only, worm is usable,
but pitted and worn, free with any order
Mis of M720T, M731T, and M722T metal shims, $3 each
-
M715T steering gear top cover, $35 each, two available
M825T Hub cap, $12.50
-
M979T Front wheel hub, no breaks or repairs, includes
both good bearings and retainer seals, $32 each similar to above,
several available
-
AM1463T spindles, $45 each
M1251T steering arm, no breaks or repairs, $50
Late style clamp for adjustable front axle, $15
-
M849T, steering gear support
(sub. AM946T), $25, your choice
M4377T (Sub. M842T) ,and JD8404T
Thrust bearing washer and Thrust bearing, $15
#1 M843T Spindle with M1171T Fork and two M1180T clamps,
$110
-
#2 M843T Spindle with M1171T Fork and two M1180T clamps,
$80
L4297T Front wheel weights for L, LA, and early M,
$300/pair, can ship UPS
L607T ewith nice 5.00-16 tire, there is one welded
repair on the rim, $60
G3
-
G1

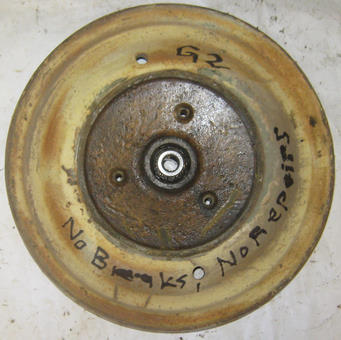

G2

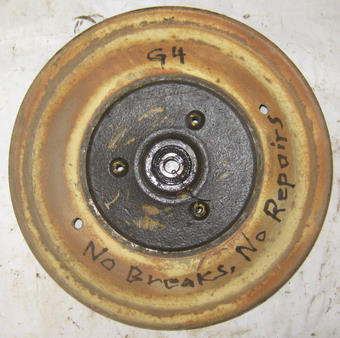

G4
L607T wheels, with no breaks or repairs,includes
bearings and bearing races, $70 each
-
L607T wheel #4, with a well done repair on the
inside rim (area circled in black), $50 with both bearings
and retainer
-
Two views of a L607T wheel with a weell done rim repair
on the inside edge, this braze could be ground down and should
not show once it is painted. $40
-
-
Both of these L607T wheels are unbroken, but both have
a barely noticable crack on one of the inner ribs, $45 each
-
L607T wheel without the holes for mounting a wheel
weight. No breaks or repairs, no bearing races or felt retainer,
$35
-
L607T wheel #5 with no cracks, no breaks, no repairs
and nearly new 4.00-15 tire, $70
L607T wheel #1 with 5.00-15 tire, good tread, no breaks
or repairs on wheel, $70
L607T wheel #4 with 4.00-15 tire, good tread, but with
some weatherchecks, no breaks or repairs on wheel, $70
- -
L608T hub cap, perfect condition, no breaks or repairs,
painted and ready to mount, $95, your choice

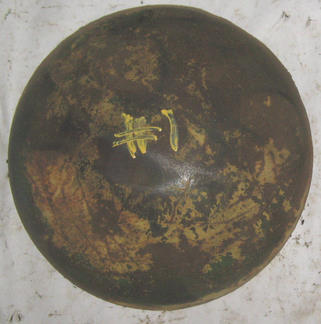

L608T hub cap #1, perfect condition, no breaks or repairs,
$80

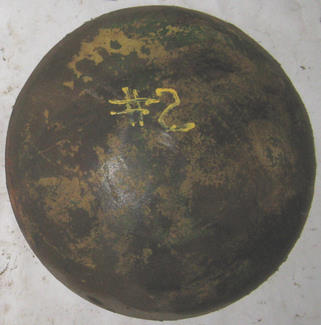

L608T hub cap #2, perfect condition, no breaks or repairs,
$80
L608T hub cap #3, welded repair on inside, the crack
shows on the outside, $25
L608T hub cap #4, perfect condition, no breaks or repairs,
$80
L608T hub cap #6, perfect condition, no breaks or repairs,
$80
L608T hub cap #7, perfect condition, no breaks or repairs,
$80
L608T hub cap #8, perfect condition, no breaks or repairs,
$80
L608T hub cap #9, crack between yellow lines, $35
-
L608T hub cap #5, no breaks orcracks, his dfifferent
mounting welded on the back side, fits the same as a non mofified
hub cap, and looks the same from the outside once it is mounted,
$40
-
L608T hub cap, barely noticeable crack between the
yellow lines, $40
L608T hubcap, with well done welded repair at area
circled in yellow, $45
-
Broken and repaired hub cap, as-is, $10, your choice
Correct original bolts to attach hubcaps, $1 each
-
AM953T M979T Front wheel hub, no breaks or repairs,
includes both good bearings and retainer seals, $25 each similar
to above
M825T Hub cap, $10
-
11.2-24 Harvest King tire, shows
some wear but held air when removed from tractor, $50
B F Goodrich 4.00-15 tire, $20
-
Two 5.00-15 tires, $20 each
Pair of Wilson Nutwell Fesno CA JD30 Rear weights to
fit all M, 40, 420, and 430 tractors that usde the wavy rims.The
are curved on the back side to perfectly fit the curve on the
M62T and M 1549T rear wheel hubs.The weights weigh around 260
pounds each and would make an interesting California addition
to your tractor. $200 for the pair and can ship truck freight
or you can pick up here.
M343T rear weight, $90 each,
145 pounds, can be shipped UPS
Set of four 3/4 inch weight bolts, $12
