John Deere Model M Brakes, Clutch, Transmission





-

AM1596T Propeller shaft for early M., straight and all splines in very good condition, $95




AM1597T Brass pilot bushing for propeller shaft and flywheel, fits early style propeller shaft, $15

M335T Clutch spring, $15

M226T Return Spring, $7

AM322T clutch shaft, $25

AM317T Brake pedal shaft, nice and straight, $30

AM317T Brake pedal shaft, $10, slighly bent will need straightening

M57T Carrier with AL2116T throwout bearing, $50
(For comparison, Deere dealer price for M57T is 333.50, for AL2116T is $54.00)

AM 320T cam, $15

Clutch throw out yoke with AM320T cam, $25

Pressure plate, $25

New Vel-Lok clutch facings, $18/pair

Used and usable clutch disk, $20, your choice


AM321T Clutch rod, $15

Clutch pedal, $20

M brake pedals, $7 each
M brake latches, $5/pair

Brake rod with yoke, one available, $12

Brake rod without yoke, two available, $9 each

M brake discs, $12 each, usable lining, but may need to be cleaned in solvernt.

M Brake pack, $20 each



M48T, brake quiill, $10

M167T, M168T, or M169T shim for M48T quill, $2 each

MT brake pack, $35

M826T, MT brake cover, $20

M953T brake pedal rod, $10, two available

AM852T, MT brake disk, 2 available, $7.50 each


Center (torque) tube for M, can ship UPS (130 pounds), $60

Set of six bolts, block to torque tube, $12

Bolts, torque tube to tranmission case, $8

-

Two views of AM256T belt pulley attachment with paper pulley #2, $200

-

Two views of AM256T belt pulley attachment with paper pulley #1, $175

-

Two views of AM256T belt pulley attachment with paper pulley #3, $120

-

AM245T and M127T Yoke and belt pulley coupling, $12

M262T belt pulley shifter, $18

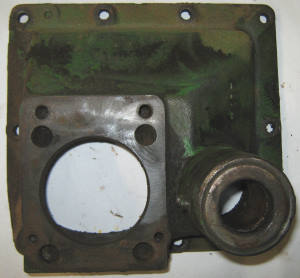

M344T Cover plate used on back of M45T when pulley is deleted, includes pin, $30

-

M344T Cover plate used on back of M45T when pulley is deleted, $20

- -

AM489T (M45T) Rear transmission cover in excellent cond, $45, similar to above with no breaks or repairs

M345T, special bolt at transmission rear cover. $2 each

M47T Input shaft quill, $7

M136T, M137T, M138T shim, $3 each

M143T, 27 tooth fourth gear, $20

M141T 36/27 Tooth cluster gear, $45

JD7938T bearing, $15 each

M145T, 17 tooth third gear, $15

M571T front washer, $7

M144T and M146T spacers, $4 each

M867T Powershaft for MT, $45

M130T Powershaft for M, MI, MC, $30



M134T coupling, $10

M131T cluster gear 42 and 20 teeth, $45

M151T, 37 tooth sliding gear, $25

M152T first and fourth speed sliding, 24 teeth, $20

M153T third speed sliding, 34 tooth, gear, $25

JD7939T bearings used in transmission on power shaft under M131T gear, $20 each (No longer avialable from Deere)

-

M139T pinion shaft with excellent splines, $160
M141T 36/27 Tooth cluster gear, $45
JD7938T bearing, $15 each, both $30
M143T, 27 tooth fourth gear, $20
M145T, 17 tooth third gear, $15

Special, input shaft and all gears, bearings, etc, as shown above for $240



9 tooth Pinion Shaft, $30 (7 tooth shaft also may be available)

Nice differential assembly with ring gear, $55

32 tooth ring gear, $40

Nice differential assembly with no ring gear, $25

9 tooth pinion with matched 41 tooth ring gear on complete differential assembly from a 40S, $80

-

-

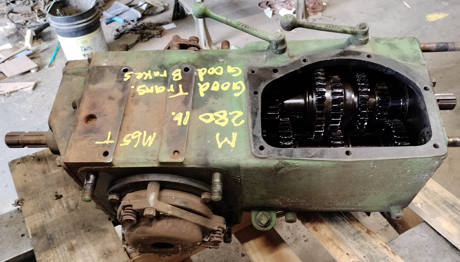

Special Complete transmission, differential, power shaft, and brakes stil in and on the M65T case. Gears are in great condition and still coated with heavy gear oil to keep them from rusting. The splines on the input shaft are in excellent condition. The brakes worked well before the tractor was parted. $350 and you pick up here or I can ship truck freight at cost.

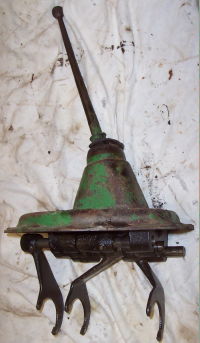

M shift cover, lever, and forks, $50

Pto shifter assembly, $25 with handle, $15 without handle

Cover and ball for pto shifter assembly, $8




M120T PTO/Pulley lever, $10

Main case similar to above, no breaks or repairs, but NO pto and pulley levers, $40 (130 lb)

M Final drive parts:



Complete LH final drive, good condition, your choice, $225

Complete RH final drive, good condition, $225

-

M62T hub and M209T six spline axle #1. Hub and axle are not worn and are tightly connected as they should be. Includes the M55T quill , bearing, spacer and nut/washer on both ends of axle, $135, Can ship UPS

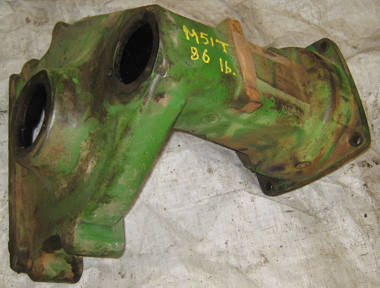

M51T Rear axle housing for M, No breaks or repairs, can ship UPS, $60

M pinion shaft with gear and bearings, $25

AM266T final drive gear, $40 (28 lb)

14H500A 1 1/2 inch hex nut and 12H320A lock washer, $12 for both

M1549T three spline hub, $45 (100 lb., can ship UPS)

M212T washer, $10

Bottom cover for final drive, $13

AM1528T Lock: $10

M55T quill, $30

M52T cap for final drive, $13

M54T cap for final drive: $10


M final drive housing, no breaks or repairs, $45, both left and right sides are available (88 lb)



MT final drive parts:

Uncut axle for MT, includes outer bearing, $90 (55 lb)

74 tooth M998T bull gear for MT: $45


For MT, M1001T quill, $16, 2 available

M997T Quill for MT, $12

M994T, M995T, and M996T Shims for M997T, $1 each

M1005T washer, $10

M1006T washer for inner end of MT axle. $3

M1007T snap ring

19H1756A bolt for inner end of MT axle, $3

MT M816T Quill, 2 available, $10 each

M1008T bottom cover for MT final drive, $25, two available

M866T Case for MT (185 lb, truck freight or pickup here only) $50
