John Deere Model M Sheet Metal and Other Exterior
Parts
M316T Pin (used on hood locks) four available, NOS
still in package, all four $8
-
-
-

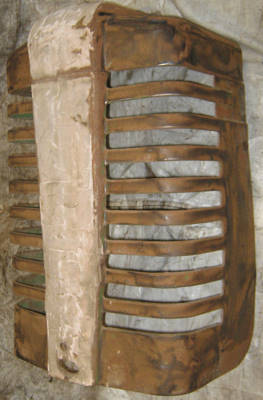

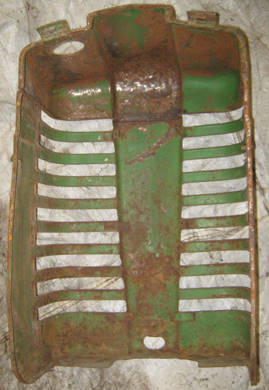

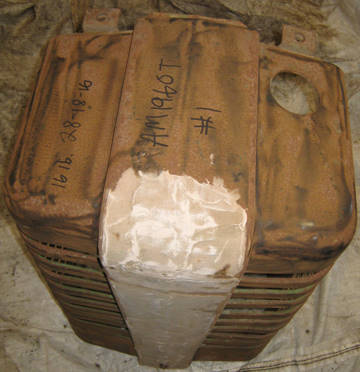

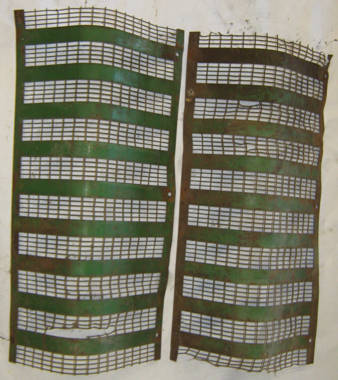

AM1960T Grille assembly with screens and fasteners,
overall very good condition, but will need some straightening,
no cuts, no rust through, $375
NOTE: All M hoods will fit Model
40, all 40 hoods will fit Model M

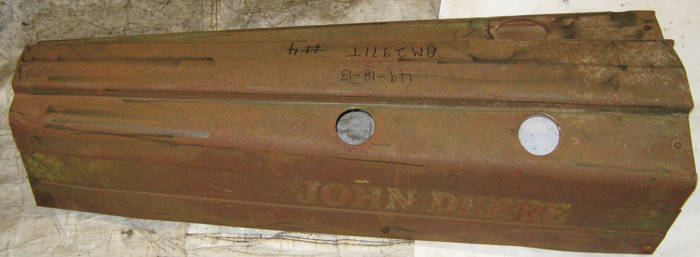

M/40 hood #3, not cut or rusted through, nice and straight,
$135, the best of the bunch

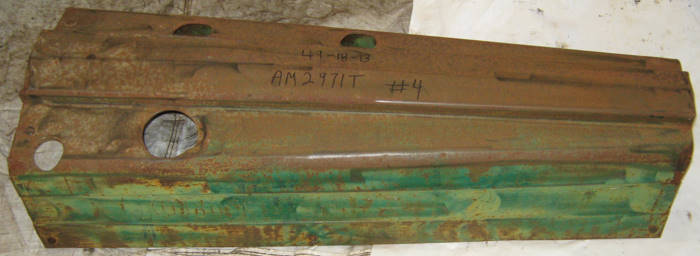

M/40 hood #4, not cut or rusted through, nice and straight,
$125
M/40 hood #6, not cut or rusted through, needs some
straightening, is missing one side of the brace, $100
M/40 hood #2, not dented or rusted through, but exhaust
hole has been cut bigger, $75
M/40 hood #1, not cut or rusted through, needs some
straightening , brace needs repair, $75
-

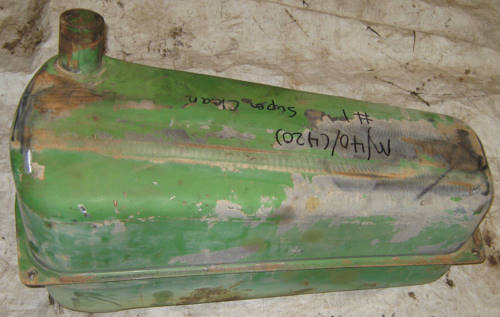

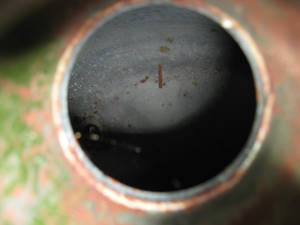

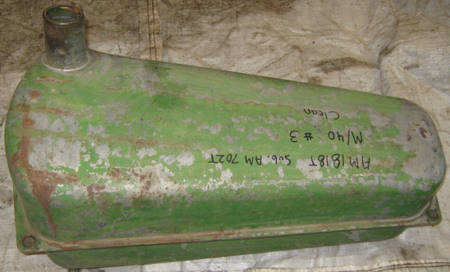

AM1818T Fuel tank #4, No leaks, no rust through, no
dents, very clean inside, the best of the bunch, $225
-
AM1818T Fuel tank #1, No leaks, no rust through, but
will need some cleaning and the soldering at the fuel neck, $135
-
-

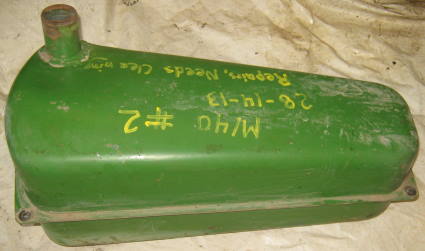

AM1818T Fuel tank #2, No leaks, has soldered bottom
repair and soldered repair at filler neck, lots of gunk inside
and will need some cleaning, $95
-
AM1818T Fuel tank #5, No leaks, no rust through, fairly
clean inside, came from a running tractor, filler neck needs resoldering,
outlet has been repaired, $125
Gas cap #1, no dnets, $9. the nicest one
-
Nice gas caps, no dents, $6 each
-
Dented gas cap, similar to above $4
\
Safety type gas cap, $6
-
Sediment bowl, good, but needs cleaning, $10 each,
your choice
-
AM957T left hand battery door #1, not bent, $60
-
AM957T left hand battery door #2, not bent, $60
-
AM957T left hand battery door #2, slight straightening
may be in order, $50
-

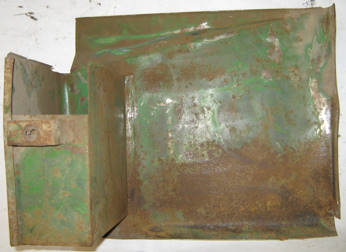

AM358T Tool box/Right side battery cover #4, no cuts,
no rust, no straightening needed, the best of the bunch, $80
-
AM358T Tool box/Right side battery cover #1, no cuts,
no rust, some straightening needed, $60
-
AM358T Tool box/Right side battery cover #1, straight,
but tool box is cut, $40
-
AM358T Tool box/Right side battery cover #2, straight,
butsome corrosion on cover, $40
-
AM394T Battery base, $40, your choice
-
AM477T Seat support/Tool box, fair condition, not the
part that is cut out, $30
-

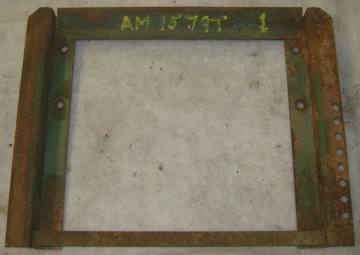

AM1579T Later M Seat support, very good condition,
$45
AM952T Seat bracket (MT, MI), $35
- -
M989T RH platform for MT, $15
M990T LH platform for MT, $15
M984T MT fender bracket, 3 available, no breaks or
repairs, $45
-

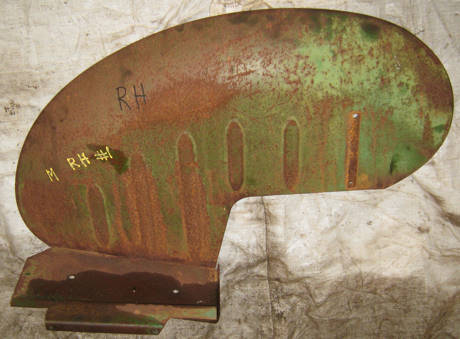

AM341T Right fender #2, nice and striaght, no corrosion,
$90, the best of the bunch
-
AM341T Right fender #1, nice and striaght, small amount
of corrosion as shown in right photo, $50
-

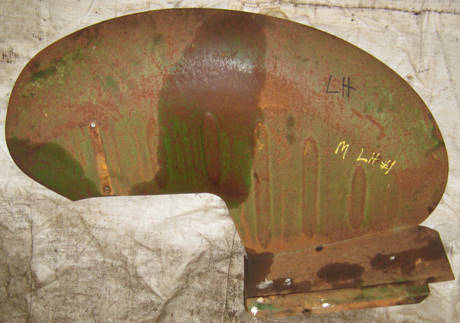

AM342T Left fender #3, nice and striaght, no corrosion,
$90, the best of the bunch
AM342T Left fender, nice and striaght, no corrosion,
$80
-

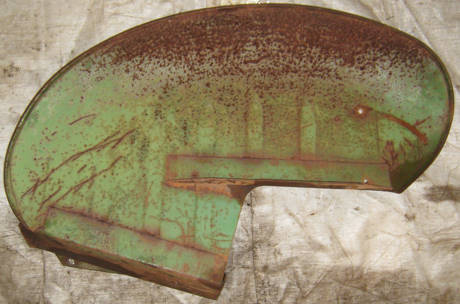

AM342T Left fender, needs straightening and there is
some rust through as shown at the yellow circles, $30
M372T L.H. platform that attaches to fender, $10, similar
to above
M371TR.H. platform that attaches to fender, $10, similar
to above
8H4165A - Bolt used from drawbar to final drive, with
nut, $5
Drawbar eyebolts, $15 each
AM470T lift link, $25
-
AM404T Hitch plate clevis, top and underneath views,
excellent original condition, $95

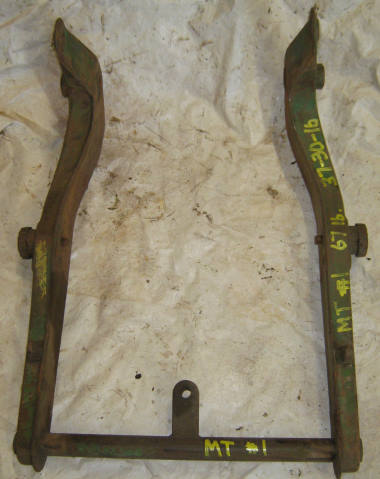

AM861T Drawbar assembly for MT, includes eyebolts and
working drawbar lock, no cuts, repairs, or modifications have
been made. It will be hard to find a nicer original drawbar than
this one, $225
Usable M drawbar #6, missing the drawbar locks, $50,
can ship UPS
Usable M drawbar #3, missing the drawbar locks, has
some welded repair, $40, can ship UPS
-
Usable M drawbar #2, with some added pieces, includes
drawbar eyebolts, $35, can ship UPS
-
Aftermarket three point hitch attachment that bolts
onto existing drawbar and uses existing lift arms. Top link bracket
mounts over the belt pulley hole, Right hand photo shows setup
before it was removed. $125, can ship UPS
AM402T and AM403T M drawbar locking brackets, $15 each; $25/pair
5/8 x 4 1/2 bolt and nut fine thread for drawbar bracket,
$5 each
Mounting brackets that attach to steering support, $7 each
Mounting bracket at radiator support, $12
AM371T Air cleaner cap, no dents,
no cuts, no rust through, $35
-
Two views of an M/40 air cleaner
#3, no dent, full length air tube, $80
-
Two views of an M/40 air cleaner
#3, one small dent, full length air tube, $75
M412T air hose, $14
Air cleaner clamp with bolt and nut, $12
Air cleaner clamp without bolt and nut, $7.50
AB1626R (AB3477R) Oil cup #1 or #2, No rust, no holes,
$50
AB1626R (AB3477R) Oil cup #3,No holes, no baffle, out
of round, $25
AB1626R (AB3477R) Both of these oil cups have rep[airable
holes, as shown at the yellow arrows, $10 each
-

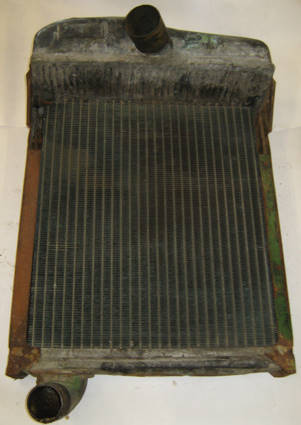

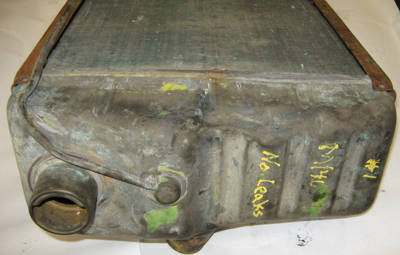

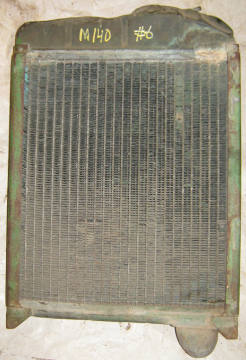

AM1771T Radiator #1 for M or 40, no leaks, coolint
system was filled with clean antifreeze when parted, $225
-

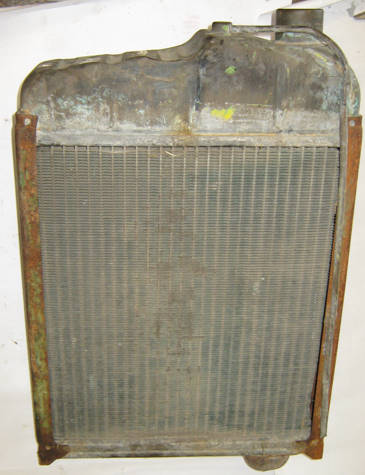

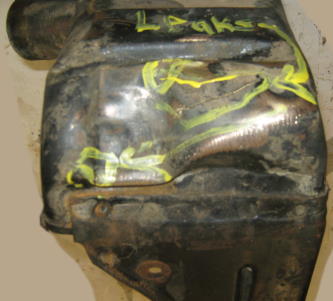

AM1771T Radiator #2 for M or 40, ast least two leaks
to repair at the dented portion of the top tank, core seems to
have no leaks, but there may be one or two minor leaks, pipes
good, $50
-
AM1771T Radiator #4 for M or 40, has one core leak
to repair at the white paint spot, needs cleaning, $60
-
M/40 radiator with the top pushed in, as-is, $25
Lower radiator brackets (may need new rubber cushion,
$5 each
On left, M856T Lower right mounting radiator bracket
for MT, $5
On right, M857T Lower left mounting radiator bracket for MT, $5
Fuel tank support, $7
M857T (upper), $10
M856T (lower in photo), $10
AM314T Front grille bracket,
$13
M serial plate only, no pedestal #52641, $25
Note that if you need only
the serial plate from one of the pedestals shown below, I can
remove it for you to save on shipping cost-
-

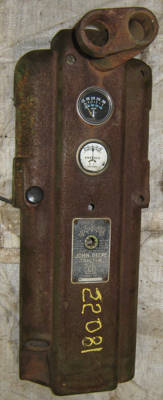

Sterering pedestal with MT tag # 28739, $35
Steering pedestal, M Serial #15625, $30
-
Steering pedestal, M Serial #41520, $30
-
Steering pedestal Serial # 18823, with ignition switch,
$40
Steering pedestal, Serial #18833, $30
Steering pedestal, Serial #14241, $30
Steering pedestal, Serial #15287, $30
