John Deere Model M Engine Parts

-

-

TSX245 Marvel Schebler carburetor #2, disassembled, cleaned, and rebuilt, $265

- \

-

TSX245 Marvel Schebler carburetor #1, rebuilt and tested on a running engine, $259

To view the running engine before disassembly, here is a video:



The carburetor, short block, and head are from a Model 40, but will work just fine on an M:

-

-

To view the carburetor on the running engine before disassembly, here is a video:

TSX530 Marvel Schebler carburetor, rebuilt and tested on a running engine, $275

-

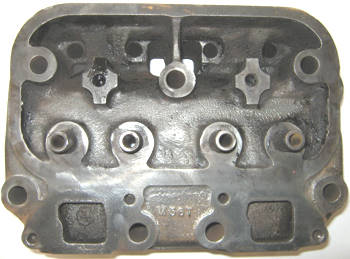

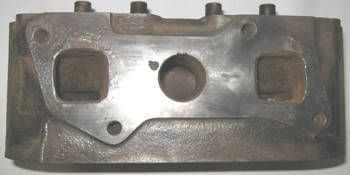

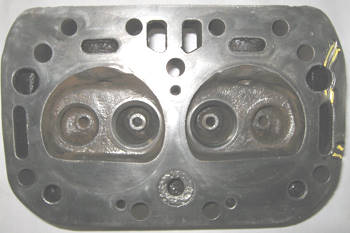

M56T head #4, the best on the bunch, four new valves, two new valve seats, magnaflux test is good, valves and seats ground, ready to go to work after your paint on the beadblasted casting, $325

-

=

M56T head . This came from a running tractor and is ready to go back to work. I have a video of it running before disassembly. It appears to have a repair on the top as shown at the two yellow arrows, but it does not leak and works well as it should. $250, can ship UPS, 40 lb.

To view the running engine before disassembly, here is a video:



-

-

Four views of a good head, that has some welded repair, $120

-

- =

-

Here is a low cost solution if you need a workable M56T head.
This one has been welded as can be seen in the photos, but it was used on the tractor after the repair. Several valve seats will most likely need replacement.As-is

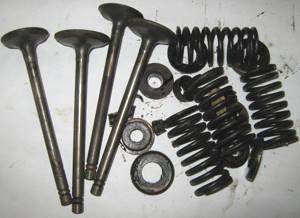

Head only is $30; Head with the pictured valves springs, and keepers is $60



M285T Head bolt, $2 each; set of 7, $10


M29T connecting rod, good condition, $25

-

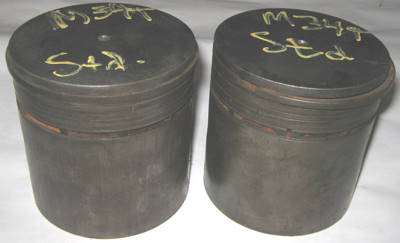

M34T 4 inch Standard bore M1837T pistons, $25 each

Set of .020 over aluminum pistons with used rings. The one on the right is in excellent condition, the one on the left may be usable, but has corrosion on the top surface only. Include pison pins. $40 for the pair.

-

M450T Good crankshaft #1 in very good condition, includes crankshaft gear, includes good used main bearings, $75 (45 lb)

-

M450T Good crankshaft #2 in very good condition, includes crankshaft gear, includes good used main bearings, $75 (45 lb)


M450T Good crankshaft, measures 2.396 main journals and 2.244 rod journals, crankshaft gear is pitted and you will need to replace it with yours (it presses right off) $35 (45 lb)

M450T Good crankshaft #3, crankshaft gear is pitted and you will need to replace it with yours (it presses right off) $35 (45 lb)



M450T Good crankshaft, no crankshaft gear, includes good used main bearings, $40 (45 lb)

M26T Main bearing cap, $8

19H1890A bolt for main bearing cap, $4

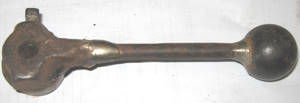

Original M hand crank with spinner handle, needs a new pin, $40

-

-

-

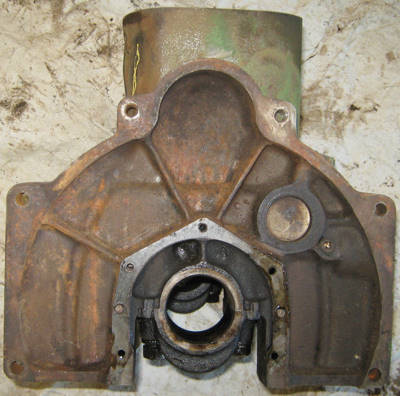

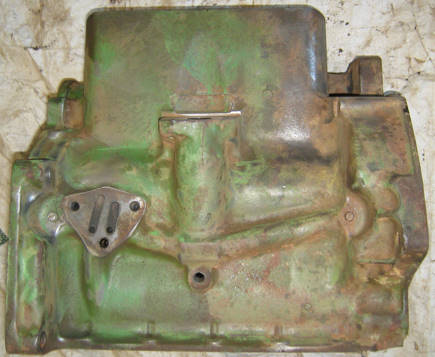

Six views of M64T block from an M, standard bore with nice and smooth bores, very nice condition, no breaks or repairs, magnaflux tested by my local machine ship and passed with no cracks detected, $400

-

-

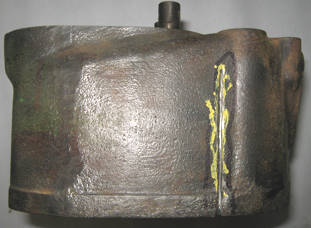

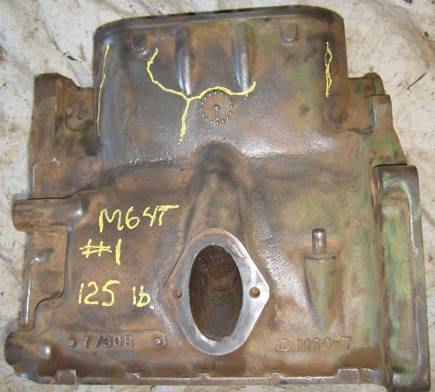

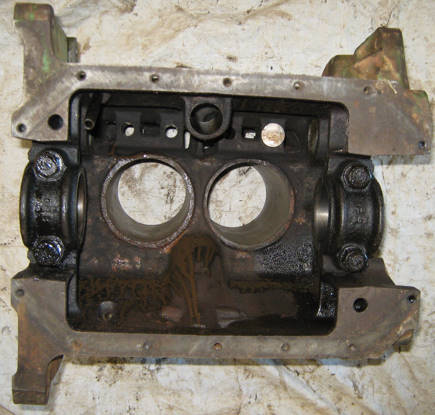

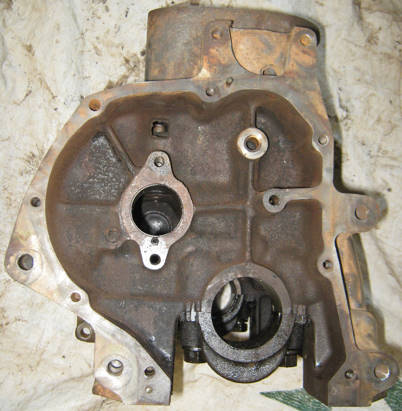

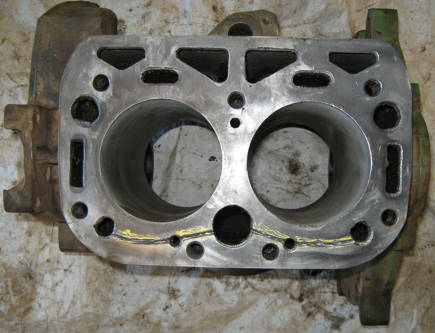

Four views of a repaired M64T block #1. It has a well done repair on a freeze crack as shown above. It is stnadard bore with nice smooth bores. Because of the repair it has a special price of $60 and is sold as is.

- -
Crankshaft pulley, $25, your choice

Valve cover studs (one has the special cut on the threaded area, very nice condition, $12/pair


AM753T External oil tube, $10; Straight fitting, $5, 90 degree fitting, $6

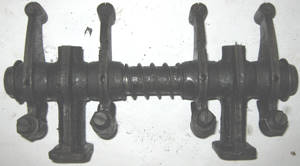

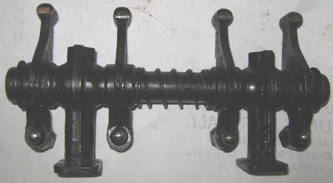

Rocker arm assembly, $70

AM274T End caps, $6 each

M76T Spring inside rocker arm shaft, $16

M72T rocker arm shaft, $8

M81T Spring, $5

AM272T or AM273T Rocker arm with adjusting screw, $12 each

AM271T Rocker arm bracket, $8 each

M49T Camshaft gear, $35

M13T, Thrust plate, $7.50

Camshaft, very good condition, $25

M push rods, $15 each


Cam followers, $6 ach, set of 4: $20

-

Used muffler in good condition, $15

-

Manifold #1, very good condition, $70

-

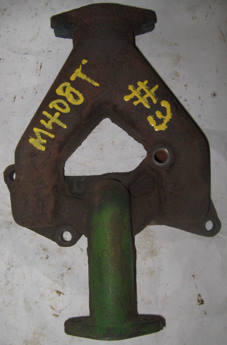

Manifold #3, very good condition, $70

-

Manifold #2, very good condition, $70

-

Manifold from a running engine, but the mounting holes are broken off the flange, otherwise good, $15

Rain cap, $5, your choice

Internal governor assembly, very good condition, $90, your choice

Internal governor assembly-gear is pitted, $25


M50T Governor housing, $20

M276T governor housing gasket, $7 (G)

L4197T Spring used on both governor housing and throttle linkage, $11

H281R throttle lever, no breaks or repairs, $20

H281R throttle lever, well done welded repair, $9

Carburetor to governor rod, $15


throttle rod with ring and yoke, $8

C1438R Spring on long throttle rod, $12

C1438R spring on long throttle rod, new, $7


Throttle linkage, $25

Oil dipstick, $10

Oil pump screen, great condition, $20



Oil pump with M38T pump body, pumps well, screen needs repair, $75

-

OIl pump with M38T pump body, pumps well, $60, your choice

AM284T Oil pressure gauge, very nice, $35

AM284T Oil pressure gauge, as-is, free with any order

-
Oil filter base and housing, has top plate, but no bottom plate, $35


Oil pan, $10

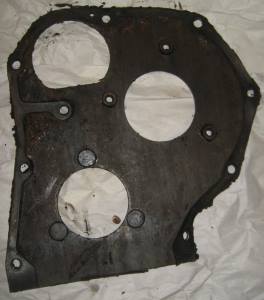

Front engine cover, MT, MC,MI, late M, $20

-
Nice Oil filler/Breather cap similar to above, may have some small dents, $12.50

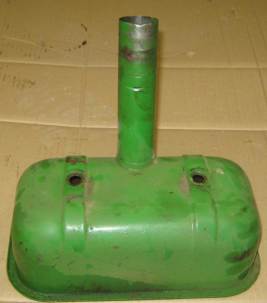

Valve cover for either M or 40, $20

Flywheel guard, $20

Timing hole cover, $5


M flywheel with ring gear, 90 pounds, can ship UPS, $60

JD8511T ball bearing and M1511T grease retainer (in flywheel and for propeller shaft), $15

AM1597T pilot bearing, used, $10

New in box AM1597T pilot bearing with retainer, $25


Good ring gear, $40

Pressure plate, $45



Used and usable clutch disk, $22.50, your choice

John Deere temp gauge, glass is cloudy, as-is, $10

John Deere temp gauge, glass is cloudy, free with any order


Upper water pipe, $20

Lower water pipe #3, fair condition, $13

Lower water pipe #4, fair condition, $13



-

M Radiator #3, tested with no leaks. It has had some repairs, and will need to be flushed. $100

-

Two views of M radiator #6, no leaks, it came from a running tractor and was filled with anti-freeze. It is not the prettiest, but will do the job, $150

-

M radiator #2, several tubes repaired, may need two more tubes sealed, $90

-

M Radiator #7, tested with no leaks. The bottom pipe has some corrosion. Core should be fllushedwill need to be flushed. $100



-

Radiator #4, tested with no leaks, it has a different bottom pipe that is shown in the last photo, $60

Lower radiator brackets (may need new rubber cushion, $5 each

On left, M856T Lower right mounting radiator bracket for MT, $5
On right, M857T Lower left mounting radiator bracket for MT, $5

-

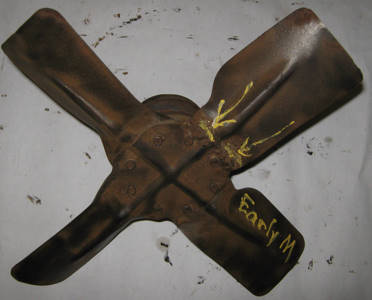

Very good fan assemby (Fits M below SN 27364), $75



- - -

Very good fan assembies, $60 each, your choice (Fits M above SN 27364)

New generator belt, $9
New fan belt, not available

Fan support bracket, $5
