LA/L Implements and
Parts
I have parts catalogs/setup instructions for most L/LA
implements. Free, just ask!
L18 Two Way Plow
Several views of the two plows
Mounting bracket that bolts to
front crosspiece and the two lift levers
Extremely rare L18 Two way plow. Only a few of these are known.
This one shows very little wear. It is complete except for the
rod that attaches them to the mounting bracket and the spacers
that slide onto the rod. These items can be readily made from
a solid rod and pipes of the correct diameter. Also included is
a copy of the setup manual. Each plow weighs 185 pounds and the
total overall weight on a pallet ready for shipping would be about
450 to 500 lbs. The plow could be picked up here or I have a trucker
who most likely will be able to deliver anywhere in the US-email
for details. This complete unit is $1250.00.
L640 Vegetable cultivator
Here is the rare LA 640 vegetable
cultivator, not quite complete, $150 (I have photos to show how
one is mounted on the tractor)
Clamps for the vegetable cultivator,
$10.00 each
Cultivator shanks with tip, $10
each
MOWER PARTS:
I have some parts available for mowers, email with
your needs, I can supply FREE parts catalogs, too.
Z1021H pulley half, $25 (5 available)
Correct original bolt set for two pulley halves: $8

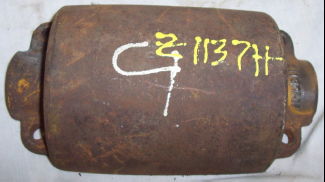

Z1137H pulley half, $25
Two pulley halves with some attached belting, $20
Mower lift lever, has some reinforcement, but is complete
and working, $75, can ship UPS
Mower belt, this one is pretty stiff and old, but would
make a good pattern for your belt, $15
Front mounting bracket, $40, our choice
Brace: $10
Frame: $25
Rod for mower, $30
Reproduction spacers for the wide driveshaft cover,
$8/ pair
Bracket, $5
Bracket to hold mower rod, this part bolts onto air
cleaner bracket, $8
Belt tightener parts for mower, $25, your choice
Older style belt tightener, $15
Mower part that attaches to front crosspiece, $15
Above two views of the main part of the mower, $80,
must pick up here
Mower lift lever, modified slightly, $10
CULTIVATOR PARTS:
I also have many parts available for the L10 (corn)
cultivator and the vegetable cultivator.
Cultivator lifting lever assembly, (similar to the
one shown above), $40
I have a few more cultivator parts and parts catalog/set-up instructions,
too.
L/LA PLOW PARTS
Hitch plates for L, $50 for both
Complete plow lifting lever assembly, excellent unmodified
condition, $125, can ship UPS
Lifting bracket, $10
Rolling landside, complete with mounting brackets,
$95

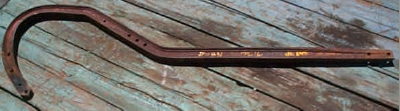

#647 Beam, $25, 75 lb
65 lb.
45 lb

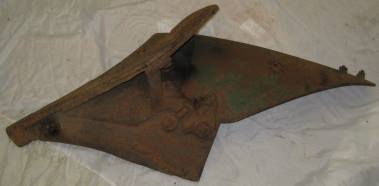

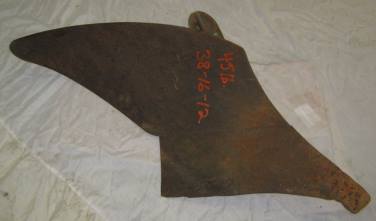

Above three bottoms, your choice, $25 each
Syracuse chilled plow bottom, $40
Don't know exactly what you need? I can supply a copy of the parts
catalog.
?? bracket, $20
