Parts for John Deere Model H

John Deere Model H Wheels, Pedestal, and Steering Parts



-

Convert your H to an HN with this complete kit. There were only 1100 HN's produced. Includes H760R (AH868R) pedestal with mounting bolts, steering gear, fork and shaft, and H765R (AH869R) wheel. Serial tag 15825 on H700R (AH789R) Main case is also included. The cast wheel has three small chips that will not affect performance and there are no other breaks or repairs. The serial tag is in very good condition, despite the poor quality of the photo. If you want to save on shipping costs, the tag can be removed from the main case. $800



9/16-18 lug nut for rear wheels, $1.50 each or set of six for $7.50

1/2-20 lug nuts for front wheels, $1.50 each or set of six for $7.50

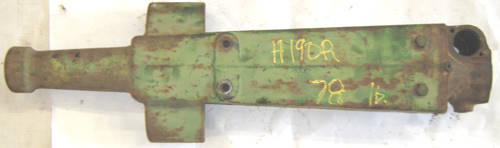

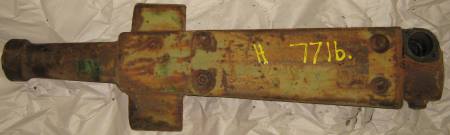

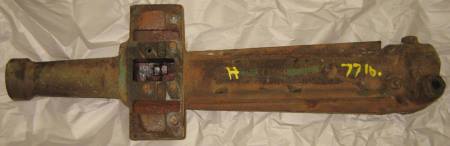

Two views of an H190R pedestal, $50, can ship UPS

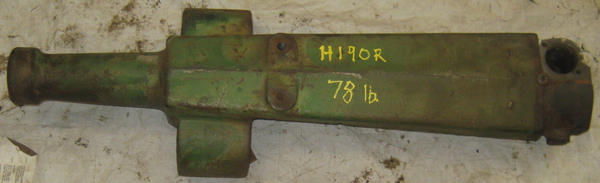

Another H 190R pedestal, $50

AH1072R Steering spindle, $40, note that one dust shield is partially gone

-

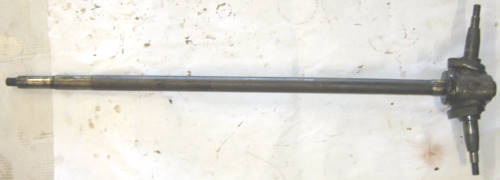

AH578R Steering shaft and worm, $50

H200R Steering sector gear, $60

H197R Steering eccentric bushing, $25

B3310R washer and F2664R nut, $4

H273R steering pedestal cover, $12

H269R steering bearing housing, $10


JD7364R Bearing for steering worm gear, $10

H277R top of steering pedestal, $8

Hub cap, H204R, $12

Hub for front wheel, later style, with bearings, $20. Hub cap, $12

H194R front wheel spindle nut, $12

Good uncut H axles, $60 each (42 lb each)

Stud, nut, and lock plate for attaching front end to frame, $2 each

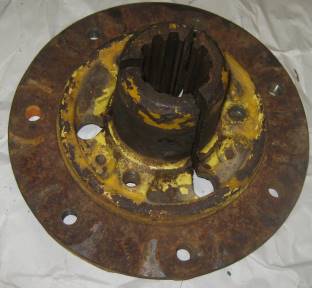

Rear wheel hub, H220R, $30 (25 lb)

Hub clamp, H221R, $15
