Parts for John
Deere Model H
John Deere H Sheet metal, Radiator, Drawbar, Air Cleaner,
and Other External Parts
AH639R Medallion, excellent condition, $45
AH639R Medallion, some pitting, no rust through, $27

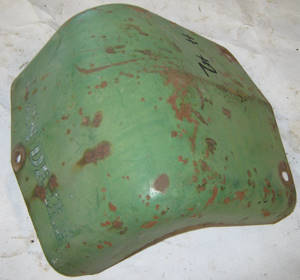

AH645R Hand start end cap, $30

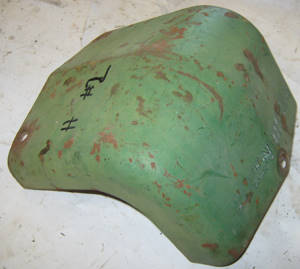

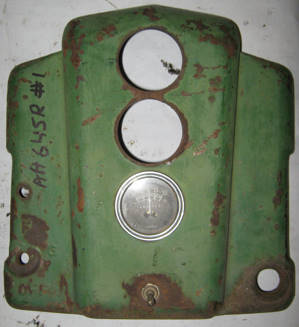

AH645R Electric start end cap #1, $35
AH645R Electric start end cap #2, has an unbroken shtter
control knob (but it will need to be loosened up), $40
-

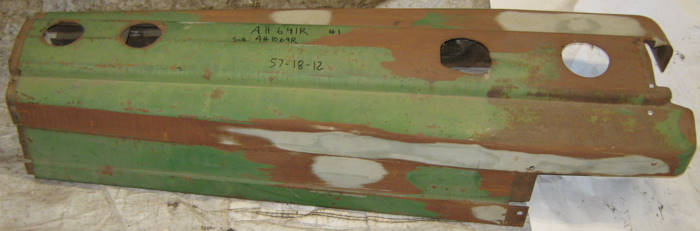

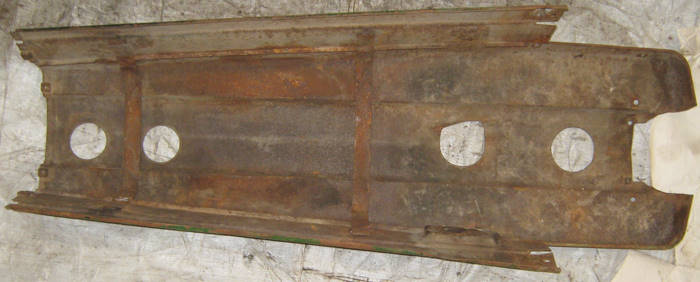

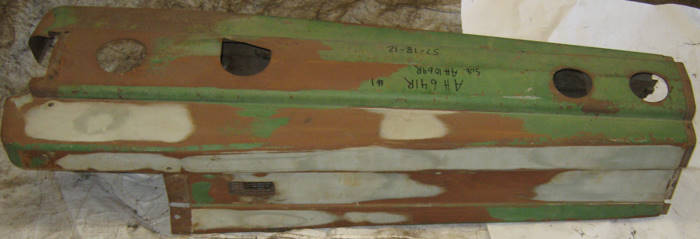

AH1069R hood #2, no cuts, two bottom edges need straightening
(see photo), one spot is welded, about 3 or 4 inches (see photo),
$120
AH1069R hood #1, some cuts, as-is, $30
-

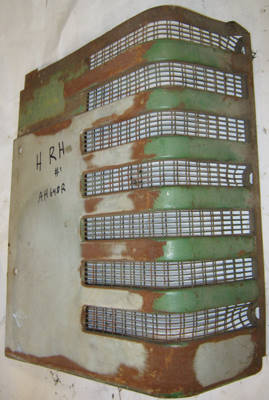

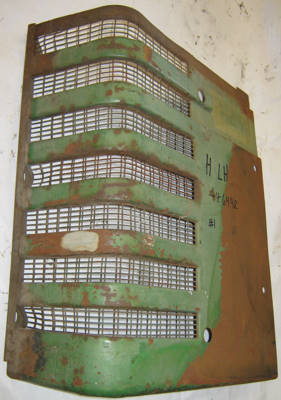

AH648R (Right hand) and AH649R (Left hand) grilles
#1, usable, but both need some work, $80 each or $135 for the
pair
-
-
AH648R (Right hand) and AH649R (Left hand) grilles
#2, usable, but both need some work, $40 each or $60 for the pair
Dent free gas cap, either plain or with "Buy clean
fuel, keep it clean" $9
-

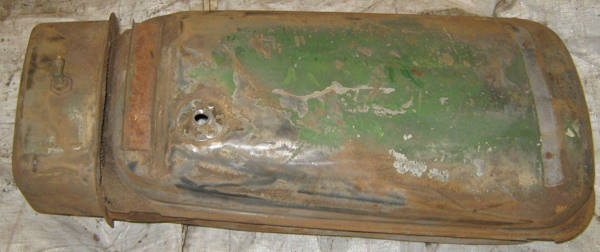

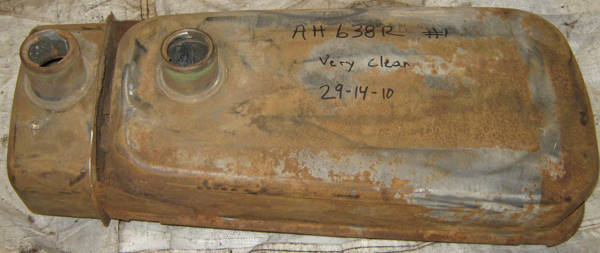

AH638R H fuel and gas tanks #2, good inside fuel tank
is fairly clean, there is a rust through hole in the small gasoline
tank, $125
B1441R tank clips, $3 each
Good three way fuel valve, nice original, may need
a new packing gasket, $35
Three way fuel valve with coupling for control rod,
nice original, may needcleaning and a new packing gasket, $30

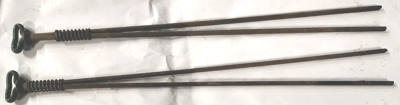

H796R control rod, $15, your choice
AH650R Hood Support, $10
AH642R Tank Strap, $15
\
Kant-Lose gas caps from an H, $15

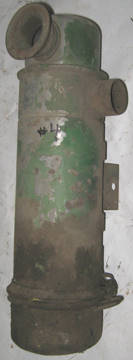

Very nice air cleaner body, $50
Very nice and complete AH1220R air cleaner, $60
Very nice and complete AH1220R air cleaner, $60
-
Oil cup for air cleaner, $25
Very nice air cleaner body, $40
Complete air cleaner, but will need some work, not
dented, but not tried to separate, as-is, $15
Drawbar front bracket, $25
-
Drawbar support, some added reinforcement, $20, your
choice

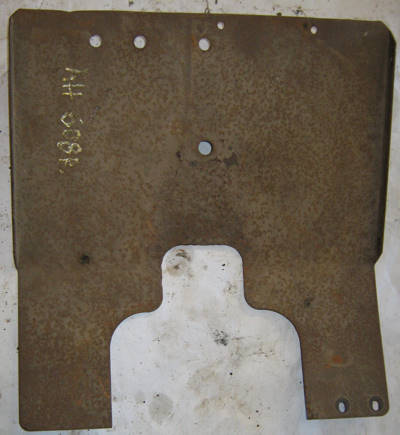

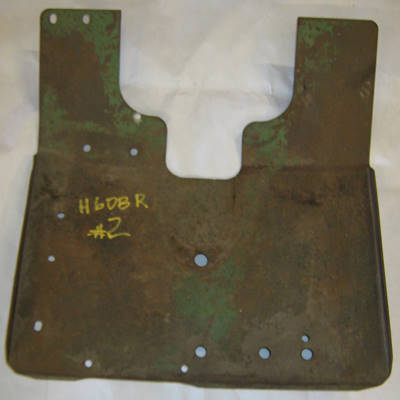

AH608R Platform, no cuts, no repairs, the best of the
bunch, $35
Platform #4, $20
Platform extension piece, $5
-
AD1606R, correct and original
nine hole seat, beadblasted, primed and painted with Deere brand
JD green, $50
H369R Seat Support, $20, your choice
Seat channel, $25
Bolt and nut, $5
Spring holders, $5 each
A618R Seat spring, $20
Fan support, $10

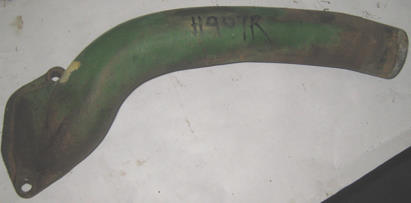

H909R Water pipe, no breaks or repairs, $40
H112R pipe, $14
H905R pipe, $10, may need a new steel pipe
H905R Upper water pipe, good casting, will need a new
steel pipe, $10
Radiator trash screen, H496R, original, $15
Good radiator core, $40, you r choice
H174R Inlet pipe, $25
H907R Inlet elbow, $15, your choice
Correct and original H radiator cap, $10
-

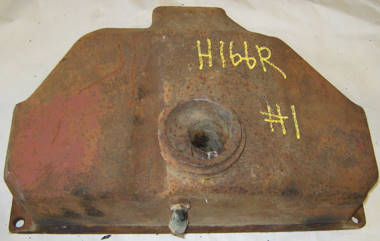

H166R #1 Radiator tank, no broken studs, no breaks
or repairs, the best of the bunch, $70
-

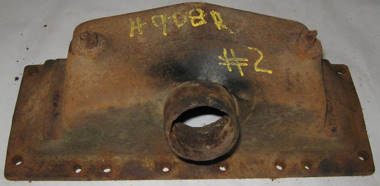

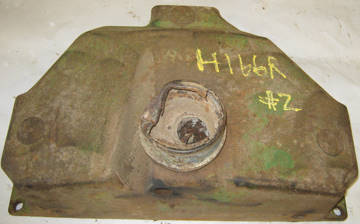

H166R #2 Radiator tank, 3 or 4 broken studs to remove
broken studs, no breaks or repairs, $50
-
H166R #4 top tank, good condition, but has some broken
studs to remove, $45
H166R, top tank, good condition, but will need a new
filler flange, $30
-

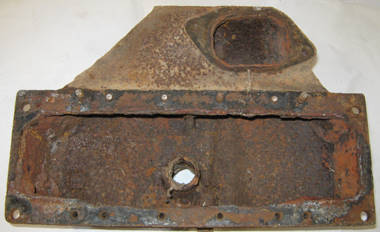

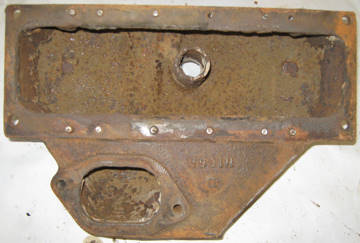

H167R bottom tank, Very nice condition, no breaks or
repairs, and no broken studs, $55

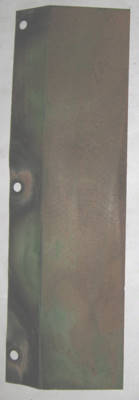

Radiator side, H168R, $12.50 each
H455R Shield, $10
H176R Drain tube with A172R Packing Nut, not rusted,
$25
H625R Shutter control link, $15
H623R Shutter control rod, $30

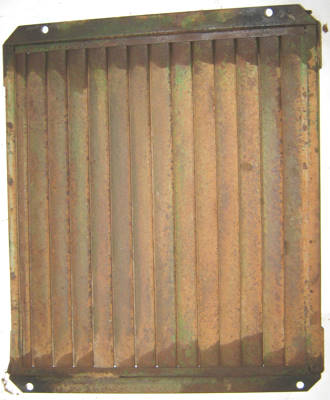

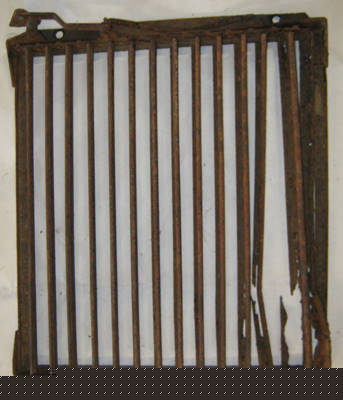

AH740R Shutter, very good condition, opens and shuts
as it should, no deep rust, $160
-
AH740R Shutter, fair condition, needs to be loosened
up, a few fins need to be straightened, no deep rust, $110
-

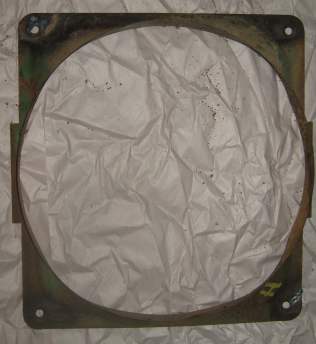

Shroud, H173R, very good condition, $30
Center plate, $15
Radiator tank strap, $4 each

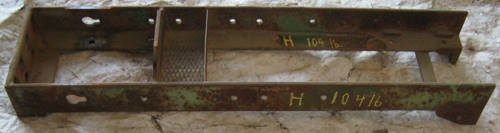

H front frame, very good condition, $50 (can ship UPS,
108 lb)
