VINTAGETRACTORS.COM
AND
RUSTY ACRES RANCH
Clutch, Transmission,
Rear Axle, Brake, PTO, and Hydraulic Parts for John Deere G tractors
Clutch Parts
-
AF820R (F798R) Clutch driving disk #2, matches to crankshaft
#1 on the engine page, Very good splines and faces, $120
C614R Clutch facing, $10 each
AD752R Clutch facing disk, with linings, $24
-
AD 752R Clutch facing disk with linings, $30

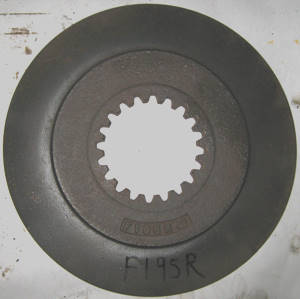

F195R Sliding drive disk, $19
-

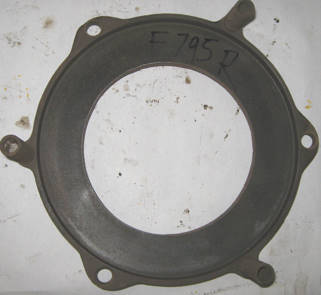

F795R Adjusting disk, $19, your choice
F795R Adjusting disk, $19
A352R spring, $4 each
F794R, Clutch operating bolt, three available, $20
each or three for $50
C74R clutch dog, $16
D2789R Nut, $3
C434R toggle, $4
D355R Dog pin, $3
F198R Fork shaft, $20 (JB)
-
AF817R Pulley dust shield, $25, your choice
AF745R Operating lever, $15
A183R Operating rod with yoke and nut, $15
D2031R Clutch pivot bolt with nut, $10

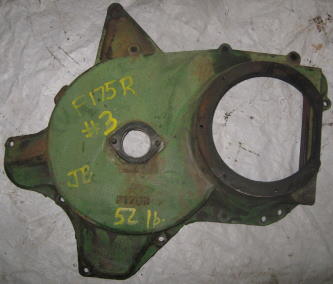

AF829R (F175R) First Reduction gear cover, no breaks
or repairs, $50 (57 lb.), your choice
A69R Bearing cover, $9
-
F521R First reduction gear, no breaks or repairs, $25,
your choice
Transmission
Parts
-
F217R Pinion, First and second speed sliding, 18T,
$30
F218R, Pinion Third and fourth speed sliding, 25T,
$35
F219R Pinion, Sliding gear shift drive, 25T, $35
AF1022R Sliding gear shaft, G over 13000, $50, your
choice
F567R Fifth and sixth drive gear, 14T. $35
--
F566R Pinion Fifth and sixth sliding, 32T, $40
F204R Cluster gear, 28T, 21T, 21T, $12 0
F203R Idler Gear, 25Tand 21T. $60
AF642R Countershaft, $80
Two JD7904R idler gear bearings, $40
F562R Nut on Countershaft, $8
-
-
AF1224R (F212R) Underdrive gear and shaft with AA6619R
bearing, $85, your choice
JD7487R Bearing, $40
F213R Snap ring, $6
JD7664R Bearing, $15
F623R (AF634R) Shifter First, second, and reverse,
$20
-
Complete G differential with F154R gear, $90, your
choice; individual parts are available.
F624R (AF635R) Shifter, third and fourth, $20
F274R (AF331R) Shifter underdrive, $20
Shifter shafts, $10 each
F568R (AF640R) Shifter Fifth and sixth, $20
F565R retainer, $10
F208R Bearing housing with cup, $15
F634R Bearing cover, $19
F168R, Bearing Quill, $12
F167R cover, $10
-
F222R Bearing retainer, $15
-

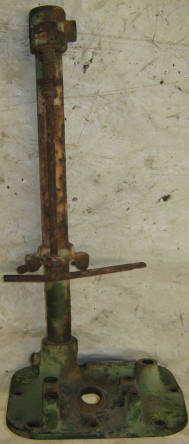

F628R Transmission cover with F147R support tube, $25,
your choice
-
F630R Quadrant, $15
F573R Gearshift lever with all associated parts (no
snap ring) for G 13000 and above, $45
-
F573R Gearshift lever for G 13000 and above, $20
F576R Underdrive shifter handle, $8
Rear Axle Parts
AF1258R (F231R) Final drive gear, $35 (76 lb)
AF420R Rear axle, $95, Can ship UPS (87 lb) (Adds up
to 84 inch width both axles)
F786R Outer felt retainer on rear axle, $25
F787R Inner felt retainer on rear axle, $30 (one only
available)
F785R Bearing Spacer, $25
F228R Oil seal washer, $9
JD8156R and JD7393R bearings on heavy duty rear axle,
used and in good condition, $10 each
JD 8112R (Timken 47685), inner and outer axle bearing
for regular axle
A76R Axle nut, $12
PTO Parts
F1248R PTO lever, $10
F253R Shifter shaft, $10
F254R Shifter, $10
F249R Powershaft gear, 22T, $25
F256R PTO gear, $25
F1516R Thrust Washer, $8
JD7502R and JD7951R berarings, Both $30
F248R PTO gear with F246R shaft, $25
Bearing marked ND1206 for F246R Shaft, $16
Bearing marked ND1209, $16
F250R bearing cover, $10
F259R Cover, $10
F708R for 1 3/4" pto, note one broken ear, $10
F708R oil seal for 1 3/4" pto, has flipper guard,
no breaks or repairs, $30
-
F713R G pto shaft, 1 3/4" (17 11/16 inch long,
used on G 26000-43351) , $45
F713R G pto shaft, 1 3/4" (17 11/16 inch long,
used on G 26000-43351) , $45
F304R Spring ,$5
F301R Cup with used F302R paccking, $5
-
Hydraulis pump with F306R cover, F299R pump body, F305R
drive gear, and idler gear, $90
Hydraulic pump cover, $10
AF371R, shaft with coupling, $10
F263R Coupling for above shaft, $6
F253R shifter shaft, $12
Brake Parts
A88R Right hand and A89R left hand brake pedals, $12.50
each
AF345R Brake shaft, $20, good gear, splines, and bearing
surface
AF291R Brake drum, good condition, good surface inside,
$20
AA314R brake with lining, most are worn almost to the
rivets and linings should be repaced, $12 each shoe
A348R spring, $2
A134R adjusting pin, $24 each
A152R Brake lever shaft , $8
A321R cam, $2
A151R adjusting screw, $5
24H77R Thrust washer, $4
14H655R Brake shaft nut, $4

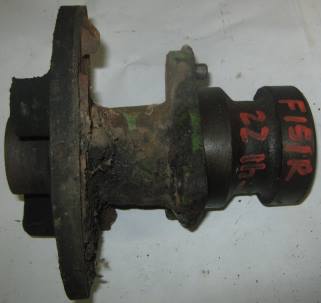

F151R LH brake housing, good condition, $30

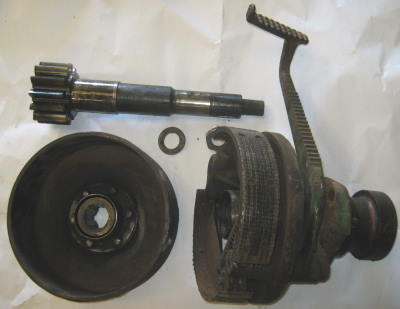

F150R brake housing with pedal, adjusters and pins
(need to be freed up), $30
Hydraulic Parts
AA4980R dummy plug, $12

A3140R Adaptor nut, $7
A3141R shear washer, $15 one available
AF361R, F296R Housing with bushing
and oil seal bearing, no breaks or repairs,$75
F316R Crank arm, $18
AF368R Rockshaft, one with pin
and one without, $20 each
A1444R Spring and A1453R Shield, $25
A1443R Rockshaft bearing, $12
-
F307R Cylinder, very smooth bores,
$40
AF370R connecting rod with F309R
piston and F311R retainer, may need a new seal, $35
-

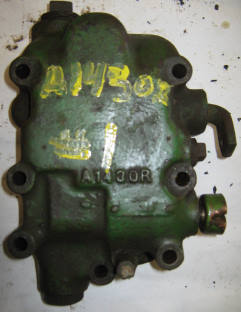

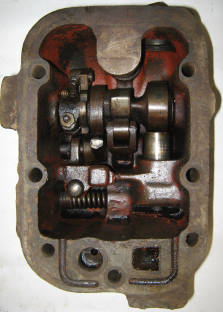

Two views of a very nice A1430R
valve control #1, $40
-
Two views of a very nice A1430R
valve control #2, $40
A1446R (AA4101R) Throttle valve, $10
B268R spring, $10
Right hand foot pedal and shaft, $20
Left hand foot pedal, $15
A1450R Pedal return spring for above pedal and shaft,
$20
Linkage from foot pedal to valve control, $10
A1892R Special Hex Nut for attaching
implements, $2 each
Cylinder bracket that mounts to rockshaft housing,
$30
Pair of lift arms, they clamp onto the rockshaft, $30
