Wheel, front end, steering
Parts for Dubuque Tractors: John Deere 420, 430, 440
-

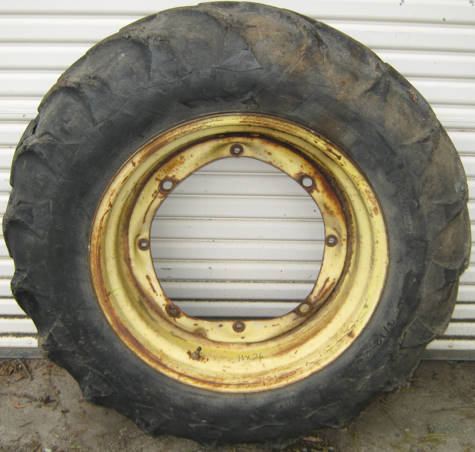

AM3513T 12 x 26 rim for U models, excellent condition,
rim has never had calcium chloride in it, $225
-

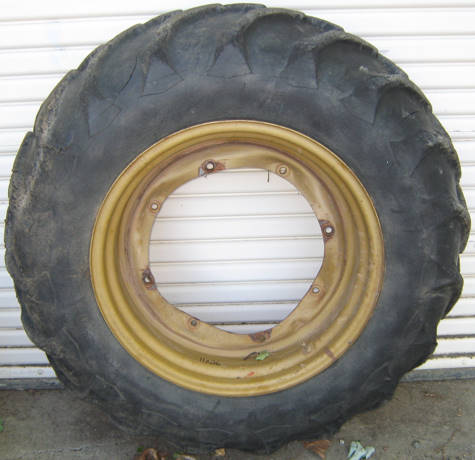

AM3513T 11 x 26 rim #3 for U models,good condition
with all eight mounting holes good, rim has never had calcium
chloride in it, ther best of the bunch, $250
-

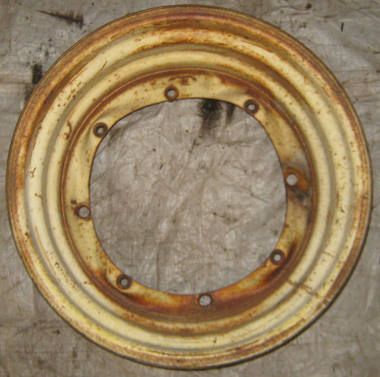

AM3513T 11 x 26 rim #1 for U models,good condition
with four enlarged mounting holes, rim has never had calcium chloride
in it, $175
-
AM3513T 11 x 26 rim #2 for U models,good condition
with all eight mounting holes good, rim has never had calcium
chloride in it, $225

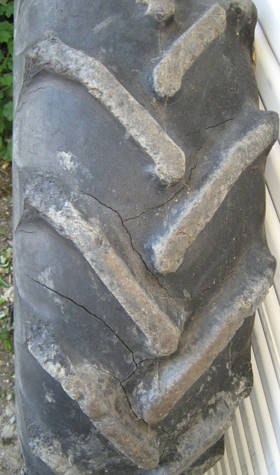

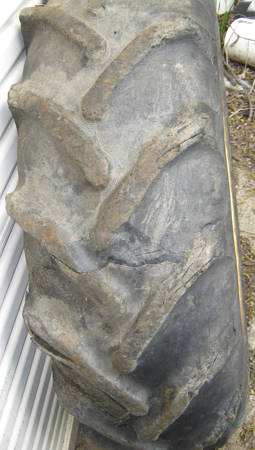

13.6-26 tires available (see bottom of this age)
Steering box
T11329T (Sub. M2742T) Center steering arm in H, S,
U, and V tractors, $25
Set of four bolts to attach front end support to block,
$12
Front axle pivot pin and setscrew,
22H713A and 14H826A, $15

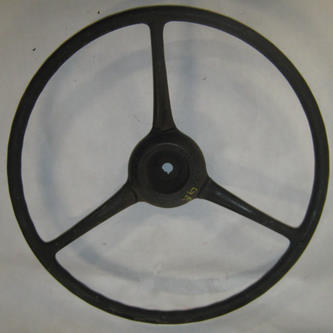

AM3914T Steering wheel, very good condition (GE), $60

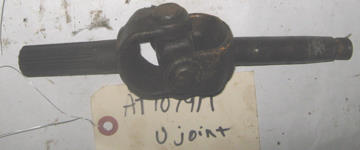

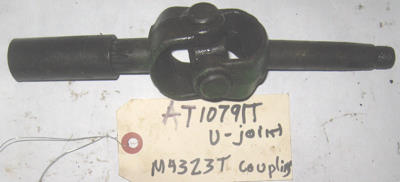

AT10791T steering universal joint with M4323T coupling,
some but not a lot of free play in the joint (GE), $120
AT10791T steering universal joint, some but not a lot
of free play in the joint (GE), $100
Power steering parts
for 420U and I 80000-131817 and
420 H, S, T, V, and W 125000-131817
M4011T Front axle pivot pin used
with power steering, good condition, $20
Front axle pivot pin shims, one
M4144T and 3M4143T, $15 for al four

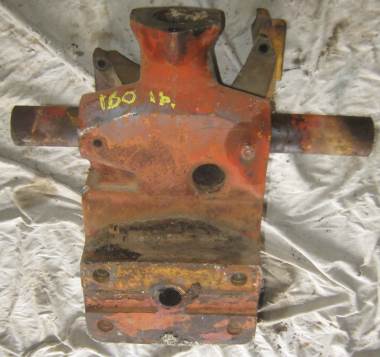

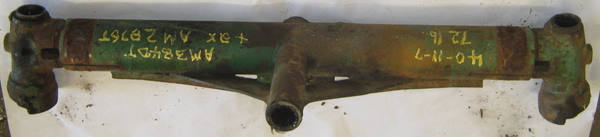

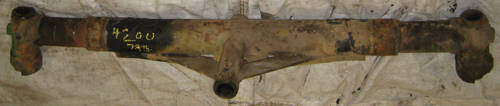

AM3840T Front axle center section
from a 420U with well done added bracing and two AM2876"T
(M2829T) Adjustable ends (knees). All four JD8820T Needle bearings
are present and in good condition, $160, can ship UPS

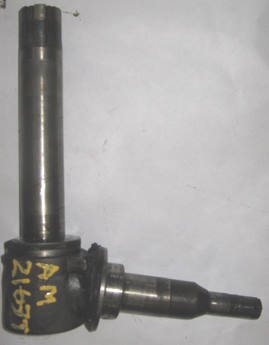

AM2163T spindle to fit the axlw
knees,
JD8407H Thrust washer on spindle,
$10

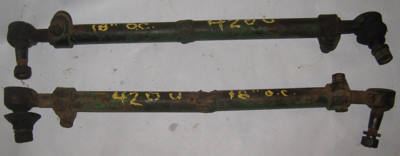

Tie rods, fixed, and used with
power steering, with M3979T center section, 18 inch on center,
both $100

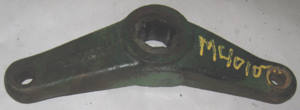

M4010T Right side steering arm,
used with power steering, $120
M4052T Left side steering arm
used with power steering, $75
AM3755T Steering shaft, $35
AM3754T Front steering shaft, $25

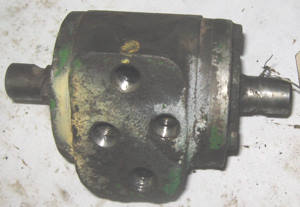

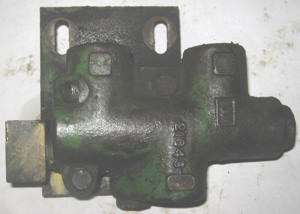

AM3758T Steering control valve with M4126T body, $100
Power steering flow divider valve, AM3761T, $80
M4028T Connector tee, $25
M4029T Bracket, $15
M4060T Adaptors used to properly space the coil away
from the divider valve, $20 for both
AM3769T Pump inlet line, includes special tee for divider
valve, includes M3190T Nut at hydraulic pump , sleeve, and connector,
$60

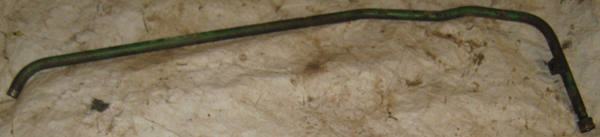

AM3768T Pump outlet upper line, $25

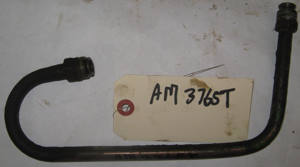

AM3765T Steering valve inlet line, $25

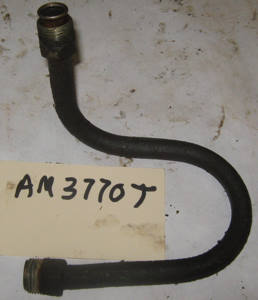

AM3770T Flow divider return line, $25
AM3839T steering valve outlet line, use as a pattern
to make a new line, $10
M1556T Connector, $15
L1670C Connector, $115
M1370T connector, $8

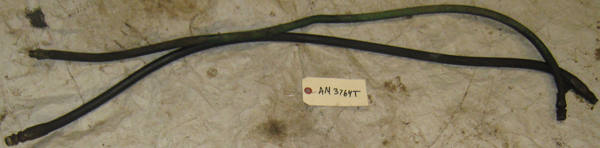

AM3764T Flexible oil lines to hydraulic steering cylinder,
$20 for both

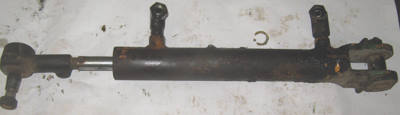

Hydraulic steering cyliner and mounting bracket, works
but not factory original eqipment (right side of cylinder attaches
to bracket, left sid attaches to M4010T steering arm), $35
-

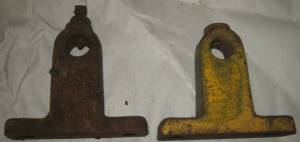

M849T, steering gear support
(sub. AM946T), $25, your choice
Poert Steering parts
SN 125000 and up
-

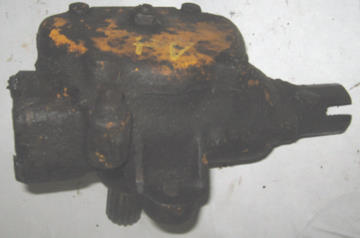

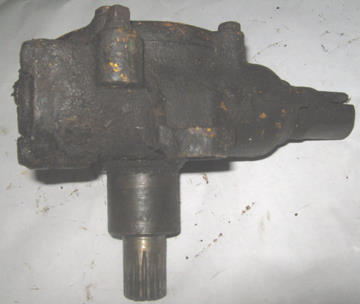

Power Steering gear assembly, covered with grease,
but in good condition, includes T10566T coupling (GE), $125
M4244T Steering gear support (GE), $25

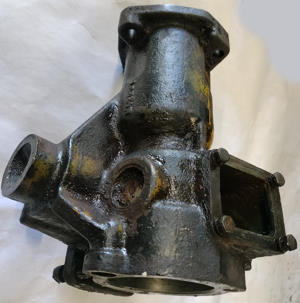

M4223T Rack and Pinion housing, no breaks or repairs,$50
M4242T Cover, $5
-

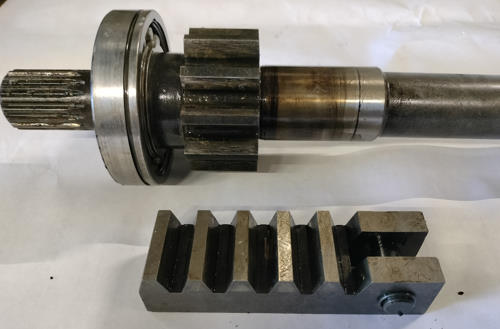

M4232T Rack with pin and snap ring and M4226T Pinion
with shaft and JD7191T bearing, excellent condition, $250

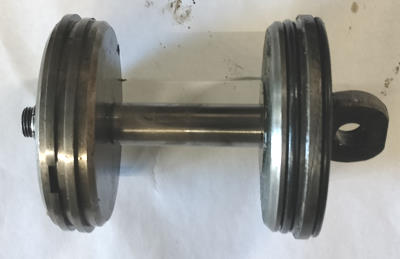

M4239T piston and M4233T piston rod, excellent dondition,
no pitting, includes piston rings and o-rings, $145
-
M4239T piston and M4233T piston rod, rod has some scoring
on one side, as-is , $40
M4235T Cylinder head, $20
M43239T Piston $20
M4237T O-ring, $5
M4240T Piston rings, $35
M4236T O-ring, $4
M4245T Gasket, $5
-

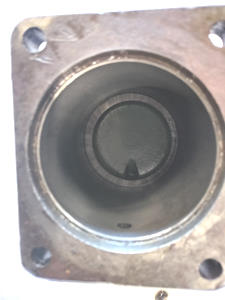

M4241T Cylinder Housing, nice smooth bore, no breaks
or repairs, $45
M4225T Cupped plug, $15
M4231T Thrust washer, $10
M4246T Cooupling
Power Steering Parts
SN158075 and up

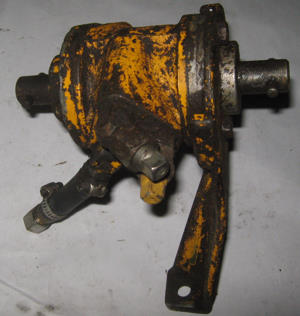

AT10537T Control Valve assebly with T12265T Valve support
bracket (bracket has been repaired), valve is in good condition,
all ports have plugs to keep them clean (GE), $135
-
-

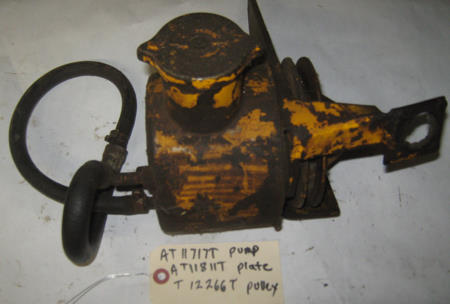

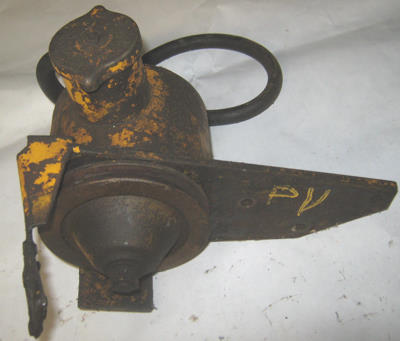

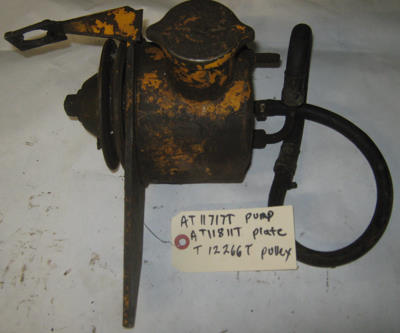

AT11717T Power steering pump with AT11811T Mounting
plate and T12266T pulley, pump is in good condition (GE), $180
Other Power steering
parts
T10542T bracket, $15, note break at the yellow arrow
-
Various 420/430/440I brackets, $10 each, your choice
Shaft, $10 (G)
T10675T Steering shaft, $30 (G)
Steering shaft, $10 (G)
Steering shaft, $10
Steering shaft, welded $10 (G)
Brackets , $10 (G)
Manual steering
parts
M4377T (Sub. M842T) ,and JD8404T
Thrust bearing washer and Thrust bearing, $15
-
M849T, steering gear support
(sub. AM946T), $25, your choice

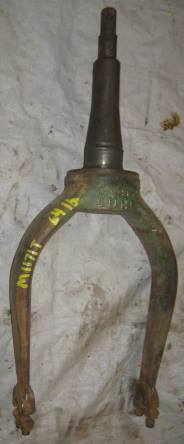

#1 M843T Spindle with M1171T Fork and two M1180T clamps,
$110
-
#2 M843T Spindle with M1171T Fork and two M1180T clamps,
$80
The following are parts from
a 420W front end:
M4377T thrust washer between front end support and
steering gear support, $9
M3365R Special cap screw used with M3241T Spacer, $10 two available
AM2981T (M3141T), Adjustable knee with good needle
bearings for 48" to 80" adjustment, very good condition,
no breaks or repairs, two available, $45 each
M2696T Special cap screw, 3/4 x 6, $5, two available
T11330T (M3315T) Center steering arm, $30
M825T Hub cap, $12.50
The following are parts from
a 440I front end:
-
T10367R (AT10274T) Front end support with T10417T Grille
mounting bar, $75
Tie rods with AM3982T center tube, good ends and clamps,
very good condition, $75 each, two available
T11330T (M3315T) Center steering arm, $30
T10416T, Front axle pivot shaft, $30
AT10272T front axle, $100
AT10348T hub (T10511T) with races, $32 each
-

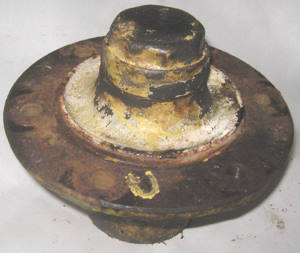

M979T Front wheel hub, no breaks or repairs, includes
both good bearings and retainer seals, $32 each similar to above,
several available
M825T Hub cap, $12.50
Front wheel hub for above axle from 1010 Utility, May
be the same as 40U, 420U, and 430U, Two available, $32 each
9/16-18 lug nut for rear wheels, $1.50 each or set
of six for $7.50
1/2-20 lug nuts for front wheels, $1.50 each or set
of six for $7.50
-

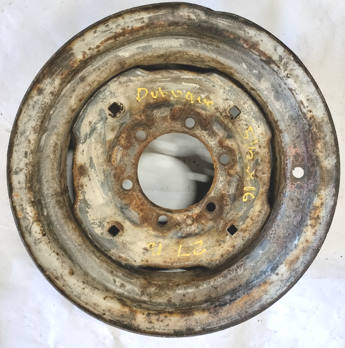

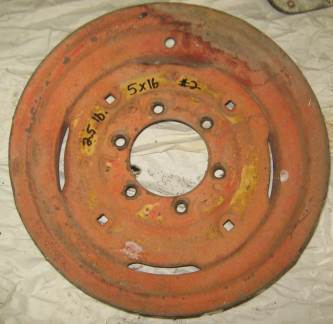

JD3003T 5 x16 front wheel #2 that came from a 440,
$50
-
(T10171T) M2648T (Sub for M1793T) Rear hub for MT,
40T, 420T,W, 430T,W, some 1010 rear axles, $50 each, two available
Pair of Wilson Nutwell Fesno CA JD30 Rear weights to
fit all M, 40, 420, and 430 tractors that usde the wavy rims.The
are curved on the back side to perfectly fit the curve on the
M62T and M 1549T rear wheel hubs.The weights weigh around 260
pounds each and would make an interesting California addition
to your tractor. $200 for the pair and can ship truck freight
or you can pick up here.
-
Pair of M2729T rear weights, 145 lbs. each, to fit
S and U models, $90 each or $150/pair
Pair of M2292T rear weights, 145 lbs. each, to fit
S and U models, $90 each or $150/pair
-
10 x 24 rear wheel #1, fits 8 hole hub, very clean
inside rim, $75
-
10 x 24 rear wheel #2, fits 8 hole hub, very clean
inside rim, $75
-

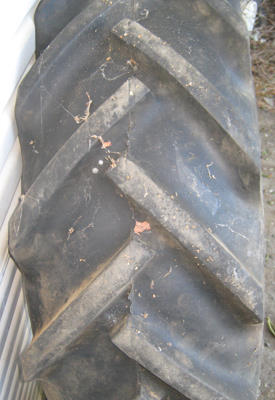

Like almost new Goodyear 13.6-26 tire with tube, $325
-

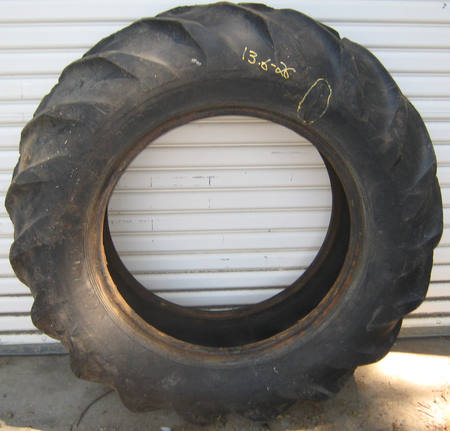

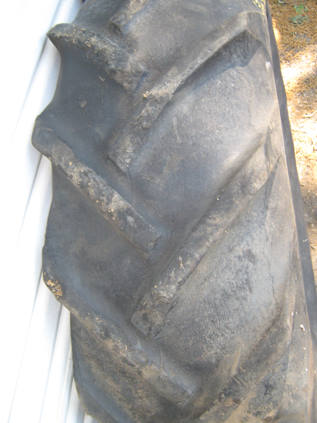

13.6-26 tire, sound condition, 25% bars, needs a patch
behind a hole at yellow circle, held air when removed from rim,
$40
