Hydrraulic, Three point, Implement Parts for Dubuque Tractors: John Deere 420, 430, 440

Controls and Linkage with hydraulic lines for Remote Control Valve Assembly

Above photo is complete unit with all parts. Photos below are closeups of these parts.

-

-

Complete remote hydraulic control, includes M3352T, AM3514T, and AM3515T hydraulic lines. The M2615T draft control rod bracket and the M2616T crank both have welded repairs and are fully funcitonal; otherwise, no breaks or repairs. This unit came from a 1010 wheel tractor. $275
(45/26-12-12)



AM2945T connector, $10

M1370T connector, $8

M3250T flange, $7

M3253T, Line, pump inlet rear, $25

AM2998T line in dash, $30

Various hydraulic lines with fitting, $10 each

AT10379T hydraulic line, $25

AT10382T hydraulic line, $30

M3169T Rockshaft housing with rockshafts and all internal operating parts in good condition, $120 (78 lb)

-

M3378T Touchomatic cylinder and valve housing with M3245T front cover in very good condition, $135 (82 lb)

T10558T quadrant, $40

Valve control linkage parts, $30

Valve control linkage parts, $50

AT10482T control lever with knob, $20

Hydraulic pump driven from crankshaft pulley, good condition, $120

\

M3112T crankshaft pulley, no breaks or repairs, $60

Plate for mounting crankshaft driven hydraulic pump

T10532T clamp, $5

T10539T, Lift arm right side, $35

M2851T. Lift arm left side, $35

M3144T anchor yoke, $35

M2212T Yoke spring, $30

M3171T Contol arm for anchor yoke assembly, $20

M3143T rear cover

M3140T Trunnion bolts, with nuts, $40 each, two available

M1798T Rockshaft housing with internal parts, $75

AM1922T Hollow rockshaft, $25

-

-

AM2227T Housing (M2296T casting), cylinder and valve with cupped plugs and linkages, pistons and cylinders in good condition, $60

M1813T lever with bracket, $15

M1820T Quadrant with guides, no breaks or repairs, $35

AM1916T and AM1917T levers, $10 each

=

M1801T Front cover with M1820T Quadrant with all levers and linkages, $75 (M1820T is usable but the casting is cracked)

Control rod, $10

M1740T, M1741T, and M1742T Rockshaft arm, $25 each

M2118'T spring, $25

Spring anchor, $5

Adjustable lift link from a 40U, will fit 40S,T,U, and W, all original, no breaks or repairs, $125

Adjustable lift link from a 40U, will fit 40S,T,U, and W, all original, no breaks or repairs,note that the pin needs to be removed on the top piece, $110

Adjustable lift link from a 40U, will fit 40S,T,U, and W, note that the crank handle is not original, $100

- -

Fixed lift link from a 40U, will also fit 40S,T,U, and W, $65, your choice

AM2177T , Right draft link, $40

AM2176T Left draft link, $40

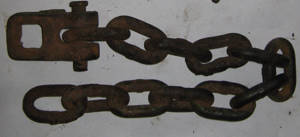

Sway chain with M1702T anchor and M2876T front anchor, $25

Sway chain with M1702T anchor and home made front anchor, $15

M2084T bolt and nut used on sway chain, $15 each

-

Lift links and draft links from a 440I- these are not original John Deere parts, $40 for the set

Drawbar for the three point arms, $20

New, never used generic top link, $25
