Transmission
and Drive Train Parts for John Deere Model B
Parts for both early styled
(s.n. 60,000-201,000) and late styled B (s.n.>201,000)
-
B2463R, Clutch driving disk #1, excellent condition,
great splines and surfaces, no cracks, $145
B1849R clutch driving disk, worn splines, free with
any order
B1849R driving disk #2, splines show some wear, $20
B145R clutch dog, $20 each
B2351R clutch dog, $16 each
B144R toggle, $4 each
B2352R pin, $4 each
B1856R clutch operating bolt for B 96000-201000, $9
each
B2353R clutch operating bolt for B over 201000,
$12 each used
$15 new . one available
-

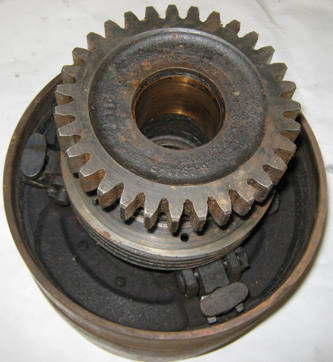

B2340R Belt pulley #1 with B23441R gear, complete with
all operataing parts (operating sleeve, pins, dogs, toggles, and
operating bolts. It shows some wear at the pulley brake surface,
but all operating parts move freely and it should be ready to
install and go to work, $160 and can ship UPS.
-

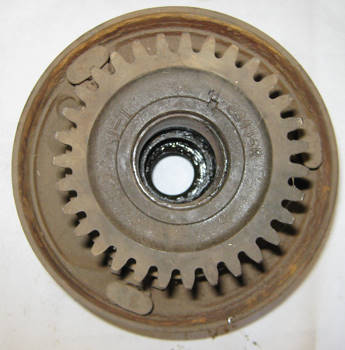

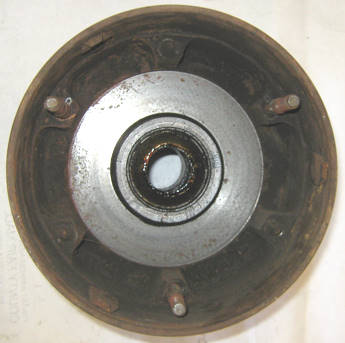

B2340R Belt pulley #1 with B23441R gear, complete with
all operataing parts (operating sleeve, pins, dogs, toggles, and
operating bolts. All operating parts move freely and it should
be ready to clean up, install, and go to work, $160 and can ship
UPS.
- -

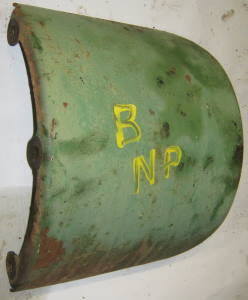

Pulley shield for B over 201000, $15,similar to above,
not cut or bent

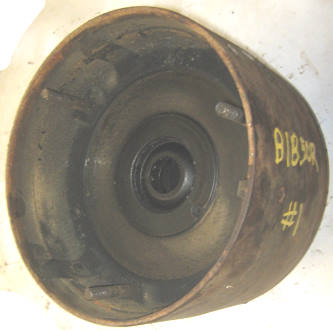

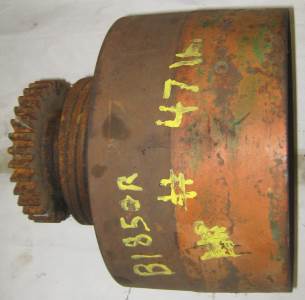

B1850R clutch pulley with good bearing, bushing and
operating sleeve, $45
Clutch pulley with operating parts, B1850R casting
#, $80
-
More Clutch pulley with operating parts, B1850R casting
#, $80, very good condition
-
B2341R Pulley gear, $25
Dust guard, B under 201000, $25
-
Dust guard, B under 201000, $25
Dust Guard, B over 201000, your choice $25
B over 201000, B2354R,clutch
facing, $5
B over 201000, AB3471R, Clutch
disk with very good facing, $20
B over 201000, B2358R Sliding
drive disk, $15
B over 201000,B2359R Clutch adjusting
disk, $10
B2368R Pulley brake, for B over
201000, $35
B1857R Pulley brake, not currently available

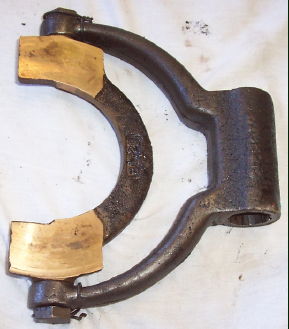

B172R bronze collar with B1852R
clutch fork, $50 (B172R is currently $310.50 from Deere dealers)
B172R bronze collar $30, excellent
condition (B172R is currently $310.50 from Deere dealers)
D178R Fork pivot, $7 each
Clutch fork bearing, B1854R $30. B2780R not currently available,
but parts catalog shows that B1854R is interchangeable.
B1853R Clutch fork shaft,shows
some wear at pulley brake surface, $25
-

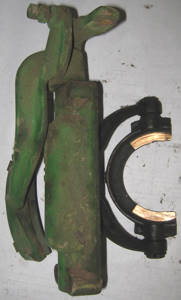

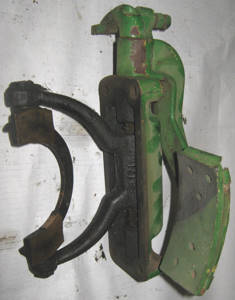

Complete clutch fork assembly
#2, includes B2750R bearing, B2368R pulley brake arm, and B172R
bronze collar in very good condition, The ppulley brake arm is
nice and snug on the fork shaft, $120
-
Complete clutch fork assembly
#3, includes B2750R bearing, B2368R pulley brake arm, and B172R
bronze collar in very good condition, $100
Complete clutch fork assembly
#1, includes B2750R bearing, B2368R pulley brake arm (nice and
tight), and B172R bronze collar (collar shows light wear) in very
good condition, $80
B180R pivot bolt with nut, $8
Clutch lever, $15
Clutch rod and yoke, $12
-
B164R Clutch cover, nice, $25,
your choice
-
-

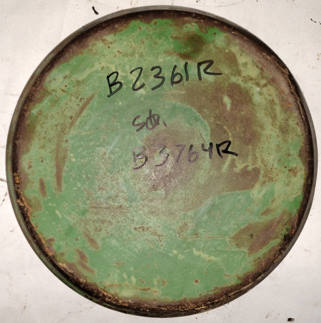

B2361R Clutch cover for B over
201000, fair condition, similar to above, $20 each
-
D426R Oil filler cap, $8
B152R snap ring, used, $5
JD7677R, Bearing for overdrive
shaft and gear, $12.50
Below 201000, B884R First reduction
gear, $25
Below 201000, first reduction
gear with casting # B2105R, $20
Above 201000, B2442R First reduction gear, $20
B148R First reduction gear cover for B 60000-59999,
good condition with no breaks or repairs. Dust guard included,
has one are with some rust through, $40, your choice

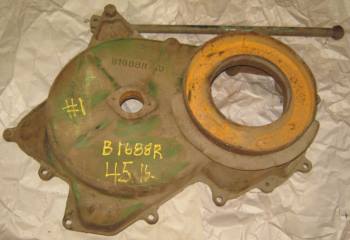

B1688R First reduction gear cover
with dust shield and clutch lever #1, $45
B1688R First reduction gear cover
with dust shield #2, $35

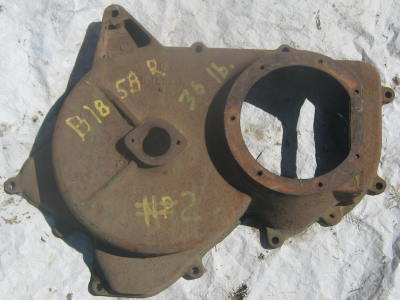

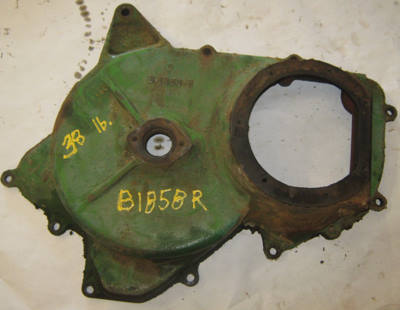

B1858R First reduction gear cover,
no breaks or repairs, $35

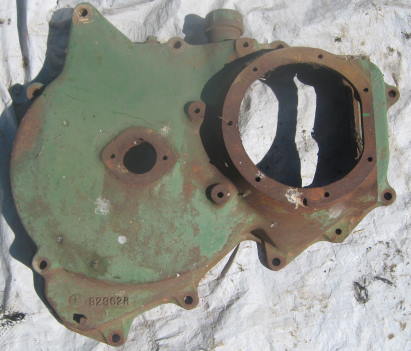

B2362R First reduction gear cover
for B over 201000, no breaks or repairs, 46 lb., $35,similar to
above
D426R cap, $7
A4233R oil cap for first reduction gear cover, $10
Transmission parts
for B SN 60000-96000 :
-
B1372R (AB4159R) Overdrive gear and shaft (26 teeth/20
teeth), $100
JD7678R bearing on RH end of sliding shaft, $20
JD7538R (AA6619R) bearing Overdriver gear and shaft LH, $25
AB1175R, Sliding gear shaft, $25
B341R, 17T First, third, reverse sliding pinion, $25
B343R, 20T Sliding gear shaft drive pinion, $25
B1370R Second fourth sliding pinion, 20T, $25
B376R overdrive shifter with pin and yoke, $25
B378R Shaft for shifter forks, $10
Other two shifter forks, $15 each
B331R cover, $9
B619R cover, $12
B333R cover, $10
Transmission parts
for B SN 96000-200999 :
-
-
-
-

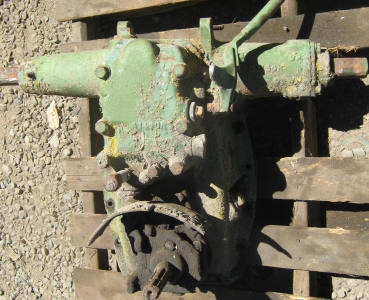

This is the matching powerlift for the slow speed transmision
and its case whivh is missing the tag. From the powerlift number,
the tractors serial number (it was a BNH) can be determined. Included
with the transmission assembly.

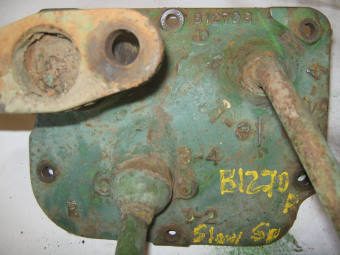

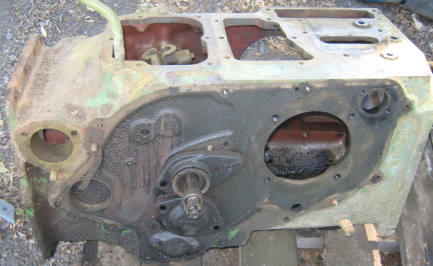

AB2946R Slow speed Underdrive transmission assembly,
complete in case, includes the special transmission cover with
1-3, 2-4 markings instead of the H-L marking. good condition,
$700. I san ship the complete assembly truck freight or can disassemble
and send just the internal parts UPS.
B306R transmission cover if you want to eliminate the
powerlift. (also available is the correct power shaft for this
cover), $80
AB2843R sliding shaft with bearing, $25
B343R, 20T Sliding gear shaft drive pinion, $40
B341R, 17T First speed sliding pinion, $25
B1873R, 20T sliding pinion, $25
B1874R Overdrive gear and shaft, 26T and 20T, $45
JD7678 bearing for B1874R Overdrive gear and shaft/right
hand end of sliding gear shaft, $15
JD7928 bearing for B1874R Overdrive gear and shaft,
$12
B329R, First speed countershaft gear, 28T, $30
AB2954R Countershaft, $25
B1862R Countershaft idler gear, 19 and 25 teeth, $60
B1868R Second speed countershaft gear, 25T, $25
B1869R Differential drive pinion, 17T, $25
B1899R First speed countershaft gear, 28T, $35
B1866R Lock nut, $20
Shift fork for 5th and 6th gears, $12
Transmission parts
for B over 201000:
JD7973R Transmission drive shaft
LH bearing, $25
JD7159C Sliding gear shaft LH
bearing, None available
JD7660R Sliding gear shaft RH
bearing, None available
B3613R, 30T Sliding gear shaft
drive gear, $30
B2431R, 19T Pinion, First and
Third sliding, $20
B3604R, 25T Pinion, 2nd and 5th
speed sliding, $25

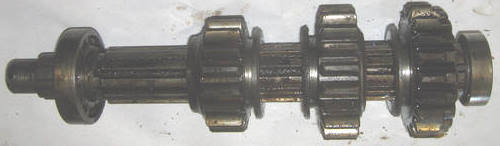

AB3502R Sliding gear shaft, $50,
very good condition
B1916R Sliding gear shaft nut,
$7
AB3499R Countershaft, $35
JD7937R Roller assembly for B2417R gear, $20 each
B2424R Thrust washer, $19
JD7937R roller bearing for B2417R
gear, includes spacer and two bearings, $40
B2415R Countershaft 1st and 3rd speed gear, 31T, $35
B2418R, Differentail drive pinion
gear, 20T, $20
B2416R, Countershaft 2nd and
5th speed gear, 25T, $20
B2420R Spacer, $5
B2414R, Lock Nut, $45
F216R Snap ring, $15
B2434R Oil retainer, $20
B2425R Countershaft rh bearing
housing, $8
B2438R (AB3505R) Cover and retainer, $8
-
B2588R shift fork, $40
All other Shifter forks (B2585R,
B2587R, and B2598R) are $15 each
B2593R Shifter pawl, $12
B2597R Pawl spring, $10
B2707R Pawl with D993R spring,
and 405R ball, $12/ set
Fork shafts for all styled B,
$9 each
Shifter forks for six speed transmission,
B 96000-201000, near new, $15 each
For B under serial 201000, including
unstyled:
B374R spring for shifter pawl, $5 each
B375R / F3362R Shifter pawl, $8 each
B2600R 4th and 6th speed fork, $10
B2446R 4th and 6th speed gear
cover, $10, your choice
The following are differential parts for B over 201000

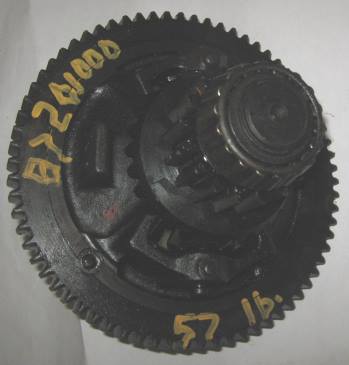

Complete differential for B over serial 201000, complete,
and in good condition, $75
B2325R gear, with shaft, $40
B2328R gear, $5 each
B2329R shaft with pin, $3
B2331R Thrust Washer, $5
Snap ring, $4
B2327R gear, $35
For B under 201000:

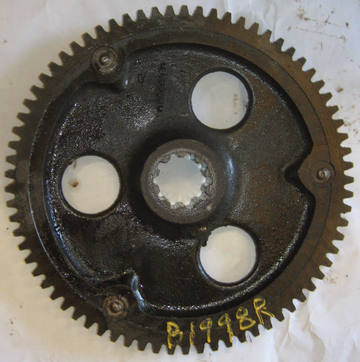

B1398R ring gear, carrier, and spur gears, $40
B1423R Bevel gear and spur pinion, $60
B185R Bevel pinion shaft, $4
16H790A River, $2
B188R Thrust Washer, $4
B2332R Differential bearing quill, $10; two for $16
B1753R bearing cap for pto, $20
PTO and pump parts
for B under 201000
-
AA2297R pto shield, $10, as-is
A817R pump cover, $15
B1758R or B1975R Bevel gear, $20
B1759R thrust washer, $20
B1757R 22T Sliding gear, $15
B1752R or B1974R Shaft with gear, $20
PTO and pump parts
for B over 201000
-
AA2297R pto shield, $10, as-is
---
-
A2431R cover with A2430R pump body, AA5482R idler gear,
and A2433R drive gear, no scoring on the cover, gearsare nice
and tight, your choice, $80 each
B2319R bevel gear, $12
B2320R thrust washer, $20
Fiber thrust washer, $4
B3143R 21T sliding gear, $45
B2318R Drive shaft and bevel pinion, $16
JD7673R bearing on B2318R shaft,
$10
B2322R Shifter fork, $10
B2323R Shifter shaft, $10
Both parts $16
Pto lever,shifter arm, and spring, $15
Drive gear, 15 , driven gear, $15
B2625R Driveshaft, $10
A2428R pto shaft coupler, $5
B2618R PTO Shaft #2, good condition, $40
B2618R PTO Shaft #1, slight scoring, $20
A2432R Cup oil seal, $5
A2436R Packing Oil seal, $2
24H316R Oil seal washer, $2
F215R Snap ring, $3
A2435R Spring, $6
All part shown above, $14
-
PTO pump with A2431R cover, B2617R pump body and both
gears, no scoring on A2431R, in excellent condition, $75
A2930R, Powershaft Oil Seal Housing, no flipper guard, $20
-
-
-
-
A2930R, Powershaft Oil Seal Housing with flipper guard,
$25, your shoice
Shifter Parts
C1438R spring on throttle lever shaft, new, $7
Six speed, hand start pedestal
and transmission cover, $15
-
B1695R Slant dash with B2092R
transmission cover, no breaks or repairs.$120
Shift lever, B under 201000, $10
Shift lever with ball and spring, B under 201000, $15,
your choice
Six speed shift cage, $13
B2582R Gearshift lever and all associated parts, very
good condition, for B over 201000, $50

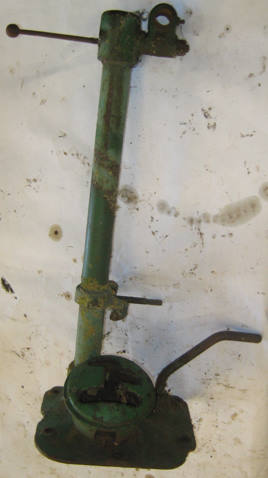

B2533R Steering support with B2536R Speed control lever
and all associated parts, no breaks or repairs and both the speed
control and shutter control levers move freely, $60
-
B2580R shift cage, no breaks or repars. $20- your choice
(27 lb)
B2824R transmission cover, $15
B2825R shift quadrant, no breaks or repars. $20
Brake Parts
B234R or B2339R brake pinion, $7
B235R nut, $4
B233R pinion washer, $1
14H781R Nut for later style brakes, $3
B226R brake pedal shaft, threads need to be cleaned
up, as-is, $8, your choice
B227R, Brake adjusting pin, $12 each
A151R, Adjusting screw, $5
B228R spring, $2
AB279R Brake shoes that need new lining, $4 each
AB279R Brake shoes with good usable lining,
=

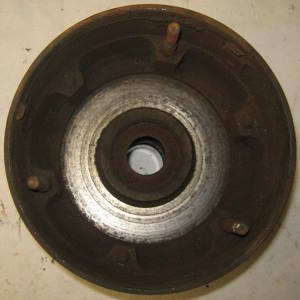

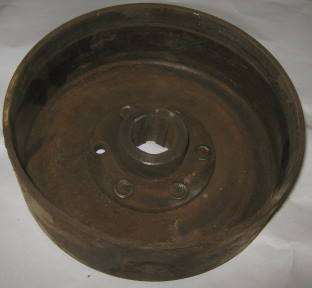

Late B brake drum, $15
Late B brake shaft, $15

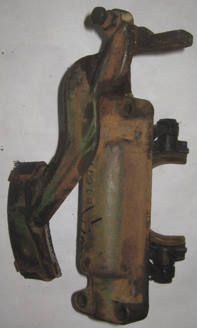

B218R brake housing for B 60000-95999, Pedal shaft
lever and brake pedal move freely, adjusting screw need to be
loosened, no breaks or repairs, $25
-
-

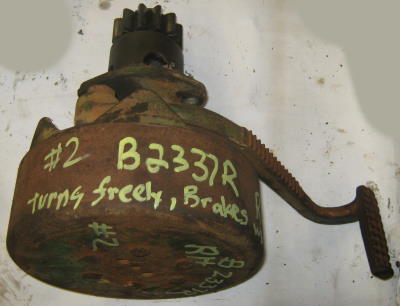

B218R, B1897R, B2337R, or B2740R Brake housing, $25
each
Brake pedals for all B's, specify left or right, casting
# B236R and B237R, $15
Short brake latch with bracket, $10
B2179R Brake latch (short), $5 each
-

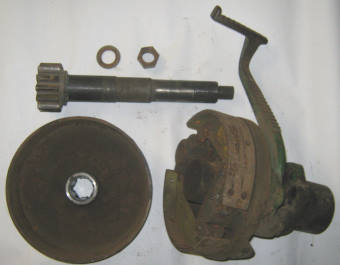

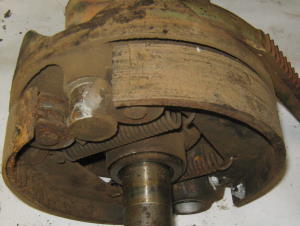

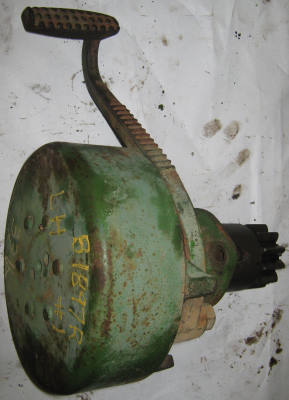

Complete brake assembly with B1897R housing #1 for
LH side. All levers cams, and adjusters move as they should and
the lining is usable after cleaning, $100
-

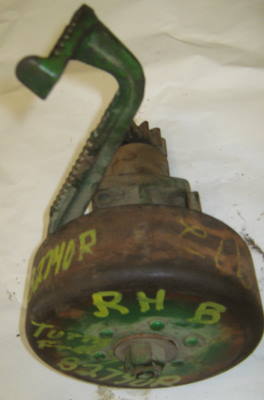

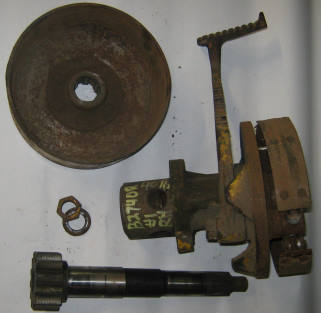

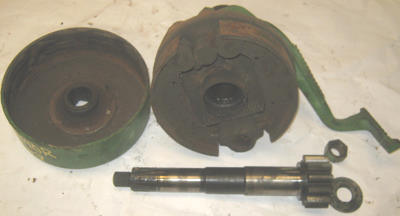

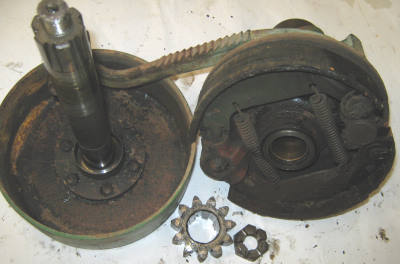

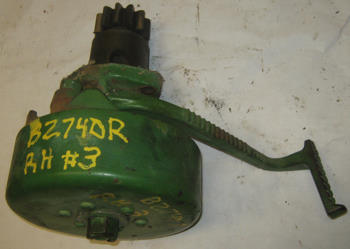

Complete late B brake assembly #2 with B2740R housing,
all parts move freely, right side, $85 (40 lb)
-
Complete late B brake assembly #1 with B2740R housing,
drums spins and brake lever works, right side, $80 (40 lb)
-
Complete late B brake assembly #1 with B2740R housing,
all parts move freely, good used lining, left side, $85 (40 lb)
-
Complete late B brake assembly #3 with B2740R housing,
all parts move freely, good used lining, right side, $85 (40 lb)
-
Complete late B brake assembly #3 with B2740R housing,
all parts move freely, good used lining, left side, $85 (40 lb)
-
Late B brake assembly with B2740R housing, all parts
move freely, good used lining, left side, No gear, shaft or drum,
$60
-
-
Complete late B brake assembly #1 with B2337R housing,
all parts move freely, good used lining, left side, $95 (40 lb)
Complete late B brake assembly #2 with B2337R housing,
all parts move freely, good used lining, left side, $95 (40 lb)
-
-
Complete late B brake assembly #1 with B2337R housing,
all parts move freely, good used lining, right side, $95 (40 lb)
-
Complete late B brake assembly #2 with B2337R housing,
all parts move freely, fair used lining, right side, $80 (40 lb)
Rear Axle parts
AB4266R Heavy duty 15 spline
AB4266R axle for BN or BW high clearance (sn over 201000), 75
lb each. $80 each
B2860R retainer for the heavy duty axle, $25, one only
B2859R retainer for the heavy duty axle, $25, one only
JD7394R Outer axle bearing or
JD 7393R inner axle bearing-great usded condition at $10 each
(Compare to Deere dealer price of 71.00 and 59.00)
NOS B2412R Outer felt retainer, $25
B2412R, Outer felt retainer, beadblasted and primed,
$17 each
B2412R Outer felt retainer, $15 each
B2409, Inner felt retainer, $15 each
-
B2407R Bearing spacer, $15 each
AB4142R Final drive gear (For
B over 201000, casting # B2411R), $35 each
B1181R Felt retainer, $20 (Compare
to Deere dealer price of 62.10)
B1182R retainer, $26
B1180R spacer, $20
Note The parts catalog
can be confusing as Deere gave the AB1331R part number to at least
three different axles that covered the regular B, BW, or BN and
the BWH or BNH
AB1331R 48 3/8" axle for BNH or BWH to serial
201000 or high clearance BN or BW above serial 201000, $90 each,
three available (62 lb.)
AB1331R 41 1/2" 12 spline
row crop axle for B 60000-201000 , $50 each, similar to above
(54 lb)
AB1331R 43 1/2" 12 spline
row crop axle for B over 201000 , $60 each (55 lb)
B350R axle nut, $15
-
B1178R rear axle housing for
BWH/BNH under 201000, #1, no breaks or repairs, 250 lb., $150
-
B1178R rear axle housing for
BWH/BNH under 201000, #2, no breaks or repairs, 250 lb., $150
B2405R Rear axle housing for
B over 201000, $50
B2406R rear axle housing for
BN or BW high clearance (sn over 201000), $50
COMPLETE REAR AXLE ASSEMBLIES
B1178R rear axle housing complete
with uncut long axles, will fit all unstyled and styled BWH and
BNH tractors, $400 (500 lb, can ship truck freight)
