Sheet Metal Parts
and other external parts for John Deere Model B
Parts for both early styled
(s.n. 60,000-201,000) and late styled B (s.n.>201,000).

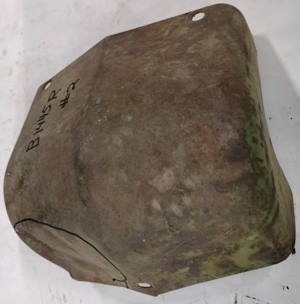

B1445R medallion #1, no cuts, no dents, good bolt holes,
$60

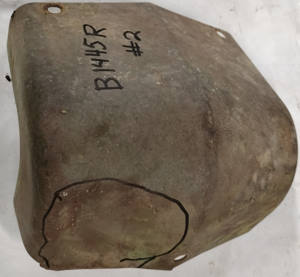

B1445R Medallion #2, will need
some cleaning and straightening, $20
B1445R medallion #4, no cuts, no dents, good bolt holes,
$60
B1445R medallion #1, no cuts, good bolt holes,one small
dent (circled in yellow), $50
B1445R medallion #5, no cuts, good bolt holes,one dent
(circled in yellow), $40
-

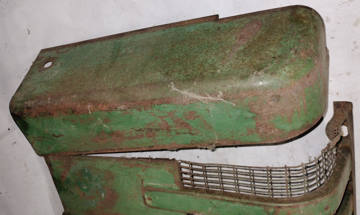

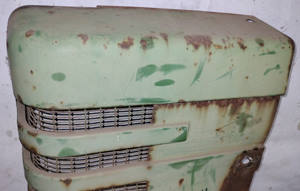

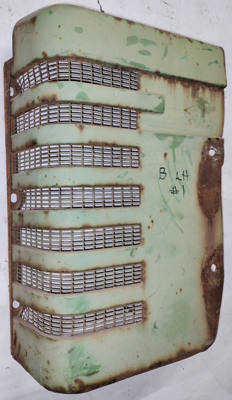

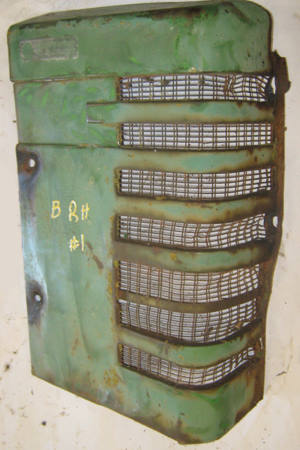

AB1534R Grille right side and AB1535R Grille left side,
both very good condition, $220 each or $395 for the pair

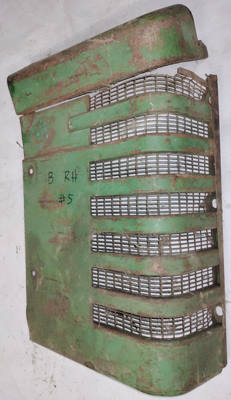

AB1534R B RH grille #3, no rust through or cuts, but
will need some straightening and new screens, $40
AB1534R B RH #2 grille, $15
AB1534R B RH grille #4, $50

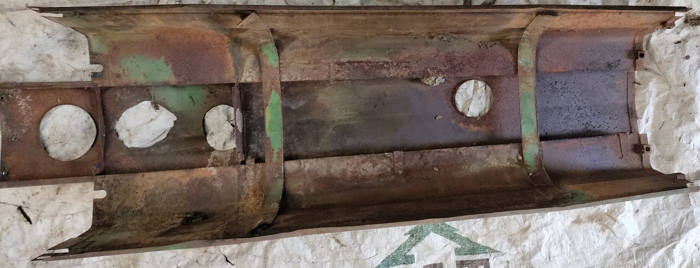

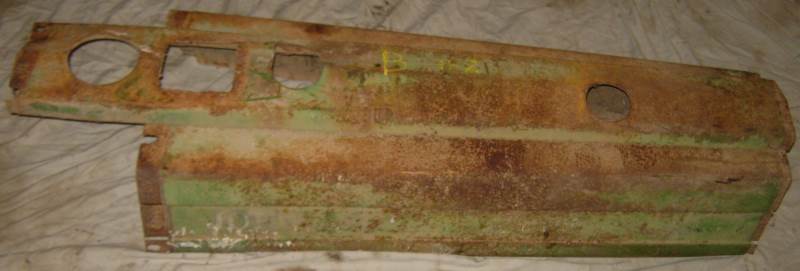

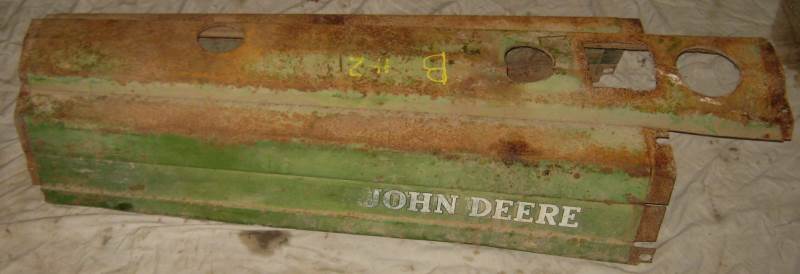

AB3569R Gasoline hood #2 for B over 201000, $35, as-is
-

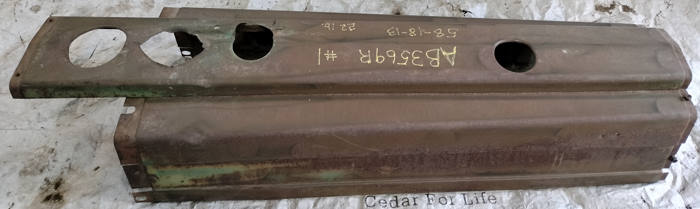

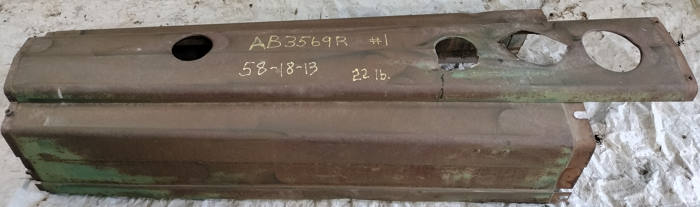

AB3569R Gasoline hood #1 for B over 201000, cuts at
muffler and air cleaner holes, $75
AB3571R Gasoline line, $15
-

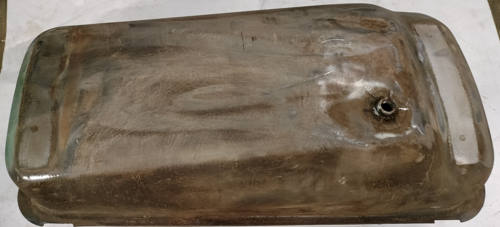

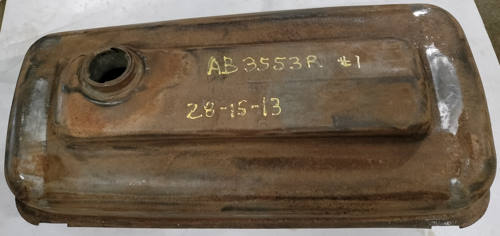

AB3553R Tank #1, for B over 201000, no deep rust, no
repairs, minimal cleanup needed, $275
-
AB2744R tank #1 for B 96000-201000, some exterior pitting,
but no rust through was noted, inside of tank is fairly clean,
$200
-
AB2744R tank #2 for B 96000-201000, some exterior pitting,
two rust through spots on tank bottom, may be more weak spots,
inside needs cleaning, as-is, $35
AB1541R hood, for B 60000-95999, one side has some
cuts and missing piece, $45
-
-
AB1538R tank #1, used on B 60000-95999, no rust through,
but everything needs to be cleaned up and soldered together, as-is,
$25
-
AB1538R tank, used on B 60000-95999, small tank and
bottom of big tank look good, but top of big tank is rusted, as-is,
$45
B1441R tank clips, $3 each
B1932R dash with good A80R throttle rod, dash casting
has a crack shown at the yellow arrows. $20
B2527R End Cap #1 for B over 201000, gauges are as-is,
$35
B2527R End Cap #1 for B over 201000, $25
B2527R End Cap #2 for B over 201000, gauges are as-is,
$30
B2527R End Cap #3 for B over 201000, gauges are as-is,
$30

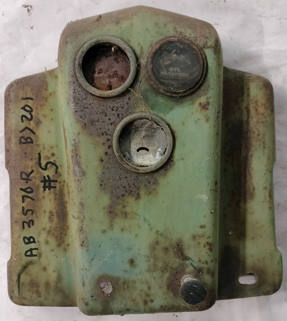

B2527R End Cap #5 for B over 201000, gauges are as-is,
$30
B2527R End Cap #6 for B over 201000, $20

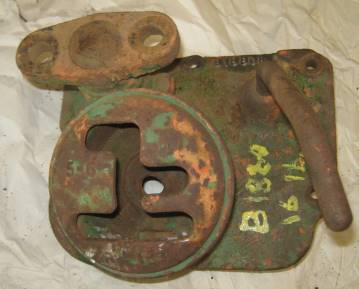

B1880R transmission cover with
mount for dash and pto lever, $25

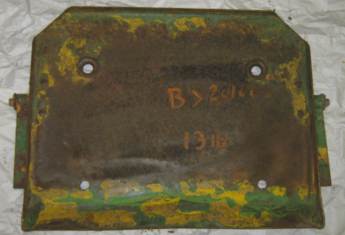

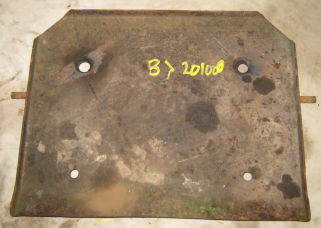

B2530R Heat shield for under tank, B over 201000, $25,
your choice
Dent free gas cap, either plain or with "Buy clean
fuel, keep it clean" $8
Taller safety type gas cap, $5
Shorter is AB2747R, $8
Longer is AB2746R, $8
AB3555R tank support B over sn 201000 , $10
AB2749R tank support for B under sn 201000. $10
AB2751R Fuel line from fuel tank to three way valve,
$18, your choice
B1900R Fuel control lever, $20
B1939R fuel control lever, $25
Three way fuel valve for styled
A or B, good condition, will need new gasket, $35
B1766R Center plate, $15
-

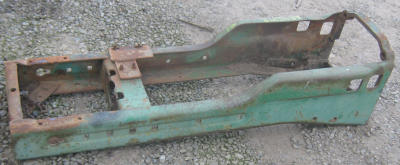

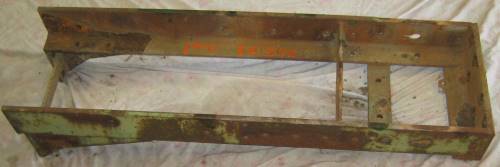

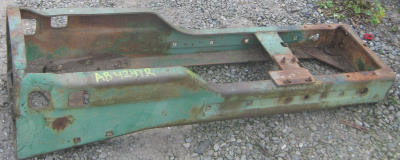

AB4247R Good frame #1 for late styled B. This frame
has no breaks or repairs, in good condition, $100 (125 lb, 54-16-15),
can ship UPS
AB4247R Good frame #2 late styled B. This frame has
no breaks or repairs, in good condition, $100 (125 lb, 54-16-15),
can ship UPS
Front end support for wartime
B, cast irn, used on #136662-166999, casting # B2013R (parts catalog
says B2012R), this was from a BW, $100
AB1509R Front frame for earlier styled B, $40, your
choice. This one has the mounting for the BW axle pivot bracket.
AB1565R tool box for B under 201000, $15

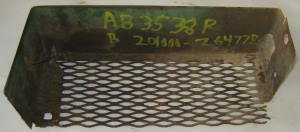

AB3538R Tool box B 201000-264778, $20, your choice
A2133R Short Shutter control rod, $25
B1518R Long Shutter control rod, $25
B over 201000
B under 201000
Choke rod, $20, your choice
B1455R Throttle rod, for 60000-201000, 25 1/2"-
26" long ,$15
B1940R speed control rod, 96000-201000, 9 inch long,
$15
Speed control and carb to gov rod for B over 201000,
$15 each
C1438R spring on throttle lever shaft, new, $7
A80R throttle lever, $25
AB3574R Speed control shaft with arm. $10
-
AB3579R center cover with springs #1 or #4, your choice,
$30
-
AB3579R center cover #3 with springs,some corrosion
inside and one spring is rusted, $20

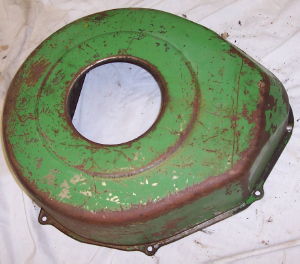

AB3578R Beadblasted and primed flywheel cover, $40
AB3578R Flywheel shroud, all
are good, Your choice $30 each
Oil line to oil gauge, $8
B2286R Starter button, $15
A1892R Special Hex Nut for attaching
implements, $2 each
A618R Seat Spring, $20
8H1268R Bolt for seat spring, with 14H480R Grip nut,
$8
C1980R Pin, $5
C1982R Cast spring holder, $5
-
A222R Seat channel, will need
some hole repair, $35

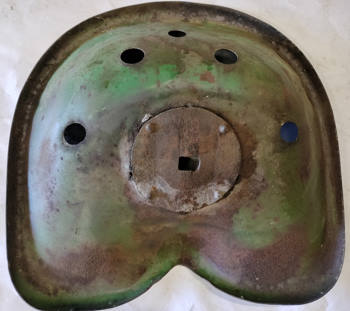

AD1606R 5 hole seat, needs a new center plate and a
little straightening, nice original, $25
Not original equipment, but a nice seat frame that
will fit the A222R seat channel, $20
AB3930R Seat frame #1, latch is in good working condition,
$35
AB3930R Seat frame #2, latch is in good working condition,
$35

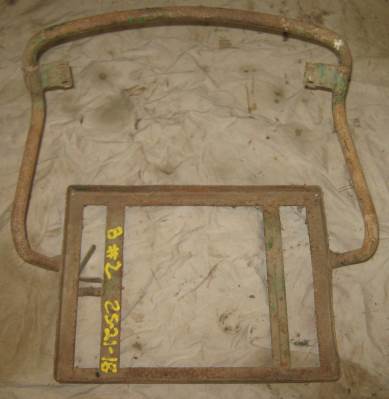

AB3930R Seat frame #3 with seat back, latch is in good
working condition, $45
AB3621R Seat Frame,latch is in good working condition,
$40
AB3930R Seat frame #4 with seat back, latch is in good
working condition, $45
-

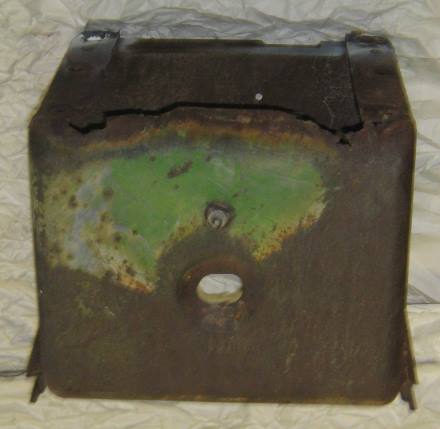

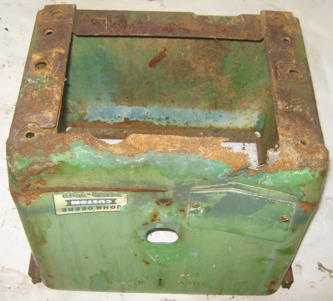

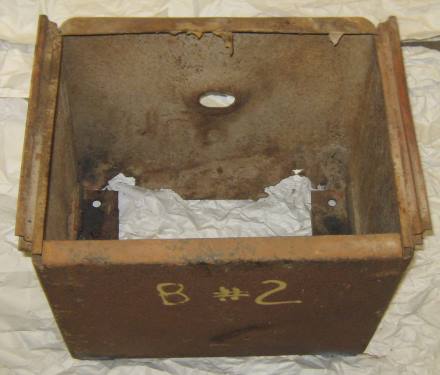

AB4101R Battery box #2, no dents or cuts, corrosion
on bottom as seen in both photos, $25
-
AB4101R Battery box #1, no dents or cuts, corrosion
on bottom as seen in both photos, $25
-
AB4101R Battery box #3, no dents or cuts, minimal corrosion,
$30
AB4101R Battery box #4, no dents or cuts, minimal corrosion,
$30
Be Careful plate, $9, your choice
AB3585R Battery base, $15, your
choice
AB299R platform #2, no cuts or repairs, but needs straightening,
$15 as-is
AB5096R B over 201000 plake with brake latches, good
condition, $30, your choice
AB5096R B over 201000 platform
without brake latches, beadblasted and painted, $30
AB5096R B over 201000 platform
without brake latches, $20
Special bolt to attach platform
to rear axle housing, $3 each, new
Short brake latch, beadblasted
and primed, $7 each
Short brake latch, $7 each
B305R Longer 8 7/8" brake
lever, $7 each

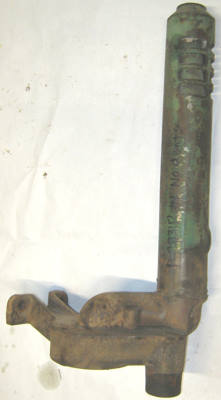

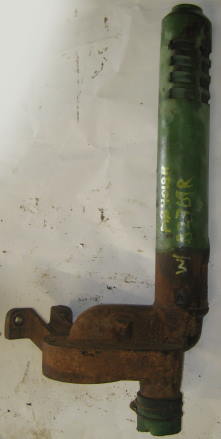

B1388R casting # on bracket,
with an air stack that is is nice and straight, $60
B1388R casting # on bracket,
with an air stack that will need some work, $20
B1388R casting # on bracket,
with an air stack that will need a small amount of straightening,
$25
B2369R casting # on bracket,
with an air stack that does not need straightening, $60
B2369R casting # on bracket,
with an air stack that need a small anount of striaghtening at
the top air opening, $45
B1829R ventilator pipe, $16
-
B1604R Ventilator pipe (B60000-201000),
$20
B2832R Ventilator pipe, $16
More ventialtor tubes, $20 each
C1705R packing nut for ventilator
tubes, $5 each
AB1624R Air cleaner body for
B, slight dent(s), $25 each
AB1624R Air cleaner body for
B, no dents, $40, your choice
-

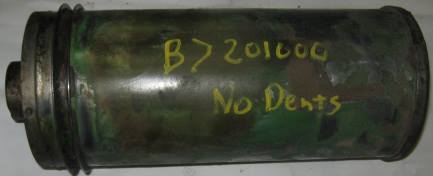

AB4233R Air cleaner boday B over 201000, no dents,
$40
Air cleaner clamp with bolt and nut, $12
Air cleaner clamp without bolt and nut, $7.50
AB1626R (AB3477R) Oil cup #1, No rust, no holes, $45
AB1626R (AB3477R) Both of these oil cups have holes,
as shown at the yellow arrows, $10 each
AB389R oil cup, $20
B2657R Ventilator inlet pipe,
$12.50
B drawbar with some modification, $20
B70R and B71R Drawbar support
side pieces with some reinforcement, $25/pair
B70R and B71R Drawbar side support
pieces, $14/pair
B72R Drawbar rear support, $25; four available, your
choice
B68R Drawbar clevis, $15
AB235R swinging drawbar, modified, $10
AB235R swinging drawbar with A1821R drawbar end, some
reinforcement, $35
-
AB1328R Drawbar support for BWH
or BNH, missing one rivet and has had the plate welded to the
side pieces, $120
A2510R drawbar pin, $15
AB3507R Drawbar support, $45
AB3618R Drawbar support will
fit high clearance BW and BN >201000 and BWH and BNH, serial
186134-201000, $40, your choice (40 lb)
B1798R water pipe, $25
Free radiator caps, some missing usable tangs
-
Nice radiator cap #4, $16
-
Nice radiator cap #7, $16
-
Nice radiator cap #5, $16
B2523R Shorter Shutter rod, $15, your choice
B2522R Long shutter rod, $20, your choice
B1522R step nut on shutter rod
B1518R shutter rod with B1522R step nut, $20
-
-

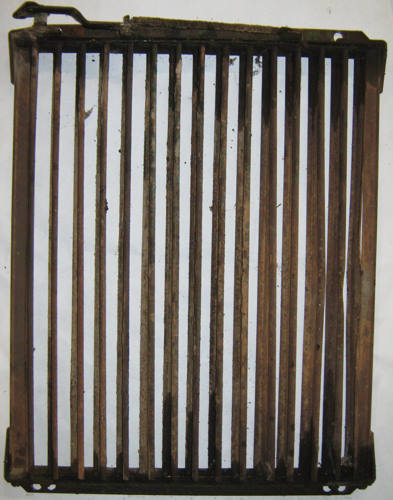

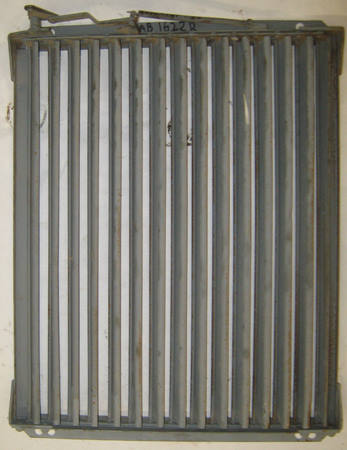

AB1622R Shutter, will fit all styled B (60000 and up),
perfect condition, opens and closes as it should easily, no braks
or repairs, no rust through, staining at top and bottom is from
lubricating penetrant, $180
AB1622R Shutter, will fit all styled B (60000 and up),
side pieces and fins need straightening and it needs to be freed
up, as-is, $30
AB4775R Radiator shroud #3 to fit all styled B's, very
nice condition, beadblasted and painted, no rust or cuts, $50
AB4775R Radiator shroud #2 to fit all styled B's, good
condtion, no rust or cuts, $45
AB4775R Radiator shroud #1 to fit all styled B's, fair
condtion, some rust through at one of the bottom corners, $25
AB4775R Radiator shroud #4 to fit all styled B's, good
condtion, no rust or cuts, $45
B3076R Overflow tube, $25
B3076R Overflow tube, Has a small hole halfway down,
free
Screen on front frame ahead of radiator, $5
Radiator parts for B under 201,000,

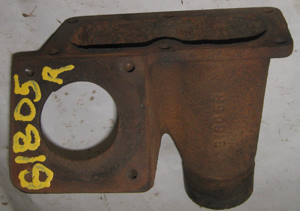

B1805R upper pipe, muffler mounting
is mostly broken off, as-is, free with any order
-
B1805R Upper pipe with muffler
mount, no breaks or repairs, $85
-

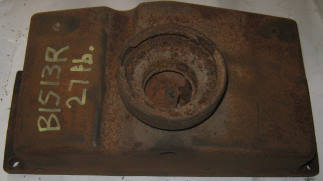

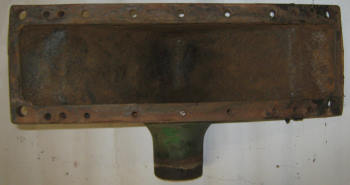

B1513R Top tank, some bolts broken
off and need to be drilled, no breaks or repairs to casting, $25
-
B1514R bottom tank, good condition, but studs will
need to be drilled out, $20
2 3/8 inch inner diameter Gates Green Stripe Radiator
Hose, cut to length, $2 per inch
-

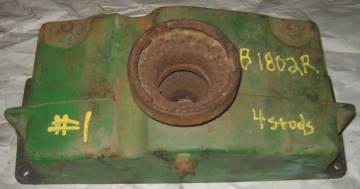

B1802R top tank #1 in good condition,
will need four studs drilled out, $35
-
B1802R top tank #2 in good condition,
will need two studs drilled out, $35
B1802R top tank #3 in good condition,
will need two studs drilled out, $35
-

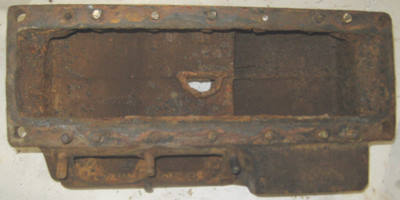

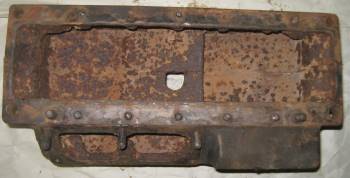

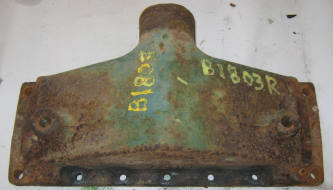

B1803R bottom tank #2 in good
condition, $35
B1803R bottom tank #1, will need
some studs drilled and tapped, $20
B1515R sides, $12, one available
B1804R sides, $10 each
Above 201000, Radiator
parts:
Used radiator core, $25
2 3/8 inch inner diameter Gates Green Stripe Radiator
Hose, cut to length, $2 per inch

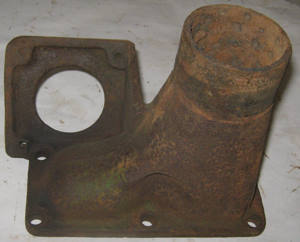

Upper water pipe with muffler mount, B2605R, no breaks, no repairs,
$25

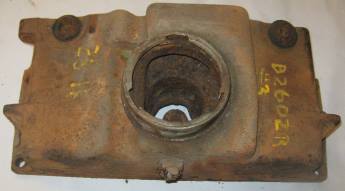

B2602R Top tank: No filler flange,
some bolts broken off and need to be drilled, no breaks or repairs
to casting, $25 (30 lb)
B2602R Top tank #1: Good filler
flange, some bolts broken off and need to be drilled, no breaks
or repairs to casting, $35 (30 lb)
-
B2602R Top tank #2: Good filler
flange, some bolts broken off and need to be drilled, no breaks
or repairs to casting, $35 (30 lb)
-
B2602R Top tank #3: Good filler
flange, some bolts broken off and need to be drilled, no breaks
or repairs to casting, $25 (30 lb)
-

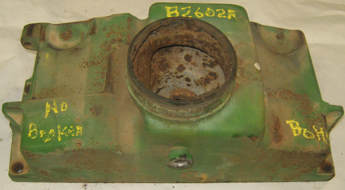

B2602R Top tank #1: Good filler
flange, no bolts broken off or need to be drilled, no breaks or
repairs to casting, $45 (30 lb)

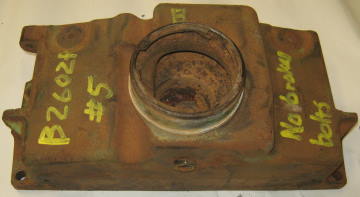

B2602R Top tank #5: Good filler
flange, no bolts broken off or need to be drilled, no breaks or
repairs to casting, $45 (30 lb)
-
B 2603R bottom tank #1, one threaded hole needs to
be drilled and tapped, $25
-
B 2603R bottom tank #2, some thread holes need to be
drilled and tapped, $25
-
B 2603R bottom tank #3, some thread holes need to be
drilled and tapped, $25
-

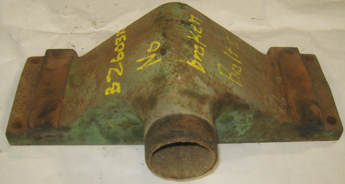

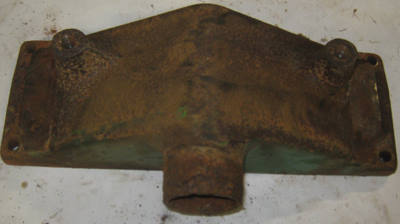

B 2603R bottom tank, some thread holes need to be drilled
and tapped, $25, your choice
-
B1766R Center plate, $15, your
choice

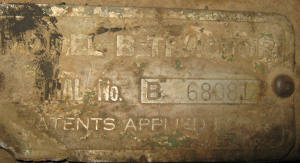

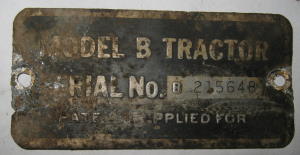

Tag and case from a BNH, #112073,
$100 (will separate)
-
Tag and case from a 1939 B, serial
68081, no breaks or repairs, $50 or tag only $40
Tag 210562 from a tricycle B, $25
Tag B224747, includes serial
number research that shows this was a tricycle B sent to Modesto,
CA, $25
Tag 172868, from a BN, $45
B tag 204268, $25
