Hydraulic and Implement Parts for John Deere Model B

Parts for both early styled (s.n. 60,000-201,000) and late styled B (s.n.>201,000). Click here for other JD styled B parts. If you don't see what you need, e-mail and ask!!



-

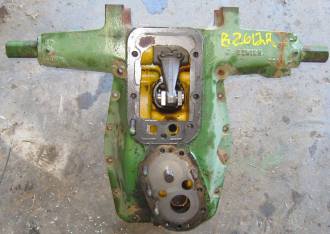

Very nice powerlift for late B, casting # B2612R, looks like new inside, $80

Another very nice powerlift for late B, casting # B2612R, looks like new inside, $80 (137 lb)

-

B1150/R casting number with A1430R valve control, it has a toothed gear on the pto shaft that could be removed. $150

A1444R Spring and A1453R Shield, $25 (Spring has some corrosion)

A1108R rockshaft, with or without dowel pin, $14 each

B1148R (AB3115R) crank arm, $16

B1142R hydraulic cylinder, bore is very smooth, $35

B1146R piston with connecting rod, $25

B2798R piston with connecting rod, $25

A1443R, $12

B2620R, $12

AA3744R Hydraulic control lever, $35


AA3744R Hydraulic control lever, good threads, $30

AA3744 Hydraulic control lever, usable, with some bad threads, $10

A3613R coupling, $25 each, two available

AA4980R dummy plug, $12


A3140R Adaptor nut, $7

A3141R shear washer, $15, three available

A3611R lever, $15

A3100R plug, $10

A1441R plug, $6

A3132R Spring, $6

AA5529R Adaptor, $6

A3096R Spring, $6

A3894R Outer check valve , $10

R754R Relief valve, $6
A659R spring, $6

A3131R Cap with nipple$8

Valve control top cover, $8

AA3754R Plug bracket, $20

A1446R (AA4101R) Throttle valve, $10
B268R spring, $10

-

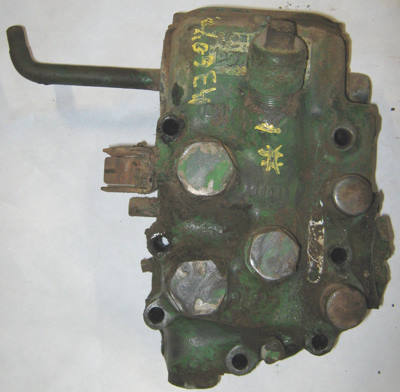

A3436R Control valve #1, $40

-

A3436R valve control #2, $40

AA5535R (Sub. A 3613R) couplings to fit the A3604R valve control, $50 for the pair

A3637R Cylinder bracket that mounts to rockshaft housing, $15

A1892R Special Hex Nut for attaching implements, $3 each

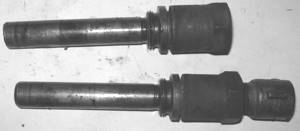

B2618R PTO Shaft #1, slight scoring, $35

B2618R PTO Shaft #2, slight scoring, $35

A895R bushing, $9

A2432R Cup oil seal, $5
A2436R Packing Oil seal, $2
24H316R Oil seal washer, not available
F215R Snap ring, $3
A2435R Spring, $6

All part shown above, $14

-

PTO pump #2 with A2431R cover, B2617R pump body and both gears, no scoring on A2431R, in excellent condition, $75







B487R Powershaft, $45

Pump gears for above shaft, $15

A817R pump cover, $15

-

-

Valve control with A1430R casting number, $50, your choice

Right hand foot pedal and shaft, $20

Left hand foot pedal, $15

A1450R Pedal return spring for above pedal and shaft, $20

Linkage from foot pedal to valve control, $10

-

Shop built three point hitch, came off a G, but should fit A or B as well, Draft arms mount to drawbar support, lift links to rodkshaft, top link to rear axle housing. Free, but must pick up here

800 and 801 Hitch parts:

Swivel, $10
