    Parts for John Deere Model A -Wheels, Front End, Steering

    9/16-18 lug nut for rear wheels, $1.50 each or set of six for $7.50

    9/16-18 lug nut for some front hubs used on AO, AR, and D hubs,stamped with R-(star), $1.50 each or set of six for $7.50

    1/2-20 lug nuts for front wheels, $1.50 each or set of six for $7.50

    -

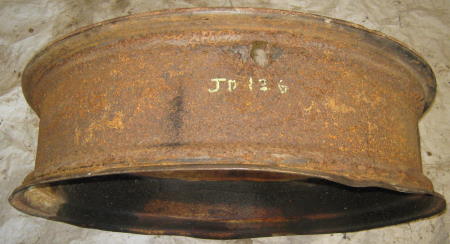

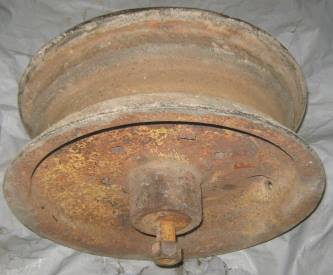

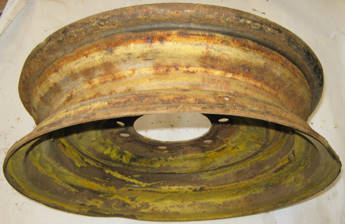

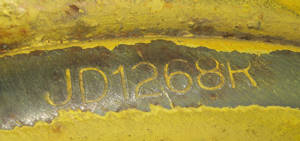

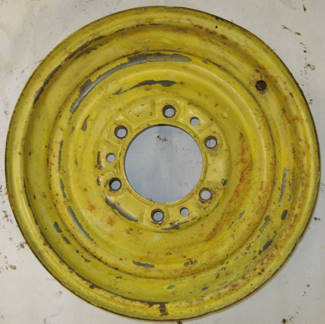

    JD1268R stamped Wheel, 4 x 16, minimal rust, but needs some rim repair, $50



    A1100R FRONT END (ANTEATER STYLE PEDESTAL)

    -

    -

    A2828R Pedestal (with vertical shaft, sterering gear and all other internal parts), A1100R Axle (includes three steering arms and tie rods), knees with spindles and A1553R hubs, $900 and can ship truck freight. Will fit Model A Serial # 477000 to 583999

    AB452R Rear Pivot Bracket (with adaptor plate to fit Model A) $200 and sold only with the above front end assembly



    Parts for Unstyled and Styled Wide front ends with either A1100R center section or B1207R center section

    -

    B829R Center steering arm, one ball shows some wear, but no breaks or repairs, $100

    Tie rod with H982R end (complete with all internal parts), overall length 21 1/2 inch, $35

    H982R tie rod end with all internal parts, $25 each

    A893R upper clamp, B1233R lower clamp, with bolt, $15 each

    Various tie rods of different lengths (18 1/2, 17 1/2. 14 1/2 inches long) (A892R, B1221R, B1205R, B1206R), $20 each

    Complete tie rod set as shown, all internal parts included, $100

    Top and bottom views of A1100R center housing, no breaks or repairs, $200 can ship UPS

    A833R ( AA730R) Knee, no breaks or repairs, good bushings, two available, $90 each

    A887R U-bolt, two available, $20 each or both $32

    A891R steering arm, $160

    A1101R Lock bolt, $10

    A1101R lcok bolt with wahser and nut, $15

    A890R thrust washer, $10 each

    D467R Shim washer, $3

    B1236R (AB4685R) Ball down steering arm, no breaks or repairs, $160

    B3264R Ball up steering arm, no breaks or repairs, $180

    ROUND TUBE WIDE FRONT END:

    -

    Complete Round Wide front end #1 to fit late A and B with the split pedestal, Complete including the hubs, steering arms, tie rods, mounting plates, and all mounting bolts. Nothing is either broken or repaired-everything is in very good condition. Ready to go to work on your tractor.
    $850 plus truck freight shipping or it can be picked up here.

    If you need the split pedestal, I also have them available for both Models A or B.

    -

    -

    Complete Round Wide front end #2 to fit late A and B with the split pedestal, Complete including the hubs, steering arms, tie rods, mounting plates, and all mounting bolts. Nothing is either broken or repaired-everything is in very good condition. Ready to go to work on your tractor.
    $850 plus truck freight shipping or it can be picked up here.

    If you need the split pedestal, I also have them available for both Models A or B.



    B2694R Lock bolt with 1" nut, $15

    -

    A3277R split pedestal #1, great condition, no breaks, no repairs,, includes vertical shaft, eccentric, steering gear and both covers, $260

    -

    A3277R split pedestal #2, great condition, no breaks, no repairs,, includes vertical shaft, eccentric, steering gear and both covers, $260

    -

    Serial number tag for styled AW with round tube front axle, $50 with or without case (tag is still on case)

    Serial number tag confirmed correct for styled AW, $100 with case (tag is still on case) or $80 alone

    OTHER FRONT END PARTS

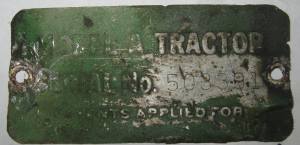

    Serial tag, $25

    -

    -

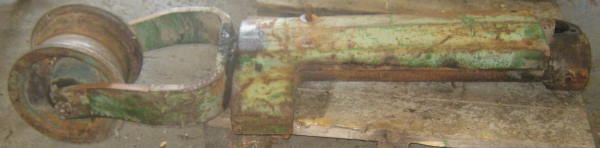

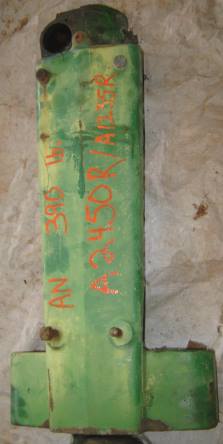

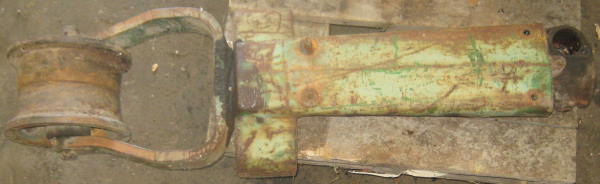

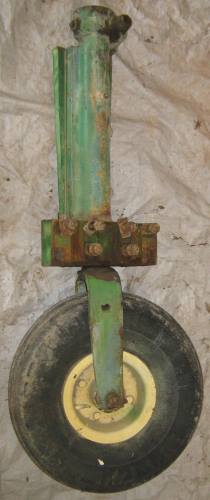

    Four views of a complete AN front end for tractors under serial 584,000. Includes A2450R pedestal that includes all internal parts (verical shaft and fork, sector gear, and eccentric bushing) with A1235R wheel (390 lb.), $350 - may be willing to separate parts. Pick up here or I can ship truck freight.

    Serial tag from the above AN front end, $35, sold only with the front end





    Four views of a complete AN front end for tractors under serial 584,000. Includes A2827R pedestal that includes all internal parts (verical shaft and fork, sector gear, and eccentric bushing) with A1235R wheel (360 lb.), $350 - may be willing to separate parts. Pick up here or I can ship truck freight.

    AN serial tag 576089, $25, This serial tag is matched to the front end with the A2827R pedestal that is shown above.

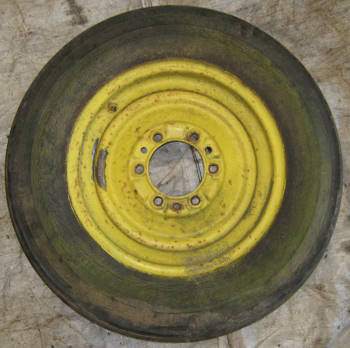

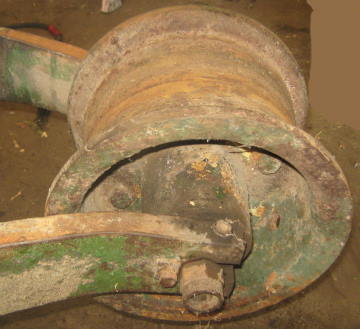

    B2681R wheel with tire, with good axle and bearings, $95 (160 lb with tire, 135 lb without)

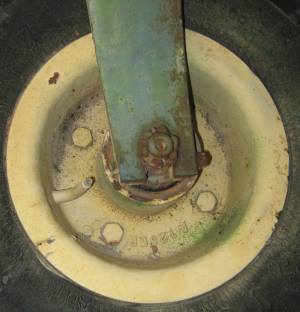

    B2681R wheel with good axle and bearings, $95 (160 lb with tire, 135 lb without)



    A2122R Bearing housing, $10

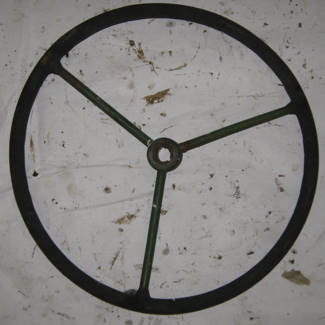

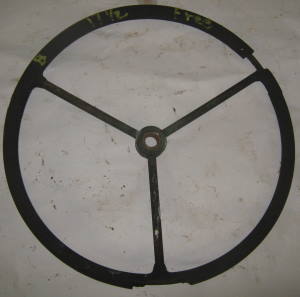

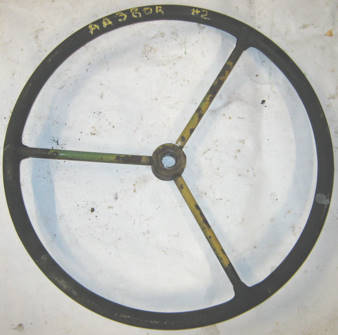

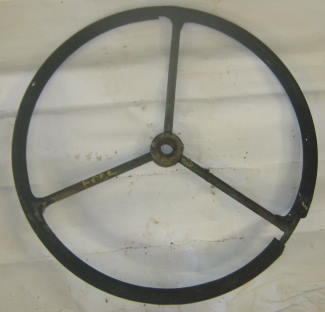

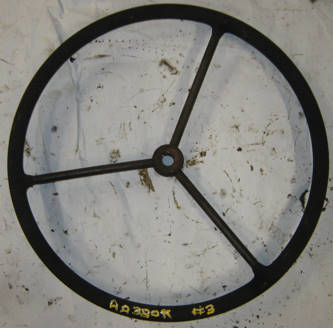

    17 1/2 inch steering wheel, with good rubber, one spot needs to be filled, $25

    - -

    Either of these steering wheels free with any order

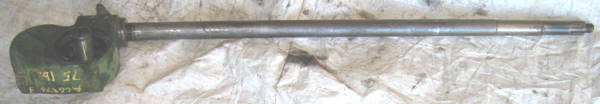

    AA1776R Steering shaft, $35 (Approimately 87 inches long)

    JD7205R steering bearing. $10 each

    C535R nut, $4
    A133R washer, $2

    A490R steel shim, Not available
    19H205R, Screw, $4

    -

    A491R/AA5521R, steering eccentric bushing, $30, your choice

    A2118R Cover for styled A steering pedestal, $10

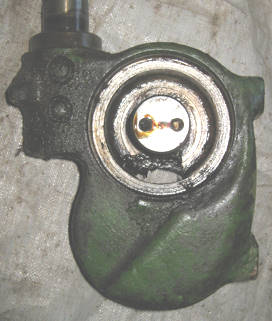

    Pedestal for styled tractor (47700-583999) , tricycle front end, $40



    Rollomatic front end parts:

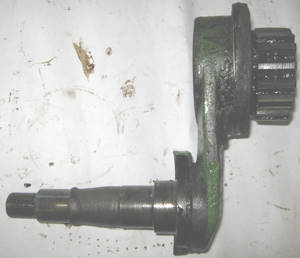

    A3472R (AA4098R) LH Knuckle, good bearing surfaces and good teeth, $65

    A3476R Thrust washer, $10

    A3477R Knuckle cap, $8. one available

    A2112R center plate. $15

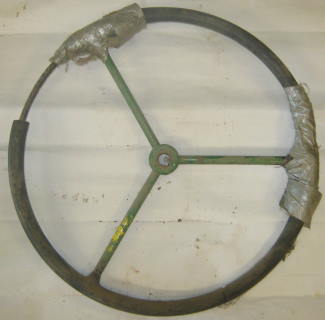

    Repairable Steering wheel, with some rubber pieces missing, free with any order.

    A1553R hub, includes both bearings and retainer, $30

    - -

    A1555R hub cap, $16

    AD452R spindle nut, $15

    D1082R spindle nut, $15

    A3004R hub, includes good used bearings, $40

    Set of two D2628R John Deere genuine original weights, $190/pair (140 pounds each), can ship UPS

    - -

    A2466R Rear hub with A1812R Hub clamp and three 7/8 x 4 1/2 bolts, Complete set $150; One set available.

    -

    -

    NIne hole pressed steel wheel 11 x 38 with nearly good 320/85R-38 tire, wheel has some reinforcing, but is good and usable, $225



    -

    NIne hole pressed steel wheel 11 x 38 with nearly new 12.4-38 tire, wheel is in very good condition, $450

    -

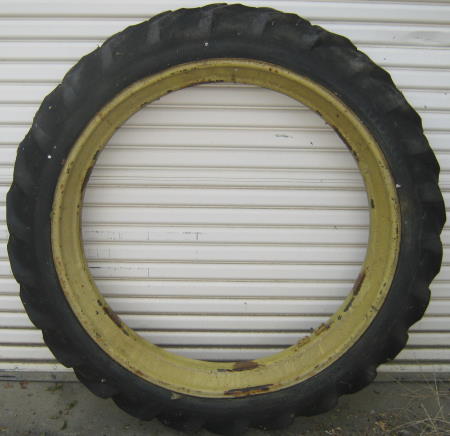

    11 x 38 Demountable rim with 13.6-38 tire, tire is like new, $450, can ship truck freight (too large to ship UPS)

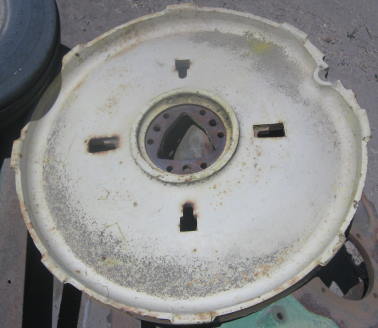

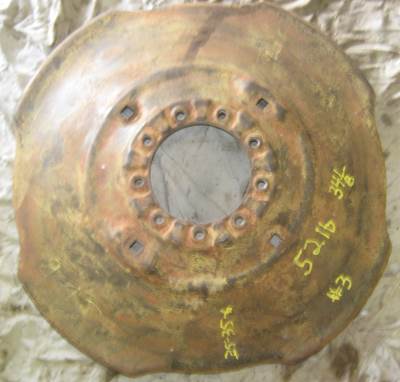

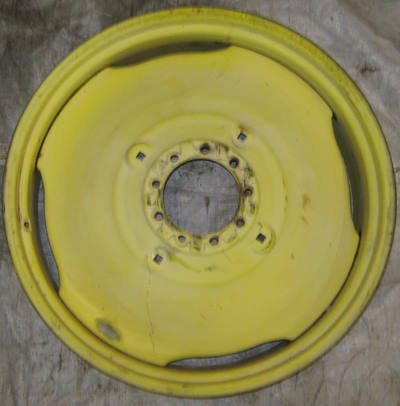

    Wheel center, outer diameter 34 1/8 inch. Use this center and your wide rim to make a light weight wheel for your pulling tractor, the 9 hole bolt pattern fits A3248R, A2466R, B1678R, and B2277R hubs, $80

    B634R rim clamp, $3 each

    -

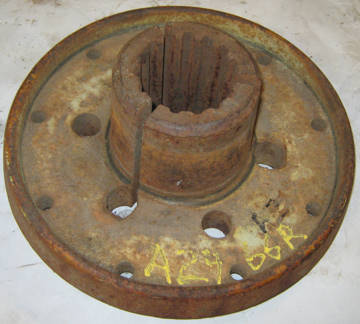

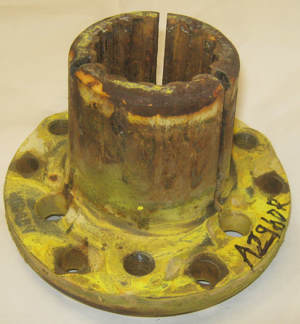

    A2960R 15 spline hub, $60 each, two available

    -

    A2960R hub, usable with one crack on one ear, $15

    A2961R Special hardened bolt to attach hub to cast center, with nut, $2.50 each set

    B1961R hub clamp $40

    Special 3/4 x 4 bolt to fit the B1961R clamp, $8 each

    A1812R Hub clamp, $45; one available

    A1813R 7/8 x 4 1/2 bolt for the A1812R clamp, $5 each

    A3149R cast center for 38 inch rims, $50, one available, 4 mounting studs per center

    -

    11 x 38 Demountable rim #3, no rust through, $80

    -

    11 x 38 Demountable rim #4, no rust through, $80



    A3402R Rear wheel center for 42 inch rims, $40 each

    -

    Wilson Nutwell JD 34-35 weights to fit the A3402R centers, $150 for the pair

    -

    AA4025R 10 x 42 rim #1, Excellent condition, no rust, $120

    -

    AA4025R 10 x 42 rim #2, Excellent condition, no rust, $120

    -

    AA4025R 10 x 42 rim #4,One pinhole rust through, pitting inside rim, some straightening needed at bead, $35
