Parts for John
Deere Unstyled Model A, AR, and AO
-
-

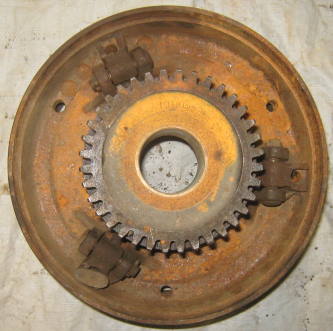

Three views of a complete clutch assembly with A17R
pulley, no bearing, bushing in good condition, includes operating
sleeve, dogs, toggles and one operating bolt, operating sleeve
moves the dogs and toggles correctly, $90
C614R Clutch lining, $10 each, good used
Snap ring,$5
Clutch driving disk with worn splines that can be built
up: $20
A20R adjusting disk, $20
A82R and A78R, with some wear
on bronze collar, but still usable, $35 (Note that A82R is no
longer available from Deere)
Cluch fork shaft, $24
Spring, $5
A21R, $25
Pulley brake, $30
Operating bolt, A135R, $15
Toggle, A141R, $5
Dog, C74R, Not available
Pin, D355R, $3
A556R First Reduction Gear cover, $30
A909R First reduction gear cover AR/AO, $35
A946R Bradket, steering,$10
A944R Bracket, speed control, $10
-
AA329R Dust shield, $25
First reduction gear, A12R, $30
A817R pump cover, $25
Hydraulic pump gears, $6 each
A565R cover on side of case for pto shaft, $15
Pto bevel gear, $25
Sliding gear, $25
Shaft with bevel gear, $25
Pto operating lever, $10
Shift lever for unstyled A row crop, $15
A597R Spring $5
A598R Pawl $8
Transmission gears for unst A, AO,AR, Complete set
$250, or priced individually on request
A114R Countershaft idler gear, $45
A2316R Countershaft thrust washer, $6
JD8620R and JD7914R, roller bearings, $15 each
AR differential with brake shaft, very good condition,
$80
Row crop differential assembly with A10R casting number,
very good condition, $70 (85 lb.)
Differential assembly without crown gear, all parts
good condition, $20
A1384R Bull gear, $45 (65 lb.)
A76R Axle nut, $25 (or two for $45)
AA1602R Rear axle, $60 (65 lb.)
JD7245R Inner and outer axle bearing, good condition,
for A/AO/AR, $16 each
AR/AO rear axle shaft, $50 each
RH (approx 27 inch) AA1596R
LH (approx 25 inch) AA1597R
Special bolt and nut for axle flange to wheel or cast
center, $3 each, 4 available
A828R Rear axle housing, Row crop A, $50 (300 lb.)

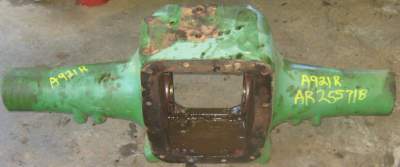

A921R rear axle housing, AR/AO, $50
Parts for unstyled A brakes
AA314R brake with usable lining, needs to be ceaned
in solvent, $12 each shoe
AA314R brake with usable lining, good condition, $18
each shoe
A1162R pinion. $16
A348R spring, $2
A152R Brake lever shaft , $12
A321R cam, $2
A151R adjusting screw, $5
C535R Nut, $1
5/8 nut, $.25
24H77R Washer, $1
D136R Washer, $1
Brake shaft and drum, $20 Brake drum, $10
=
A1161R brake housing with pedal, brake lever shaft,
cam, and adjusting screw, both brake lever shaft and adjusting
screw are loose, $45 left side
A1161R brake housing, fits left or right side, both
brake lever shaft and adjusting screw are loose, $30
Brake pedals, $12.50 each
A976R AR brake drum, $25
A972R AR brake housing, $25
For AO and AR: A910R, A911R, and A1015R shifter forks,
$15 each or all three for $35
For Row crop A: A594R and A595R shifter forks, $15
each
Shaft for shifter forks, $5
A917R, AR/AO Gear shifter arm, $25
A115R A/AR/AO Overdrive shifter lever, $10
A916R, AR/AO gearshift lever, $10
A556R, AR/AO overdrive shift lever, $10

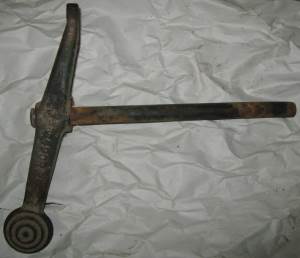

B490R RH foot trip pedal with shaft, $25. This is the
smaller, early style pedal.
B491R LH foot trip pedal, $25. This is the smaller,
early style pedal.
C1224R spring, $4
Connecting rod between pedals and valve control, $7
-
-
Be-Ge valve control unit from a styled A, complete
from a non running tractor, sold as is, $50
-
Be-Ge valve control unit from an unstyled A, complete
from a non running tractor, sold as is, $50
A1141R main case with brass tag #251760 for AR (Two
Cylinder Club research documention can be provided. It was shipped
Dec 13, 1935 to Arcata, California.), $160, Willing to remove
tag and sell it separately, same price.
Tag # 255718 for AR. (Two Cylinder Club research documention
can be provided. It was shipped Jan 19, 1938 to Arcata, California.),
$125
A950R frame for AR or AO, $50
