Parts for John Deere Model A - Sheet Metal and External Parts



-

AD1606R 7 hole seat #2, $25, needs center repair and some straightening

-

AD1606R 5 hole seat , $30, needs center repair

19 hole seat, needs center repair, $20

18 hole seat, not Deere, $20

-

AA1429R shutter, works perfectly after a rebuild by Tim Sierens, fits only AOS #1215-1743, $450

- -

AA1582R RH fender, note that there is some corrosion in the bottom part of it, $80

AA1999R Right hand side cover at battery, $25

AA2000R Left hand side cover at battery, $30 each, your choice

A2227R Top cover at battery, $25

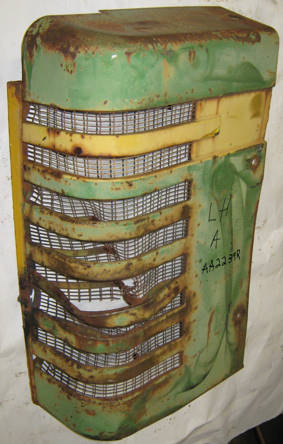

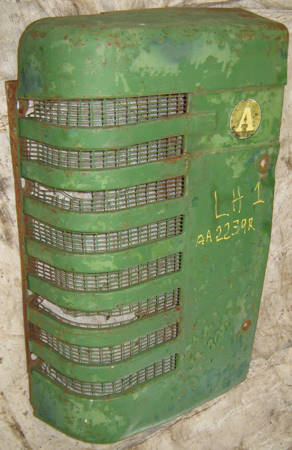

AA2239R LH grille #1, no rust through, will need some straightening, $70

AA2239R LH grille #2, see photo needs repair, $40 as-is

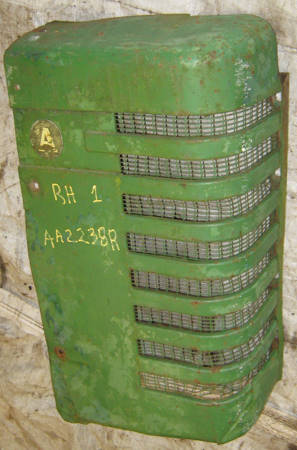

AA2238R LH grille #1, no rust through, will need some straightening, $70

- -

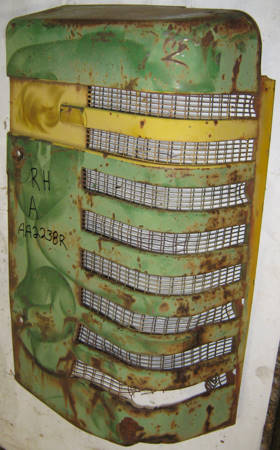

AA2238R RH grille, see photo needs repair, $30 as-is

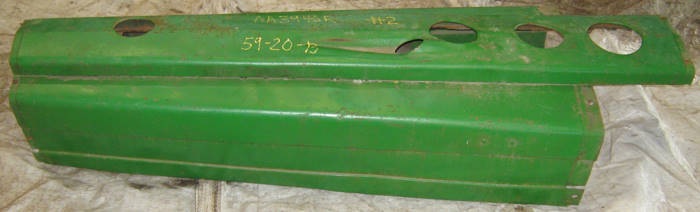

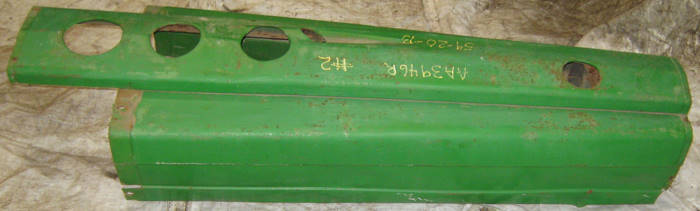

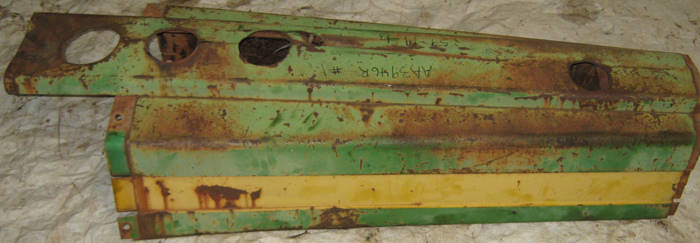

AA3946R Hood #2 gasoline hood for late A, not cut, no rust through, some dents to straighten, $120

AA3946R Hood $1 gasoline hood for late A, not cut, no rust through, includes heat shield, $135

Gasoline hood #5, cut at muffler hole, some surface rust, straight, $40

-

A2144R Medallion, straight but has a washer welded over bottom mounting hole, $30

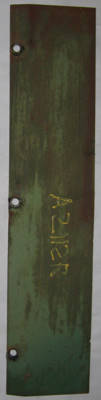

A2112R Center plate, $20

AQ3948R End cap, $25

AA3947R End cap, $25

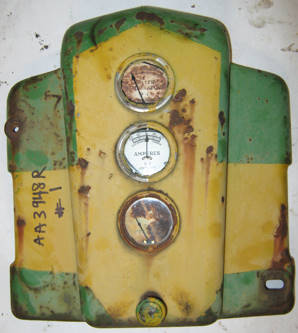

AA3948R End cap, gauges may work, but are as-is, $25

AA3948R End cap, $25

End cap with non Deere gauges, $25

-

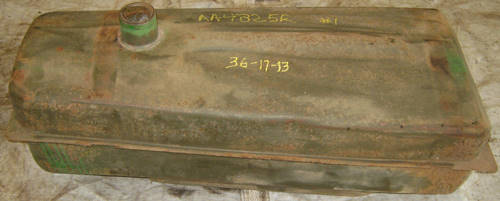

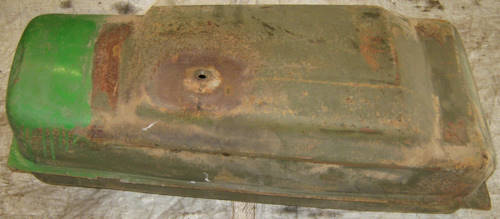

AA4825R Tank for very late A, good condition, no rust through, only minimal cleaning needed, $195

B1441R tank clips, $4 each

Rounded gasoline tank, needs both cleaning and filler neck, free with any order

Dent free gas cap, either plain or with "Buy clean fuel, keep it clean" $8

Taller safety type gas cap, $5

AA4331R Fuel Filter (Sediment bowl), good condition but may need cleanup, glass bowl is not chipped or broken, $12

AA2349R Gasoline line for A over 584000, $15, your choice

AB2805R Three way fuel valve, rotates freely, may need new gasket, $50

A3316R Heat shield, $25

AA4827R One piece heat shield, $25

Late style head shield with AA4286R Front and A4142R lower pieces, $25

AA2254R and AA2255R Tank brackets, $8 each, your choice

Drawbar sides (A216R and A217R) and rear support

A216R and A217R drawbar side support brackets, $30 each
A212R Rear support, $30



A217R drawbar side support brackets, $30

B67R Roller pin. $5

A2510R drawbar pin, $15

A4822R ( A3220R ) Drawbar, nice and straight, rear pin hole has been enlarged, $45

- -

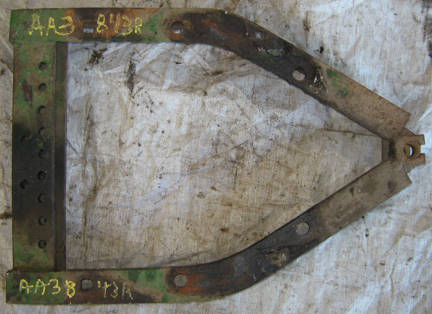

AA3843R Later style drawbar support, $40, several to choose from

AA3848R Drawbar support (ANH, AWH below 584000 and AN, AW above 584000), $45

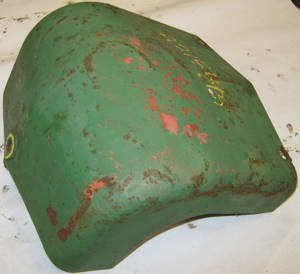

AA3937R Flywheel cover #2 for late A, $40

AA3937R Flywheel cover #2 for late A, missing the top right mounting tab, $25

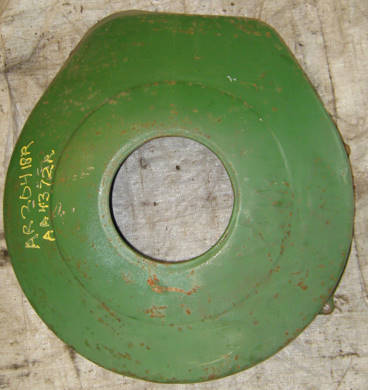

AA4372R (AR20418R) Very late A flywheel cover, $35



Nice patina AB3579R Center cover, all three springs are good, $35

AB3579R Center cover, primed, all three springs are good, $30

AB3579R Center cover #2, all three springs are good, $30

-

AB3579R center cover #3 with springs,some corrosion inside and one spring is rusted, $10 each

A1892R Special Hex Nut for attaching implements, $3 each

1/2" x 1" Special bolt to attach platform to rear axle housing, $3 each, new (A above 584000)



Brake latches, $7 each

- - -

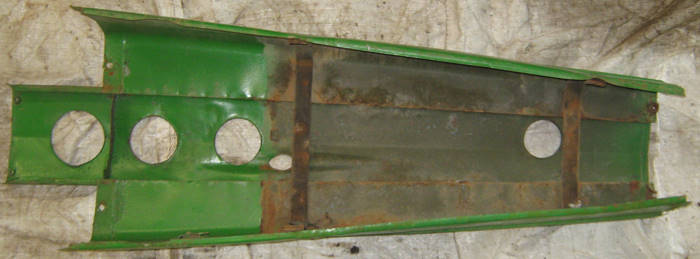

AA6540R platform, A over 584000, $35, your choice
AA6540R platform with no latches, $25

AA4841R Battery box and seat base, very nice with no corrosion, $50

Be Careful plate, $15

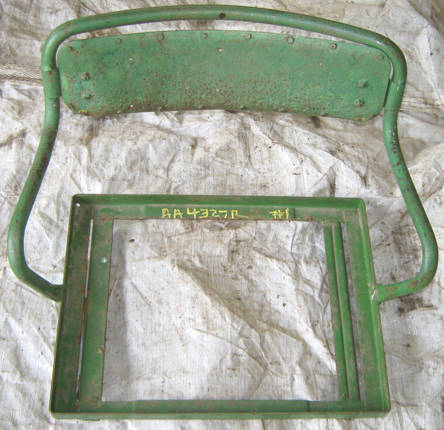

AA4327R Seat frame #1, $35

AA3957R seat frame #1, , without seat back, good latch parts, $35

AA4327R seat frame that came from a G, $35

Seat frame #2 with good latch, seat back is bent up slightly, latch is good, $25

Seat frame #3, without seat back, good latch parts, $35

\

Seat frame 5, $30



AA6540R (with short brake latches used on styled tractors), your choice



-

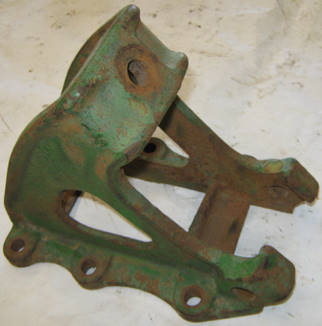

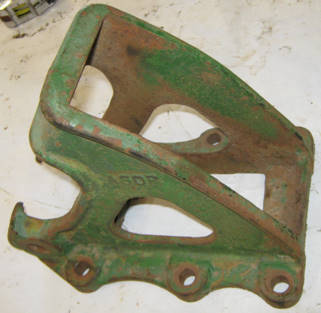

Two views of A60R seat bracket, excellent condition with no breaks or repairs, pin holes are good, $80

-

A222R Seat channel, will need some hole repair, $25

-

A222R Seat channel, will need some hole repair, $20

-

A222R Seat channel, will need some hole repair, $25

C1980R Pin, $8

A618R Seat spring, $20


C1982R Cast spring holder, $5

-

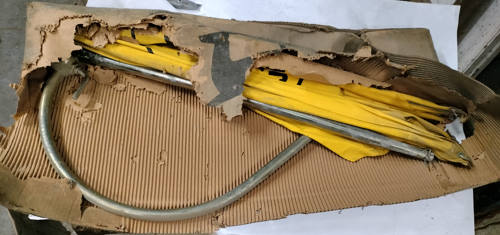

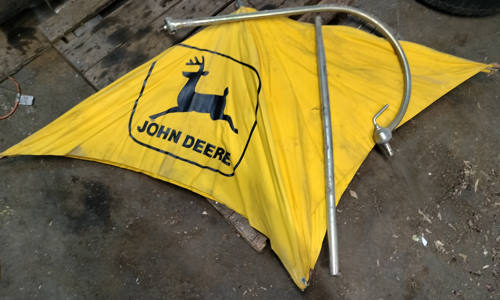

TY2035 Umbrella assembly, NOS shows some shelf wear, $100

A2166R Ventilator pipe for A 477000-584000, $25

A4035R Ventilator pipe inlet, $20

AA4033R Ventilator Outlet pipe, $20

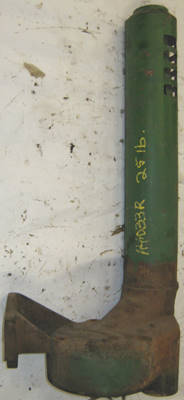

AA2242R; A2215R bracket with AA1941R air stack, stack has been welded to bracket, $35

A2387R bracket casting with AA1941R air stack, stack stack is in very good condition, $45

-

A3388R air cleaner top with good auxiliary stack #1, $45

-

A3388R air cleaner top with good auxiliary stack #2, $45

A2387R Cast air cleaner top, $10

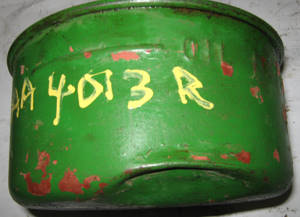

AA5548R Air cleaner body, A 477000-584000, $30, slight to no dents, similar to above, your choice

-

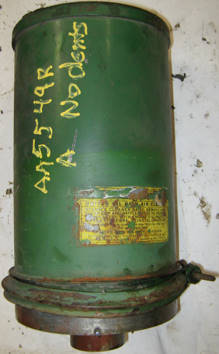

AA5549R air cleaner body (fits the AA4658R bracket and stack), $35

Nice air cleaner body from A over 584000, $35

Air cleaner clamp with tightening bolt, $10

Air cleaner clamp, no bolt, $5

AA3391R Ventilator inlet pipe, $15, your choice


Air intake pipe, A2447R, $15

A3390R elbow, $25

A4036R carburetor to air cleaner elbow, $25

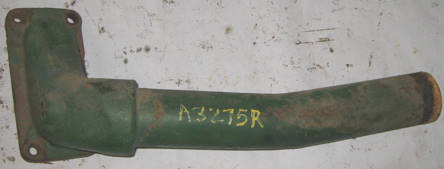

A23275R upper water pipe, steel pipe is in very good condition,$30

-

A2375R casting for upper pipe, $10

A3038R water pipe, $20

Radiator strap, $3

-

AB1621R B1869R radiator cap, good gasket and good tangs, no dents, $18

-

AB1621R Radiator cap, good gasket and tangs, $18

Free#1, #2, and #3 missing the tangs to hold them in place, one free with each order

A3297R Long shutter rod,$20

A2133R Short Shutter control rod, $25

B2523R Short shutter rod, $20

-

AA1342R Heat Indicator Gauge, $30

-

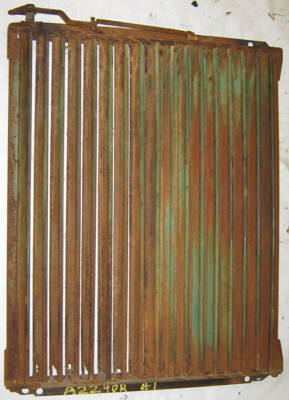

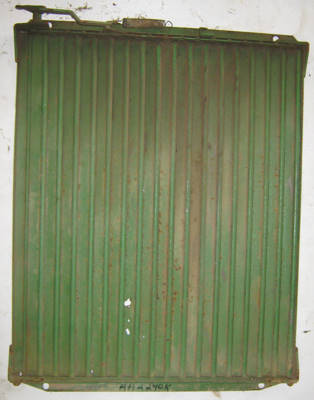

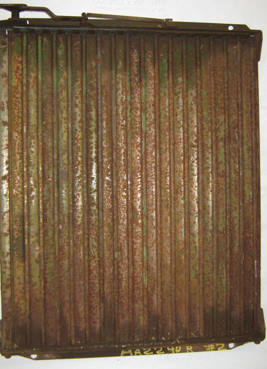

AA2240R Shutter, opens and closes as it should, there are a few fins with rust through as shown in the photo, $80

-

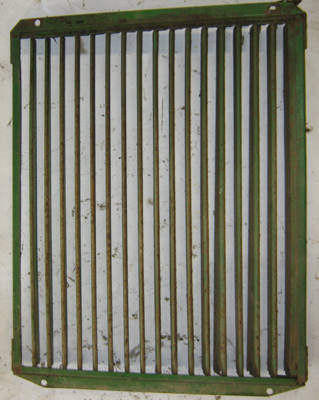

AA2240R Shutter, opens and closes as it should, one fin with rust through as shown in the photo, $100

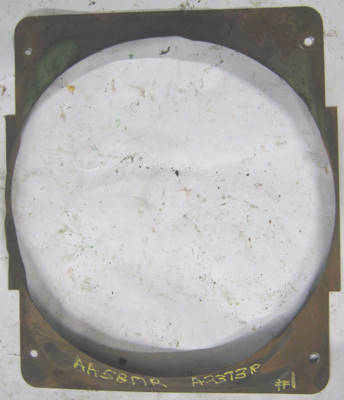

AA5817R Radiator shroud (sub. A2373R) very good condition, $35

-- -

Complete radiator with A2367R top tank, $100, pick up here only

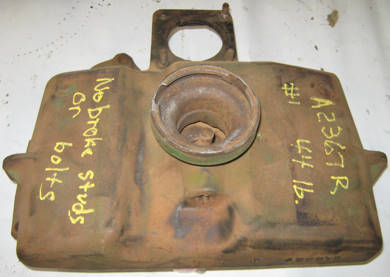

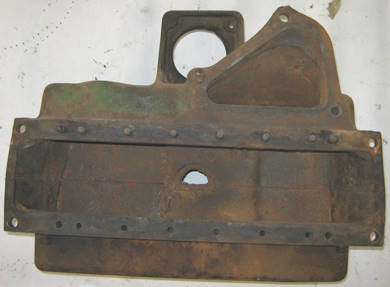

A2367R radiator top tank, good condition, similar to above. It has some broken off bolts to drill and retap. No breaks or repairs. $45

-

A2367R radiator top tank, good condition, similar to above. It has some broken off bolts to drill and retap. No breaks or repairs. $45

A2367R radiator top tank, good condition, No breaks or repairs. $45

-

A2367R radiator top tank, good condition, no breaks or repairs, needs new filler neck and three studs drilled out, $25

A2370R upper water pipe for radiator, $15

-

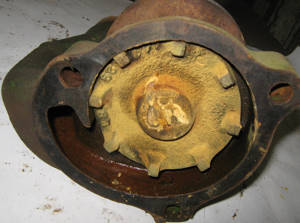

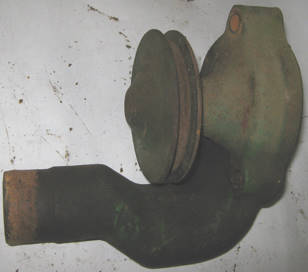

Water pump with A4280R housing and A4298R impeller, no leaks, came from a tractor filled with antifreeze in the cooling system, turns freely as it should, $100

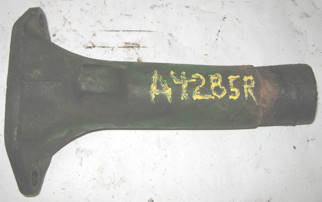

A4285R lower water pipe used with water pump, $30

A3372R #1, radiator bottom tank, $35

-

A3372R, radiator bottom tank, $35, your choice

A2369R Radiator sides, $10 each

A3372R bottom tank, nice, $25

-

AW tag 620394, came from a tractor with a wide front end,tag only $30; tag and case $60

AW tag 599050, $30

AW 618491, came from a tractor with a wide front end, $25

AN serial tag 576089, $25

A serial tag #632116, $20

A serial tag #661471, $20

A serial tag #500372, $20

A serial tag #579544, $20

A serial tag #491371, $20

A2222R Good front frame for A under 584000, $50

Good late pressed steel frame #1. No breaks or repairs, $100 (155 lb)

Good late pressed steel frame #2. No breaks or repairs, $100 (155 lb)

-

Good late pressed steel frame #3. No breaks or repairs, $100 (155 lb)
