Rear wheel, front end, and
steering Parts for John Deere Model 40 Tractors
-

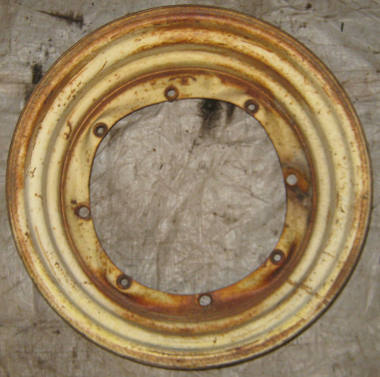

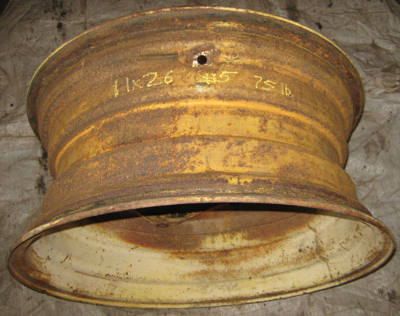

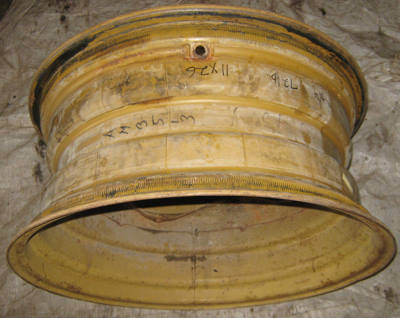

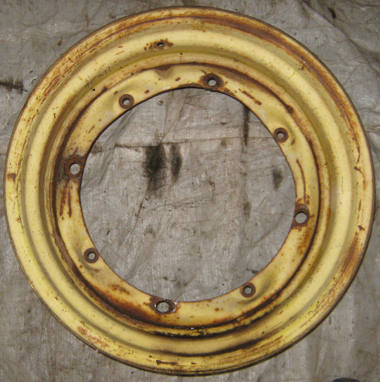

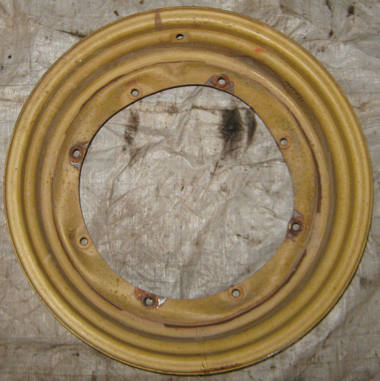

Two 10 x 26 wavy rims, good condition,
good mounting bolt holes. Tires are older and are holding air,
but are weatherchecked. $300 each, with or without the tires (I
can remove the tires to save on shipping cost, The rims only can
ship UPS, but rims with tires would have to be picked up here
or shipped truck freight).
=
-
M3801T Special rim bolt, 9/16 x 2 1/4", $4 each
M374T Nut lock. $2 each
M375T, Special rim nut, $2 each
M343T rear rear weights, $90
per weight, two available, 145 pounds each, can be shipped UPS
If you need a pair of heavy rear
weights, these Wilson--Nutwell JD30 weights will do the job at
250 pounds each. They will fit all waffle rims, $100 for the pair

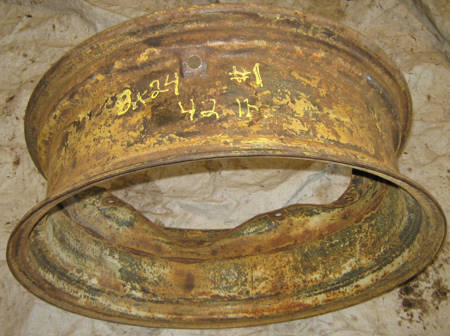

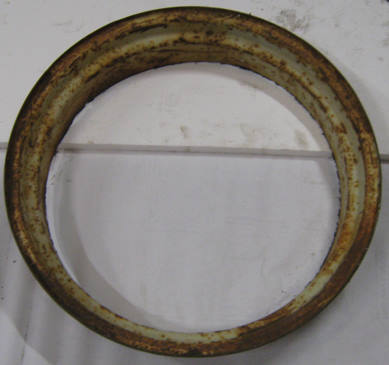

JD3001T 8 x 34 rim #1, correct original equipment for
MT, 40T, 420T,W, 430T,W, excellent condition, $275, can ship UPS
JD3001T 8 x 34 rim #3, correct original equipment for
MT, 40T, 420T,W, 430T,W, excellent condition, $275, can ship UPS
8 x 34 rim #2, correct original equipment for MT, 40T,
420T,W, 430T,W, $60 as-is, note that it is rusted by valve stem
hole and needs repair
M1794T hub clamp for for MT, 40T, 420T,W, 430T,W, $95
Axle key, $5
M3805T(M3808T, M2650T) hub clamp, very good condition,
for MT, 40T, 420T,W, 430T,W, some 1010 rear axles, $95 each, two
available
(T10171T) M2648T Rear hub for MT, 40T, 420T,W, 430T,W,
some 1010 rear axles, $50 each, two available
Steering wheel 17 1/2 inch diameter, $25
-
AM2589T steering shaft fits later 40T, excellent condition
with good threads, $40
-
AM2589T steering shaft fits 40U, V, W, and later S,
excellent condition with good threads, $40
AM2589T steering shaft fits 40U, V, W, and later S,
threads bad on steering wheel end, $10
-
Three views of an very good steering box, complete
with vertical shaft, worm and pins very good, $150, will fit all
MT and 40T up to s.n. 77354
-
AM2724T Steering box, very good, complete with vertical
shaft, worm and pins very good, $150
M844T coupling with pin, $25
M843T upper spindle, $80
Thrust bearing and washer, $15
-
AM1773T (M1796T casting number) front end support (pedestal)
for T, $90
#1 M843T Spindle with M1171T Fork and two M1180T clamps,
$150
-
#2 M843T Spindle with M1171T Fork and two M1180T clamps,
$125
-
Two views of front wheel for MT through 430T, with
M1173T and M1179T halves, note chip in on side of rim, $100
Later style two pn steering box for H, S, T, U, V,
and W, with AM2724T housing, Excellent condition, $150 (G)
-
AM508T Steering box with fair M736T worm gear and very
good bearings, $60
-
Steering gear assembly for many later 40 models (H,
S, T, U, V, and W), with AM2724T housing, excellent condition
with little wear on pins, $225
M2724T steering arm, no breaks or repairs, $35
-
M1611T #1 pedestal, this has a well done repair on
the rear pivot hole, Pivot pin is included (not an original),
$80
M1611T pedestal, rear pivot bracket has a previously
well done repair, $45
-
M2665T (sub. AM3846T, M4152T,
AM2447T), excellent condition, no breaks or repairs, $120
M849T, steering gear support
(sub. AM946T), $25
Front axle pivot pin for 40U,
$15
M1593T pivot pin for earlier
40U, $15
M2666T pivot pin for later 40U,
$20
M1251T steering arm, no breaks or repairs, $70
M1252T steering arm with a well done repair, $25
Eaqrly style (same as Model M) Tie rods with good ends,
tubes are welded in the center, $20 each
Center steering arm, $30
AM1463T spindle, $35
#1 M2164T axle with M2402T knees, for 40U, good needle
bearings in knees, $80
#2 M2164T axle with M2402T knees, for 40U, good needle
bearings in knees, $80
M1460T axle clamp set, $15
M1387T axle clamp pin, $5
AM1278T or M2404T left hand steering arm, no breaks
or repairs, $40
-
M2216T spindle, $40 (G)
Front wheel hub, includes bearings, hub cap sold separately,
$25
Hub cap, $12
-

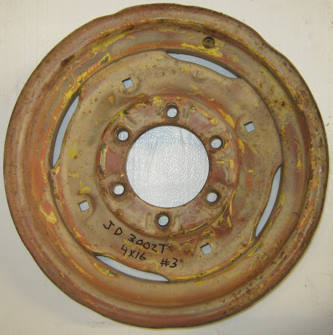

Three views of an original front wheel #5, 4 x 16,
some surface rust, no rust through, $30
-

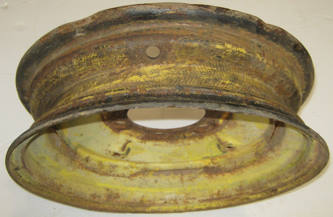

Three views of an original front wheel #7, 4 x 16,
some surface rust, no rust through, $30
-

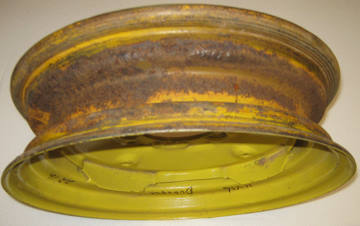

Three views of an original front wheel #8, 4 x 16,
some surface rust, no rust through, $30

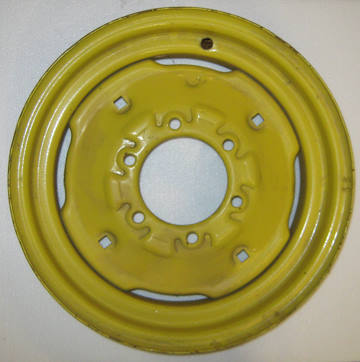

Original front wheel #9, 4 x 16, some surface rust,
no rust through, $30
Original front wheel #10, 4 x 16, some surface rust,
no rust through, $30
11.2-34
-
Both of these 11.2-34 tires are free, both held air
when removed, but are in poor condition.
Sonic 11.2-34, has a good boot at the indicated cut,
will hold air and be usable for moving a tractor around, includes
tube, $25
-
11.2-34, has good tread, one small tear at sidewall
that does not go through, includes tube, $50
11.2-24
Firestone 10-24 (11.2-24), sound condition, 20% on
bars, $25
Goodyear 11.2/10-24, sound condition, $50
12.4-24
-
Powermark 12.4-24 Very good condition, with tube, $135
-
Goodyear 12.4-24, 70% tread, slight wetherchecking,
with tube, $60
