Allis-Chalmers Model B and C Parts

This page contains engine parts

These parts are from both Allis Chalmers B and C tractors. Many are interchangeable, but some are specific to on or the other. If you are unsure, ask and I will verify if it will fit your tractor.

=

-

Marvel Schebler TSX305 carburetor, correct original equipment for B or C, this carb has been disassembled, thoroughly cleaned and checked, then reassembled with a new gasket. It is ready to bolt on to your tractor and go to work!, $180

-

-

Marvel Schebler TSX154 carburetor, correct original equipment for B or C, this carb has been disassembled, thoroughly cleaned and checked, then reassembled with a new gasket. It is ready to bolt on to your tractor and go to work!, $180

-

-

Zenith carburetor (Tag stamped 225621 and 11141A) from a CA, this carb has been disassembled, thoroughly cleaned and checked, then reassembled with a new gasket. It is ready to bolt on to your tractor and go to work!, $180

About 25 pounds of bolts, nuts, washers, and miscellaneous parts for AC B and C, $20 plus $15 shipping in a flat rate box

-

-

-

AM2916-10 block with cranshaft, main bearings, camshaft, lifters, sleeves, pistons, connecting rods, oil pump, and crankshaft pulley. The only problem noted is the comonly found cracks on top of the block and between the sleeves. These can be sealed with a good sealant on the head gasket, but I have discounted the price of individual parts to include the block at no charge, the block is as-is. Due to weight, the block must either be picked up here or I can give you a quote on truck freight shipping. $450

-

Standard bore 3 3/8" sleeves, $30 each or $90 for set of four

3 3/8" flat top aluminum pistons with good used rings, $25 each, three available (Buy all three for $50)

Set of 3 3/8 standard aluminum pistons, $30 each or set of four $90

-

Set of four sleeves matched to the above set of pistons, $30 each or $90 set of four

3 3/8 " concave top piston, $15 each, one available



Connecting rod, casting # 207459, with end cap, $25 each

Piston pin. $4

Manifold #2, no breaks or repairs, $95 (From a CA)

Manifold #2, no breaks or repairs, $95 (From a B)

Set of manifold studs and nuts, $9



Muffler, free with any order

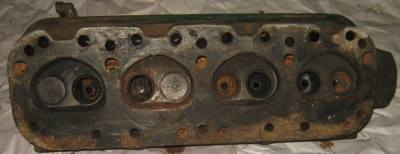

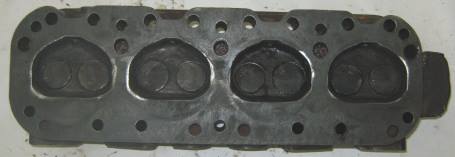

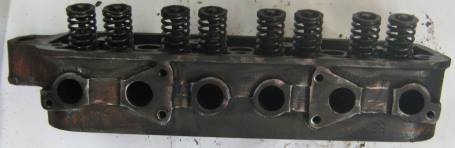

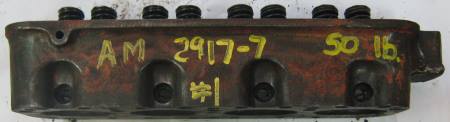

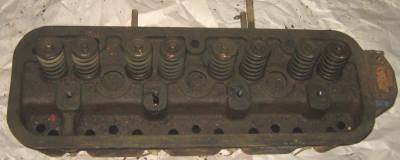

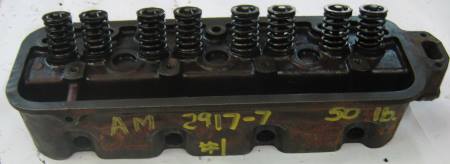

AM2917-7 casting number fron an early B; Head with good valves, guides, and seats, The bottom of the front end where the water pipe bolts onto has a well done brazed repair as shown in the last photo. $80, (50 lb shipping weight)



AM2917-15 casting number; Head with no breaks or repairs, good valves, guides, and seats, $120, very good condition, the best of the bunch (50 lb shipping weight)

AM2917T casting number; Head that needs valves and grinding, $25 (50 lb shipping weight)

AM2917T casting number; Good head that needs valves reground, $50 (50 lb shipping weight)

Head bolts, $1 each

Valve cover studs, includes the one that is grooved for oil flow, Set of two, $12

Camshaft 206973 with Cam gear AM2326-5, excellent condition, $90

Complete rocker assembly, excellent condition, $100

Tappet lever, $9 each

Tappet lever shaft, $9

Post for tappet lever shaft, $16 each

Spring for tappet lever shaft, $5 each

Washer for tappet lever shaft, $1 each

Valve lifters, $4each

Pushrods, 9 13/16 inch overall length, $9 each, eight available

- -

Original Hand crank, $25, your choice

Shop built hand crank, works great!, $15

Crankshaft pully AM2824 - 9, $45, no breaks or repairs

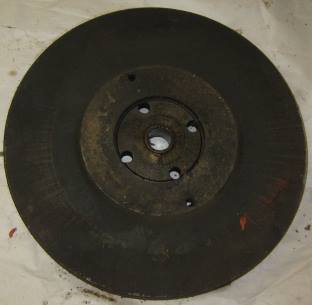

Flywheel without a ring gear, $20 (can ship flat rate box)

Housing for rear engine seal, $10

Internal governor assembly for B or C, minimal play in weight pins, $60

Internal governor assembly for CA, minimal play in weight pins, $60

Governor housing and distributor mount for CA, $20

Arm from CA, $10



Internal governor assembly for B and C, gear is good, but there is a lot of play in the pins for the weights, $30

New governor weight and pin, $25

Earlier style governor link to carburetor, $15, your choice

Governor link to carburetor, $12

Long throttle rod from a B, $16



Throttle rod, $15

Ratchet plate and throttle rod, $20

Ratchet plate for throttle, $10

Throttle lever, $14

- -

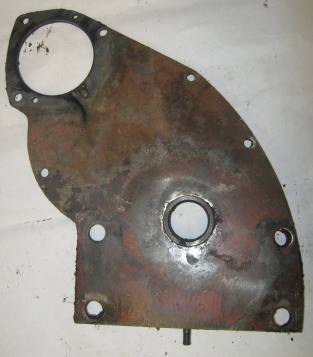

Front engine cover, $15, your choice

Oil pan, no dents, no rust, $20

Pressed steel Oil pan, $12

-

Oil pump, tested, good condition, $45


Pipe for oil pick up tube, $3

Oil pick up screen, $25

Brass tee at head, $10

Oil filter base with filter, $25

Oil filter base with AC oil filter and AC oil pressure gauge (glass is cloudy). $25

Oil filter base with oil line, $25

Oil line at oil filter base, $5

Oil line with special brass tee, $15

Oil pipe to head, $7
Tee $7

Valve cover, four bolt holes, $20



Painted valve cover, two bolt holes, $20

-

Nice breather cap, $15 your choice

This breather cap is free with any order

Oil dipstick, $6

Oil line (short, small diameter), $5



-

AM3785 fitting with oil line, $10



-



Very good radiator, no leaks, $90

-

Fan hub and pulley, adjustable, $16, your choice

Used fan belt in good condition, $4

Sealing plate for water pump, new, $12.50


- -

Water pump. turns freely, $15, your choice

Powder coated fan, $12.50

Fan similar to the one shown above, $10

Water pipe, $15

Nearly new temperature gauge, $20

Temperature gauge, free with any order

Set Screw and jam nut for starter, $12

211321 Cable guard, $10

Instruction for Fairbanks Morse type J magneto, Free via email

Voltage regulator, $5

Delco 1101413 generator, for AC B or C, turn freely not tested, $75

Generator bracket, $10

The following parts are for B, C, and CA equipped with distributor:

-

Distributor in good condition (rotor arm is broken) $40

New point set, $8

New dust cap, $8

DR426 dust cap, $8

6 volt coil, $5
