Transmission, brake, final
drive Parts John Deere Model 1010
More parts coming soon! In the meantime, please ask
about specific parts you need!

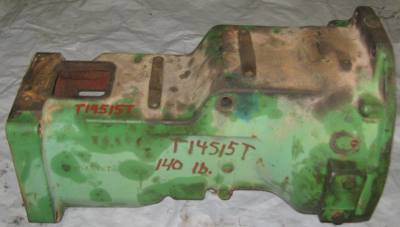

T14515R Torque tube, $90

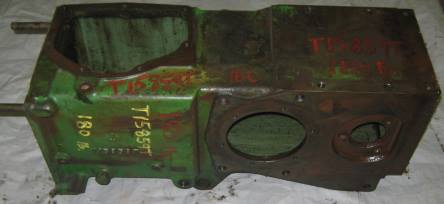

TT15859T Transmission case, $90
AT14612T Clutch driven disk, $30
AT11661T Clutch pressure plate, $45
T14517T Clutch pedal, $20
T15946T Cover. $15
T14514T Carrier with AT17464T Throw out bearing, $40
T15440T Yoke, $25
T14518T Clutch pedal shaft, $14
T14523T Clutch pedal lever with two T14521T links,
$20
AM320T Cam, $15
T14519T spring, $20
M226T spring, $7
T14526T Drive shaft, $50, all splines and bearing surfaces
in good condition, includes spring at one end of shaft
T14936T Drive tube with T14420T Hydraulic pump drive
gear (22T)and T15724T Powershaft clutch drive gear (19T), $125
AT14630T Outer transmission driveshaft tube. $65
T16661T Shift lever, $30
T17067T Shift Guide, $15
T14557T Mounting bracket and T14558T Cap, $30
-
T145651T Transmission cover with all forks and rail
in very good condition, $60
T15996T Quill wqith good bearing $20
T14564T cover with shims, $15
Special thrust washer, $10
Input shaft, $75
Gears on input shaft:
T12001T 27T and 37T gear, $120
M4197T 27T gear, $45
M4271T 19T gear, $40
M4270T 16T gear, 40
T10776T gear on power shaft, 190T, 26T, 43T, includes
roller bearings, $225
T15926T Powershaft used with dual 540-1000 rpm pto,
$60
T17608T Gear, Third and fourth speed driven, 32T and
35T, $135
M4202T gear, 24T on pinion shaft, $40
M4209T Gear, second and reverse sliding, 31T and 38T,
$135
T18450T Output pinion shaft, 7T, with bearings, nut,
and washer, $75
Differential, 32T on ring gear, $60
Note that this differential gear is matched to the above pinion
shaft
M1711T quill, $10 each, several available

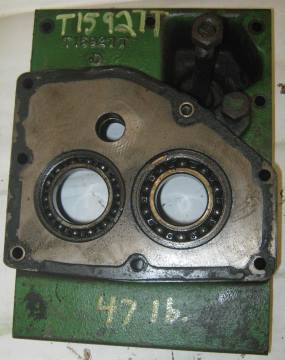

T15927T Rear transmission cover with JD7692 and JD8568
bearings, $80

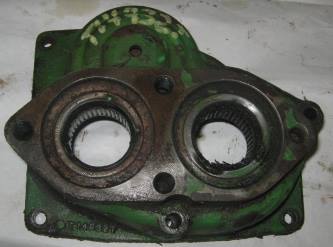

T14932T Gear housing with needle bearings, $80
T13511T Powershaft idler gear (21T), $50
T14934T Special thrust washer, $12
AT13303T Drive shaft, $50
T18195T coupling, $10
T13512T Powershafat driven gear, 28T, $60
T17878T Power shaft for 540 rpm pto, $35
T14912T (M4812T Powershaft guard, $25
Threee views of AT10112T Complete pto cluch assembly,
Very good condition, $295
T14567T Powershaft clutch housing cover, $20
T14568T Posershaft clutch housing, $50
T14569T Pto clutch yoke and shaft, $30
T14909T Lever and shaft, $20
T14527T Cover, $15
T14530T lever, $25
AT17244T Powershaft shift lever with T15977T support
and associated parts
AT14186T control rod, $20
BRAKES:
M3229T brake pedal, bent, $5
M3230T brake pedal, $20
M2228T Brake return springs, may not be original, both
for $7
M3233T Brake shaft and M1735T lever, $20
M1781T brake housing, $15 each
AM1828T Brake disk with facings, $10 each
AM3098T Brake assembly, $75
M949T Special nut for brake adjustment, $10
M830T 7/8 inch diameter steel ball, $3
M2036T spring< $5 each
M1756T lever and yoke3, with associated parts, $20
Brake lock assembly, $15
-
T10919T Final drive housing, $75 each, both sides available
Bull gear assembly AM4008T (M3125T and M4439T, 64 teeth),
$45
M3807T rear axle, $75 each; two available
M2369T retainer with bolts and locking plate, $10
M3132T and M3133T rear cover for final drive housings,
$25 each
